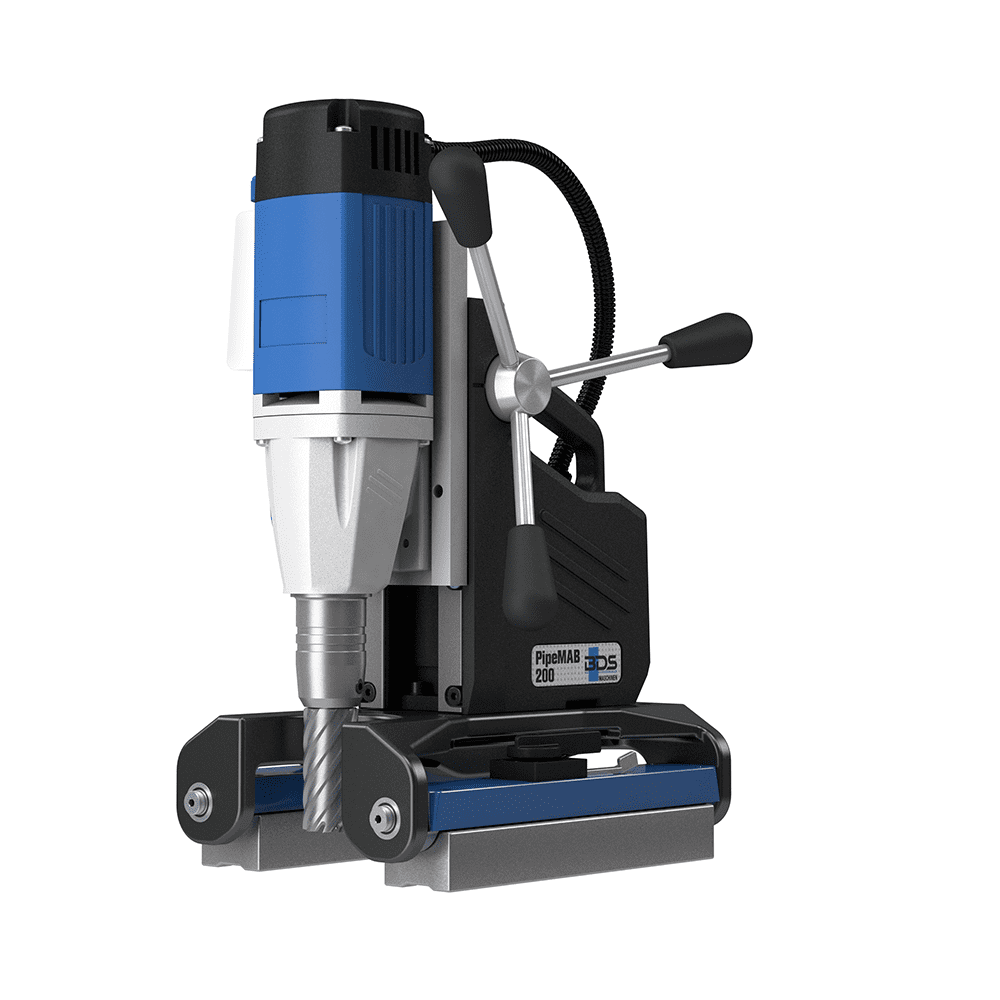

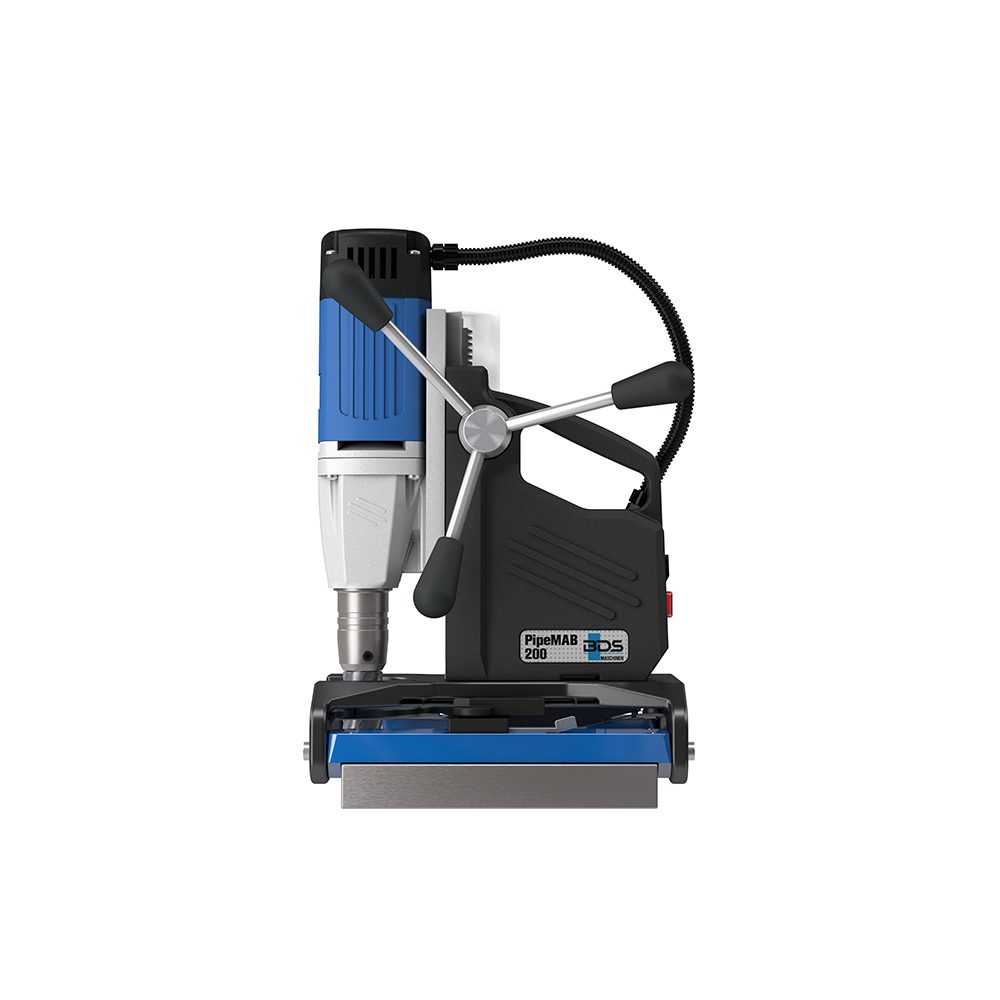

PipeMAB 200
- Magnetic Drill for Pipes
- Cutter Capacity: 1-3/8″ Diameter
- Twist Drill Capacity: 1/2″ Diameter
- Stroke: 6-1/3″
- Patented Permanent Magnet System
- Our PipeMAB can drill on pipe 3” (85mm) OD and larger
- Other Sizes Available: PipeMAB 525 | PipeMAB 825
Includes (testing):
- PipeMAB 200
- Extended 3/4″ Weldon shank
- Carrying case
- Safety Strap
- Gravity lubrication bottle
- 1″ Pilot Pin
- Allen key
- Operating manual
- Warranty certificate
Benefits
- Safe, stable operation on pipe diameters from small to large, eliminating the need for chain clamps or complex fixturing. Highly stable, permament magnet stays active independent of electricity.
- Strong magnets adhere to material as thin as 9/64" (3 mm).
- Elongated Tool Holder for maximum utilization of pipe drilling machine stroke
- 2 magnet system allows the magnetic drill to swing away for clearing debris and hole inspection, improving accuracy and safety compared to manual drilling or improvised pipe mounting methods.
- At only 35lbs and with a patented swing arm system the Pipemab 200 can be moved and adjusted with ease. Lightweight and portable design makes it ideal for field work, elevated positions, and confined spaces.
Applications & Usage

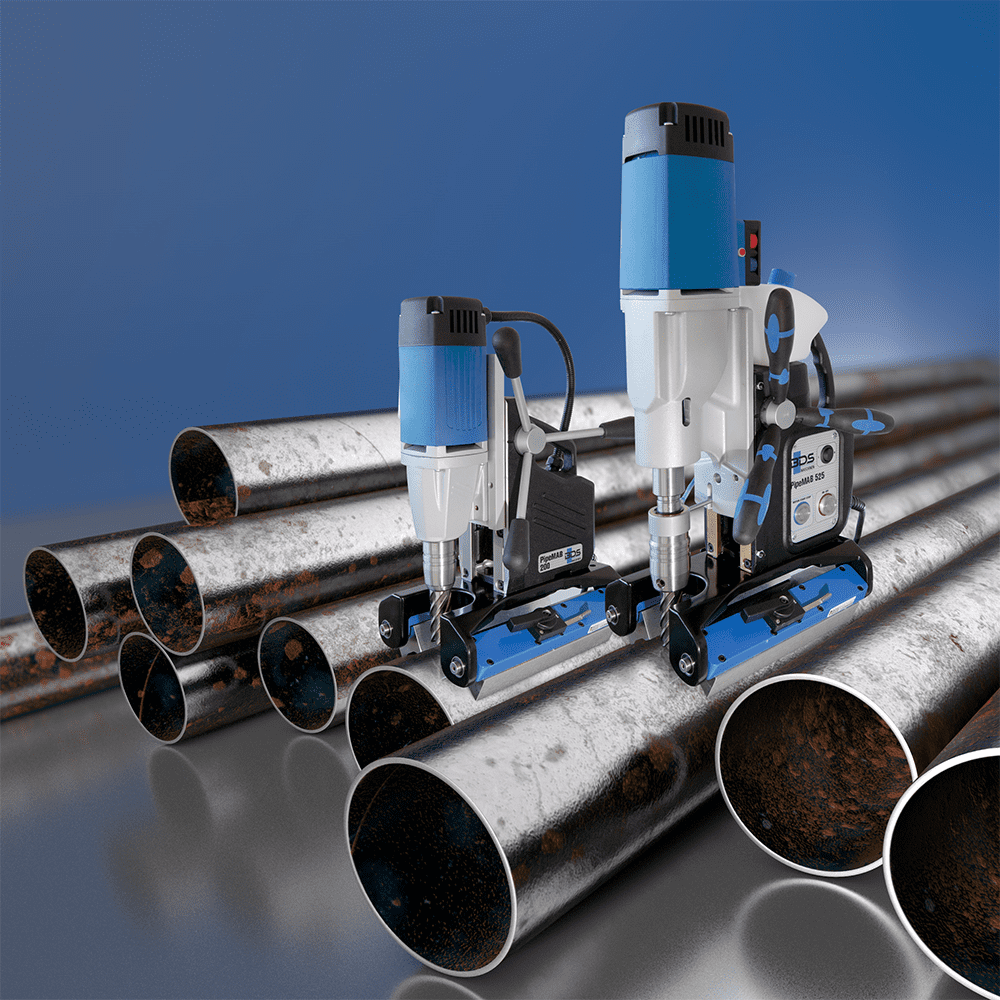

- PipeMAB 200 can be used for drilling holes in steel pipe for valves, flanges, brackets, and instrumentation.
- Equipped with a patented swivel magnetic clamping system, PipeMABs are designed specifically for pipe drilling, with a magnetic base that securely adheres to curved, round, and uneven surfaces.
- Ideal for oil, gas, water, and industrial pipeline installation and repair.
- Safe, stable drilling on curved pipe surfaces in refineries, chemical plants, and processing facilities.
- PipeMAB 200 ideal for drilling mounting holes for pipe supports, hangers, sensors, and mechanical systems.
- Suitable for chilled water lines, steam lines, and industrial piping networks.
- Drilling on marine piping systems, tubular structures, and curved steel surfaces.
Technical Specifications
| PipeMAB 200 | |
|---|---|
| Motor Power | 8.2 Amp/110 Volt* |
| Weight | 35 lbs. |
| Stroke | 6-1/3" (3-1/3" with geared chuck) |
| Hole Capacity | 1-3/8" dia. |
| Twist Drill Capacity | 1/2" dia. |
| Speed | 450 RPM |
| Magnet Base Size | 10.5" L x 7.5" W x 3.5" H |
| Dimensions | 13.75" H x 10.5" L x 7.5" W |
| Magnetic Force (3/4"Plate) | 2250 lbs. |
| Arbor Bore | 3/4" Weldon Shank |
| Pipe Magnet System Equipped | Yes |
| Automatic Lubrication | Included |
| *220 V model also available | |
Optional Accessories
Optional
Optional
Optional
OptionalConnection: 3 flats x 3/4" arbor • Size: 2 1/8" length, 1/2" shank
$0.00
In stock
Optional
OptionalRelated PDFs
Catalog PDF
FLY_PipeMAB200525
Download PDF

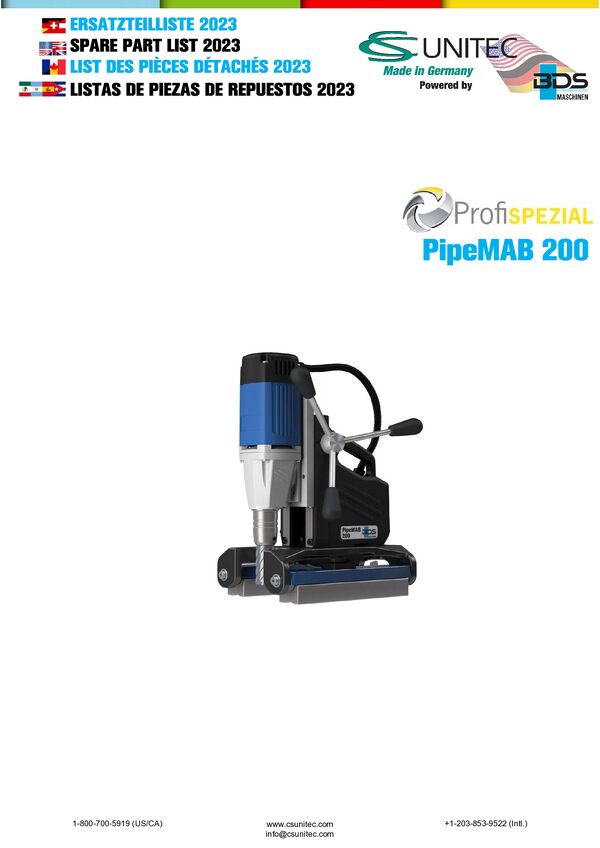

Product Schematic
SCHEM_PipeMAB200
Download PDF
Usage
- PipeMAB 200 can be used for drilling holes in steel pipe for valves, flanges, brackets, and instrumentation.
- Equipped with a patented swivel magnetic clamping system, PipeMABs are designed specifically for pipe drilling, with a magnetic base that securely adheres to curved, round, and uneven surfaces.
- Ideal for oil, gas, water, and industrial pipeline installation and repair.
- Safe, stable drilling on curved pipe surfaces in refineries, chemical plants, and processing facilities.
- PipeMAB 200 ideal for drilling mounting holes for pipe supports, hangers, sensors, and mechanical systems.
- Suitable for chilled water lines, steam lines, and industrial piping networks.
- Drilling on marine piping systems, tubular structures, and curved steel surfaces.
Benefits
- Safe, stable operation on pipe diameters from small to large, eliminating the need for chain clamps or complex fixturing. Highly stable, permament magnet stays active independent of electricity.
- Strong magnets adhere to material as thin as 9/64" (3 mm).
- Elongated Tool Holder for maximum utilization of pipe drilling machine stroke
- 2 magnet system allows the magnetic drill to swing away for clearing debris and hole inspection, improving accuracy and safety compared to manual drilling or improvised pipe mounting methods.
- At only 35lbs and with a patented swing arm system the Pipemab 200 can be moved and adjusted with ease. Lightweight and portable design makes it ideal for field work, elevated positions, and confined spaces.
Usage
- PipeMAB 200 can be used for drilling holes in steel pipe for valves, flanges, brackets, and instrumentation.
- Equipped with a patented swivel magnetic clamping system, PipeMABs are designed specifically for pipe drilling, with a magnetic base that securely adheres to curved, round, and uneven surfaces.
- Ideal for oil, gas, water, and industrial pipeline installation and repair.
- Safe, stable drilling on curved pipe surfaces in refineries, chemical plants, and processing facilities.
- PipeMAB 200 ideal for drilling mounting holes for pipe supports, hangers, sensors, and mechanical systems.
- Suitable for chilled water lines, steam lines, and industrial piping networks.
- Drilling on marine piping systems, tubular structures, and curved steel surfaces.
Benefits
- Safe, stable operation on pipe diameters from small to large, eliminating the need for chain clamps or complex fixturing. Highly stable, permament magnet stays active independent of electricity.
- Strong magnets adhere to material as thin as 9/64" (3 mm).
- Elongated Tool Holder for maximum utilization of pipe drilling machine stroke
- 2 magnet system allows the magnetic drill to swing away for clearing debris and hole inspection, improving accuracy and safety compared to manual drilling or improvised pipe mounting methods.
- At only 35lbs and with a patented swing arm system the Pipemab 200 can be moved and adjusted with ease. Lightweight and portable design makes it ideal for field work, elevated positions, and confined spaces.
