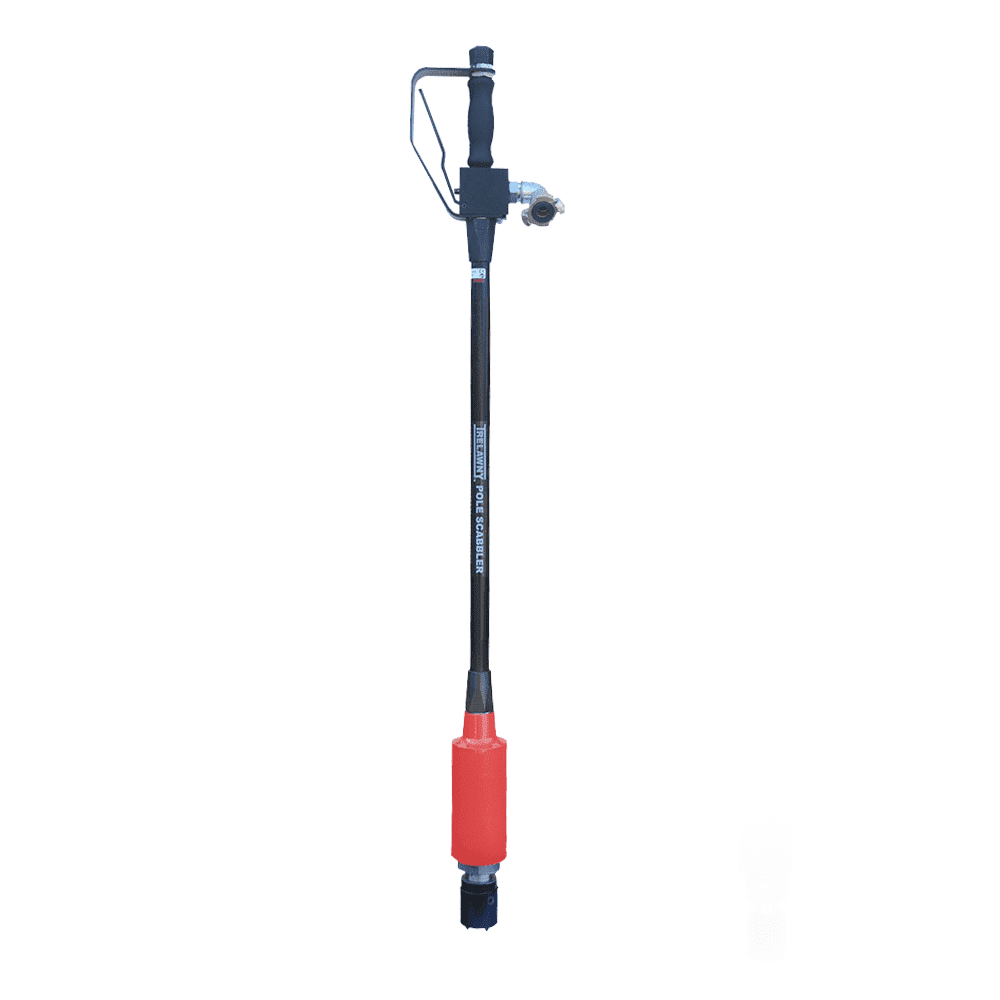

Concrete Pole Scabblers
- Production Rate: 130 sq. ft./hr.
- Blows per Minute: Up to 1300
- Vibration Levels: Up to 35 m/s2
- Motor Power: 25 CFM (90 PSI)
- Optional Vibro-Lo™ / Low Vibration Available

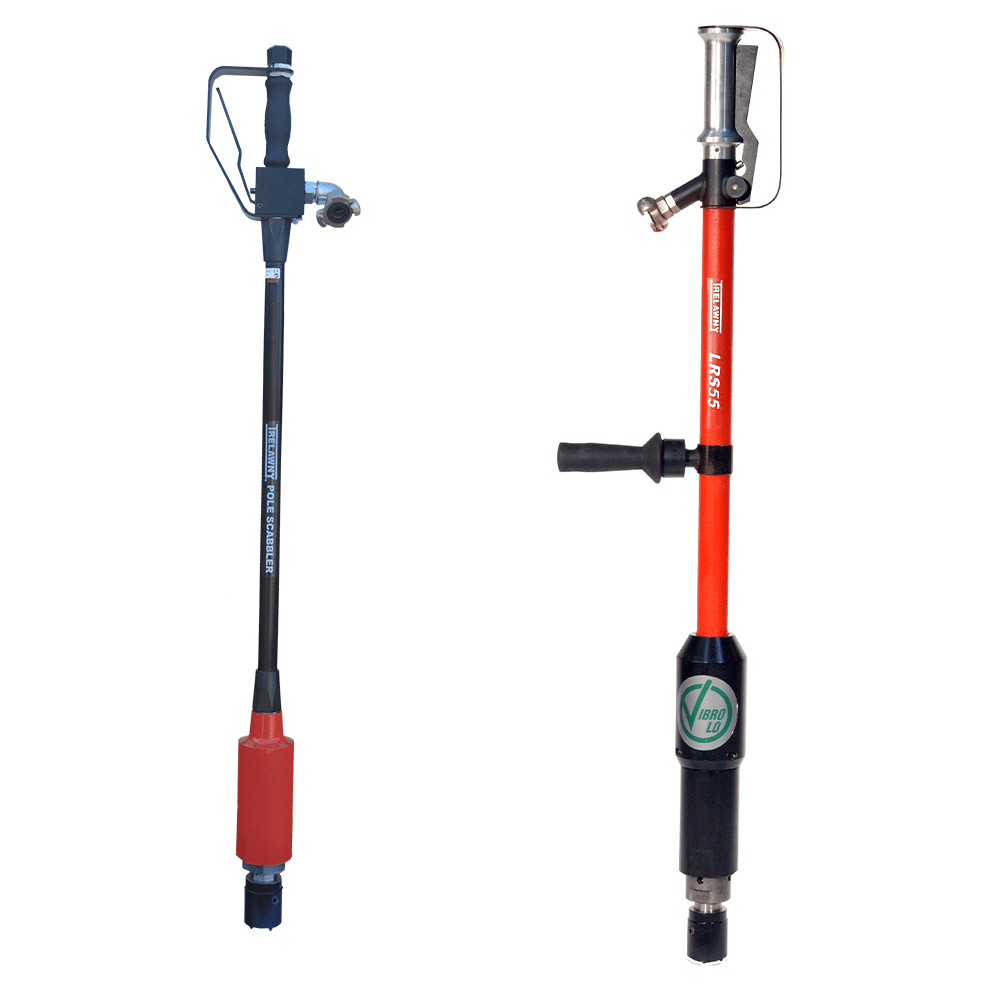

- Vibro-Lo or Standard Pole Scabbler with 5 or 9 point Scabbler Head
Benefits
- Both pole scabblers deliver high impact performance, 1100 BPM on the LPS55 and 1300 BPM on the VL LRS55, to quickly remove concrete or create deep, consistent keying without damaging the substrate.
- Their long reach handles (4.5 ft. on the LPS55 and 50" on the VL LRS55) allow operators to access tight, vertical, or obstructed areas while maintaining safe working posture.
- Each model includes an angled air inlet that directs the hose away from the operator to reduce interference and improve maneuverability.
- Integrated hand guards protect the user during close quarters work and enhance overall jobsite safety.
- Both tools can be converted into tampers using optional interchangeable heads, increasing versatility for concrete repair and compaction tasks.
- The LPS55 provides powerful scabbling performance for demanding applications, while the Vibro‑Lo™ VL LRS55 incorporates advanced vibration damping technology that reduces hand arm vibration by up to 8x, significantly improving operator comfort and extending allowable working time.
- The VL LRS55’s vibration reduction system offsets hammer impact forces for smoother operation, making it ideal for long duration tasks or crews with strict HAVS exposure requirements.
Applications & Usage

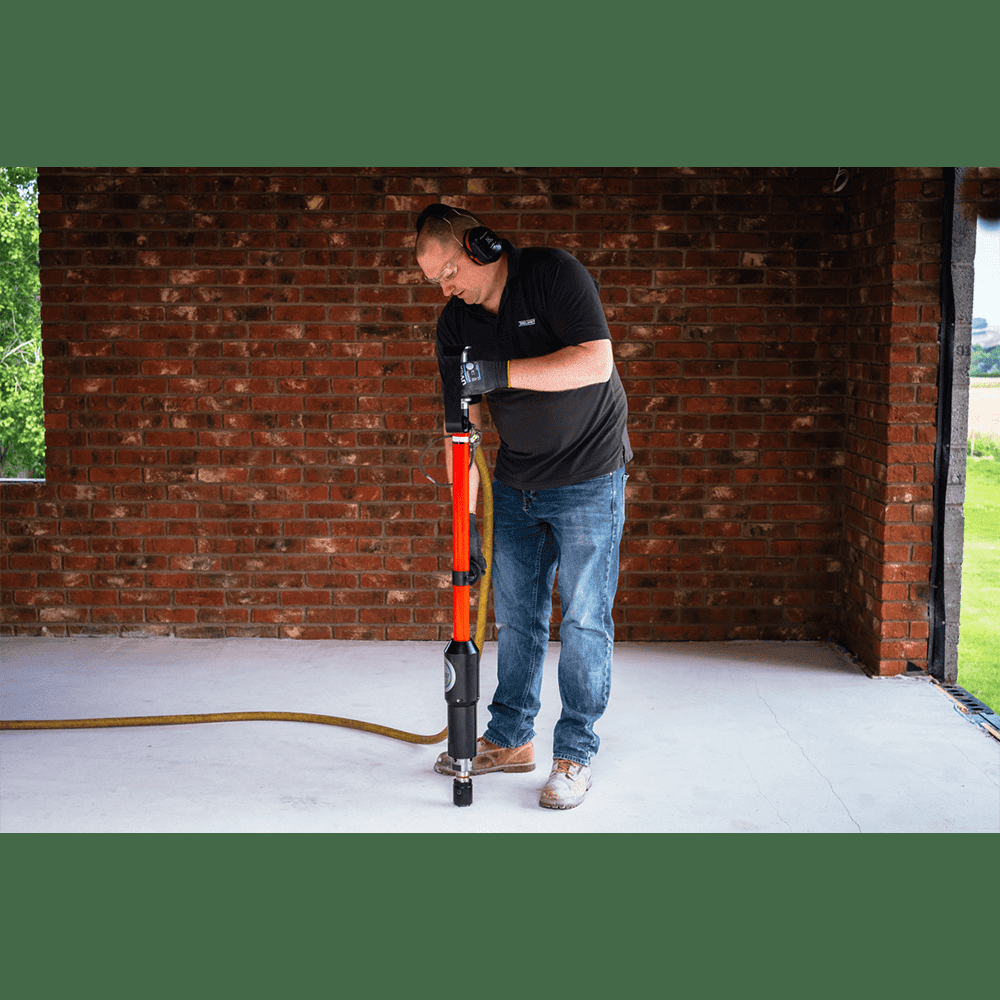

- The long‑reach Pole Concrete Scabbler provides heavy scabbling power for hard to access areas such as underneath reinforcement bars, between rebar grids, and along congested structural elements.
- Prepare corners, edges, joints, and areas close to walls by delivering controlled impact energy without damaging the surrounding substrate.
- Remove laitance, contamination, and weak surface layers to expose a clean, durable concrete profile ready for repair materials, coatings, or overlays.
- Aggressively key concrete surfaces to create strong mechanical bonding for patching, resurfacing, and structural repair applications.
- Pole Concrete Scabbler delivers fast material removal for spot repairs, vertical surface prep, and localized demolition tasks where larger machines cannot reach.
- Perform crack cutting and targeted surface reduction for concrete repair work, including restoration of deteriorated or spalled areas.
- Extended reach design allows operators to safely prepare vertical surfaces, overhead areas, and confined spaces without ladders or awkward positioning.
Technical Specifications
Standard Pole Scabbler

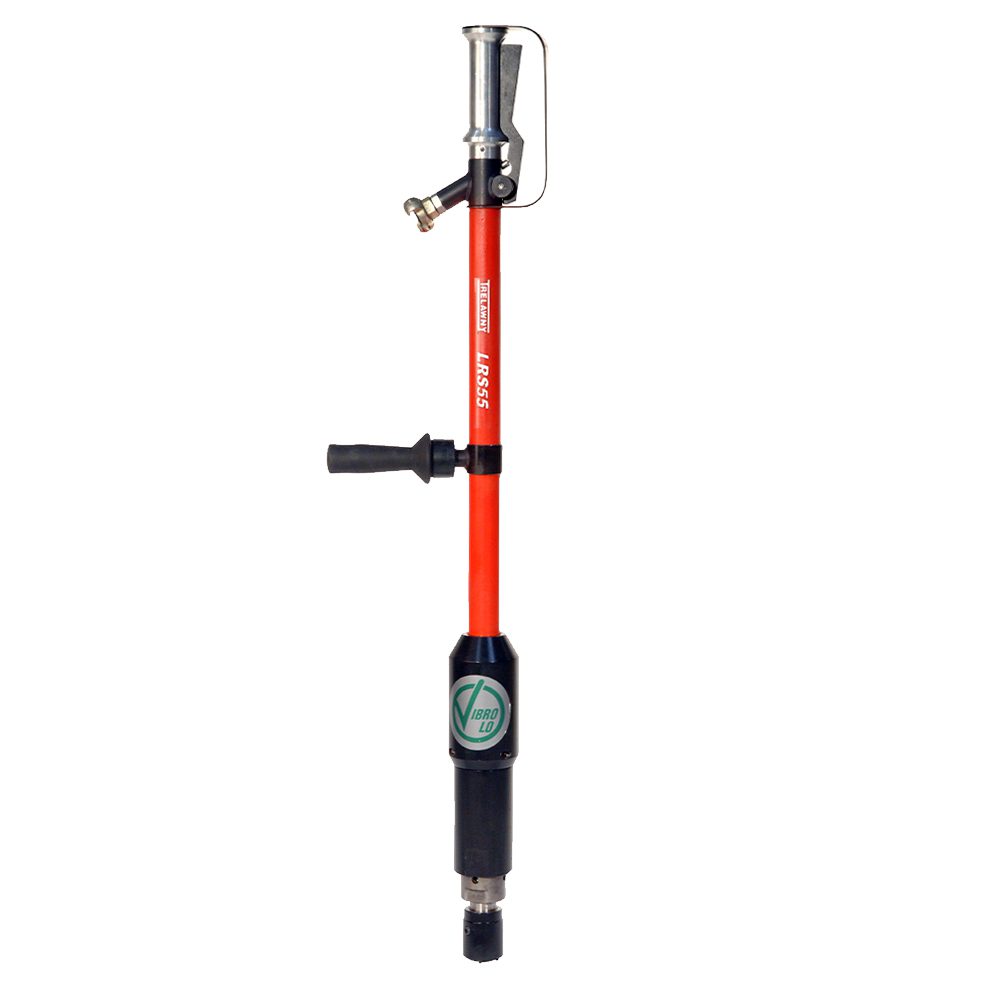

Vibro-Lo Pole Scabbler
| Length – 55" Blows per minute – 1100 Air consumption – 24.6 CFM @ 90 PSI Production rate – 130 sq. ft./hour Cutter life – 12,000 sq. ft. | |||
| Model No. | Description | Weight (lbs.) | Vibration Level (Aeq m/s2) |
|---|---|---|---|
| 150.5001 | LPS55 with 5-point Scabbler Head | 29.5 | 35.0 |
| 150.5002 | LPS55 with 9-point Scabbler Head | 29.5 | 35.0 |
| Length – 50" Blows per minute – 1300 Air consumption – 25 CFM @ 90 PSI Production rate – 130 sq. ft./hour Cutter life – 12,000 sq. ft. | |||
| Model No. | Description | Weight (lbs.) | Vibration Level (Aeq m/s2) |
|---|---|---|---|
| 150.5320 | VL LRS55 with 5-point Scabbler Head | 47.5 | 4.2 |
| 150.5321 | VL LRS55 with 9-point Scabbler Head | 47.5 | 4.2 |
Optional Accessories
Optional
OptionalFor Scabbler: 5 head & pole scabblers • Product: 5 point bush hammer head
$0.00
In stock
OptionalFor Scabbler: 5 head & pole scabblers • Product: 9 point bush hammer head
$0.00
In stock
Optional
OptionalProduct: Standard air tool oil • Size Quantity: 1 qt
$0.00
In stock
Related PDFs

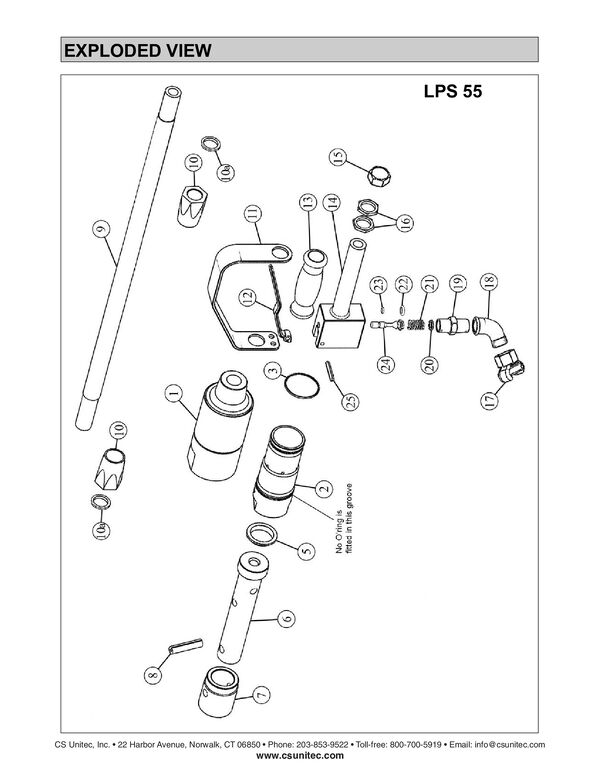

Product Schematic 1
SCHEM_LPS55
Download PDF

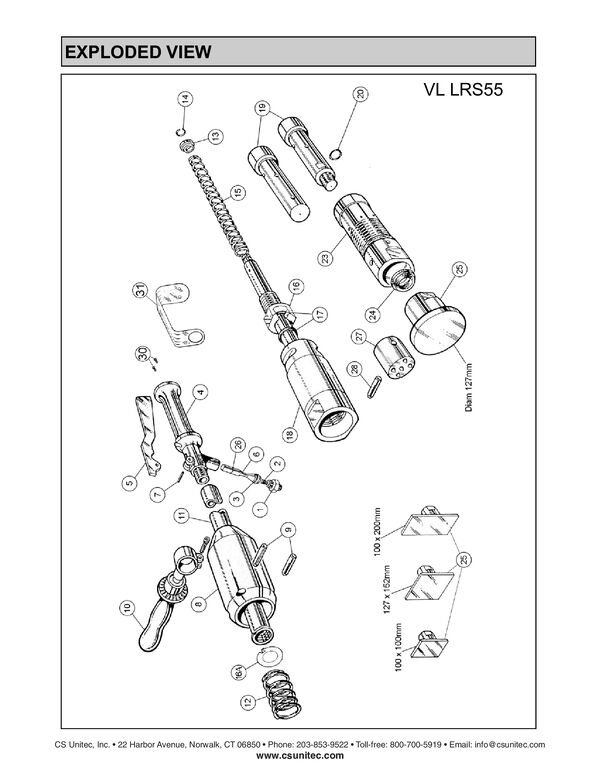

Product Schematic 2
SCHEM_VLLRS55
Download PDF

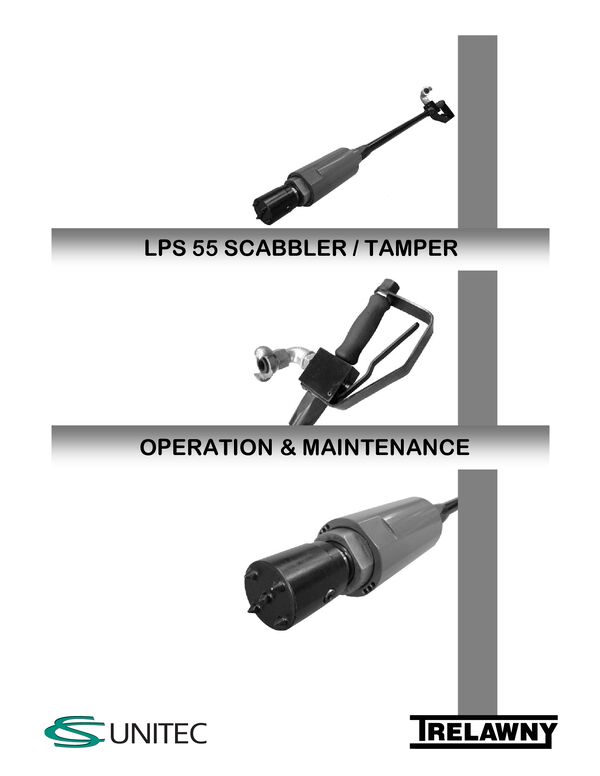

Operating Manual 1
MANUAL_LPS55
Download PDF

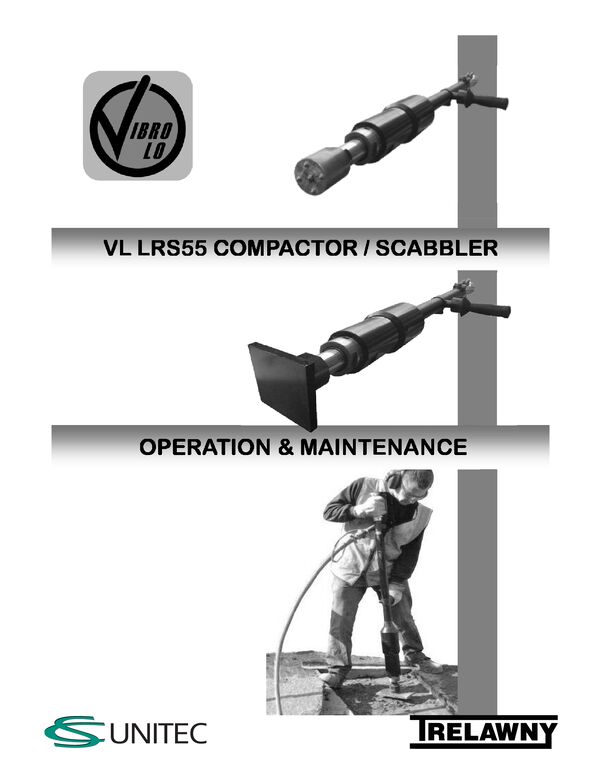

Operating Manual 2
MANUAL_VLLRS55
Download PDF
