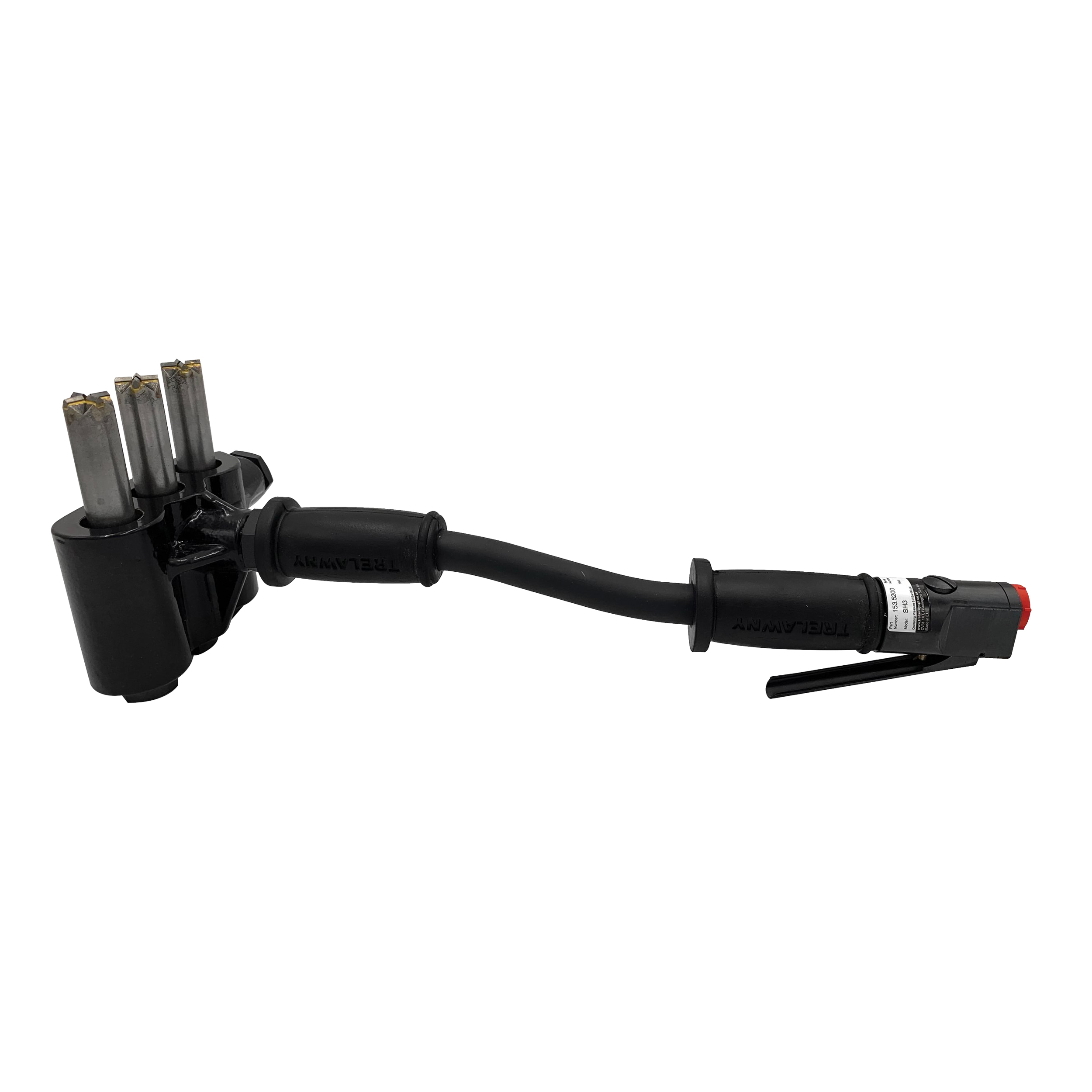

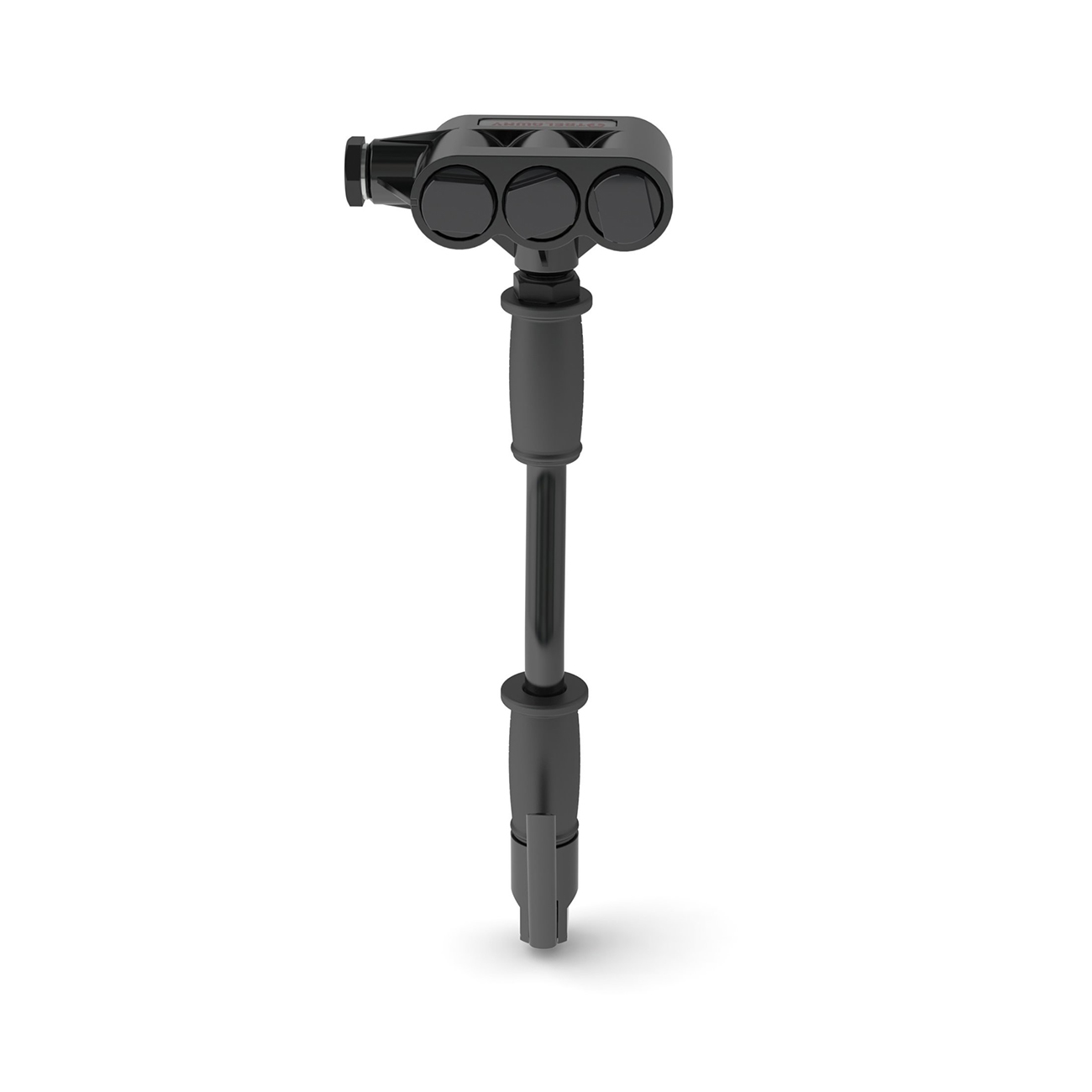

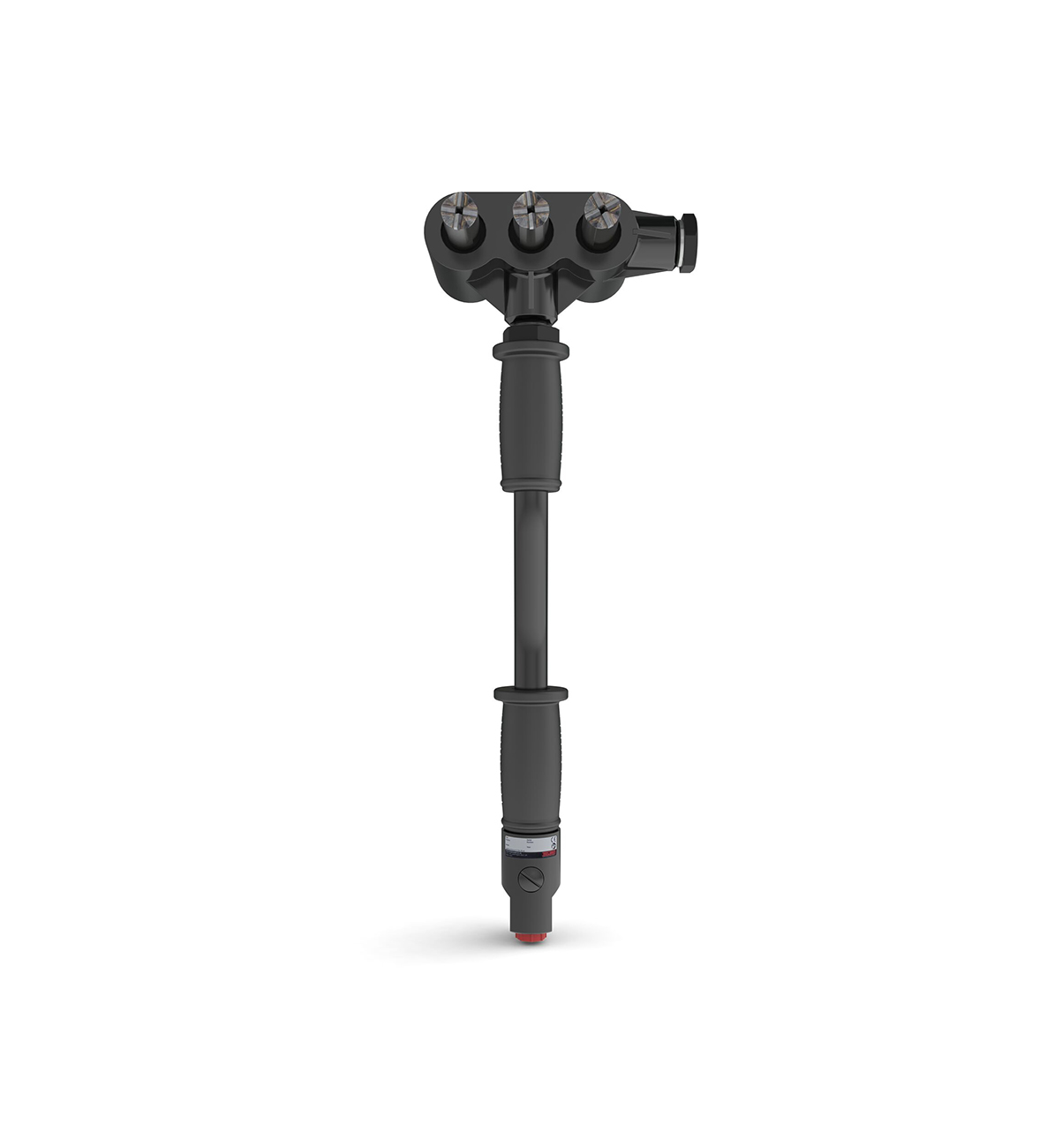

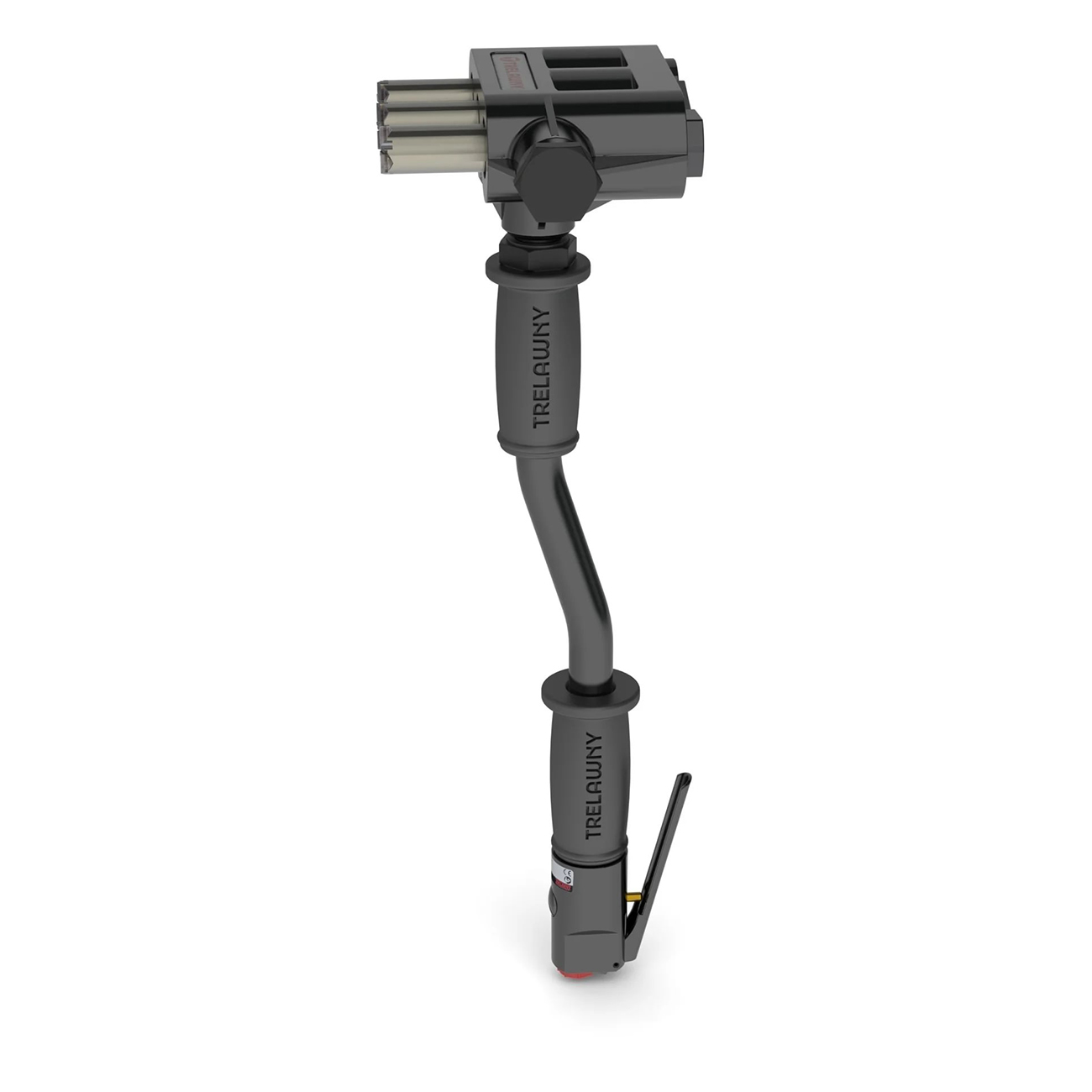

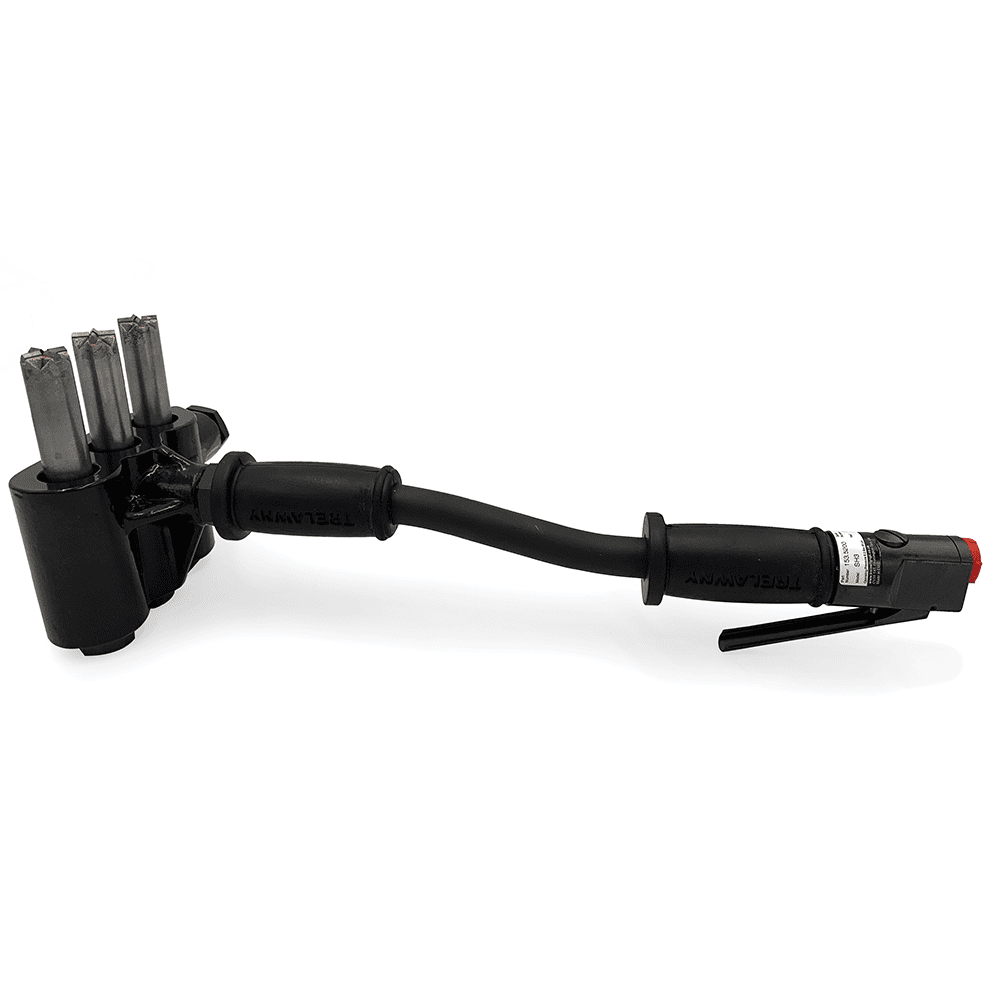

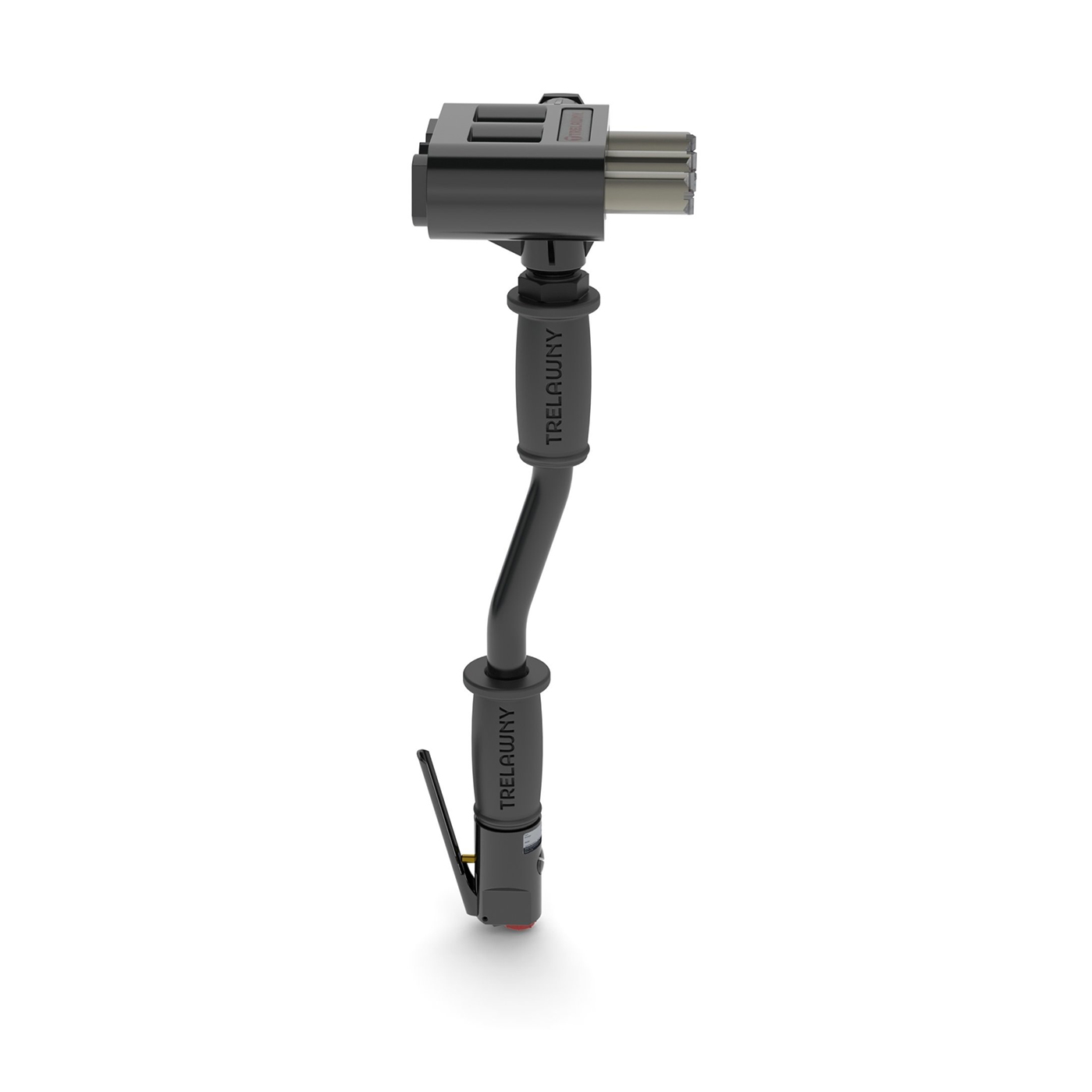

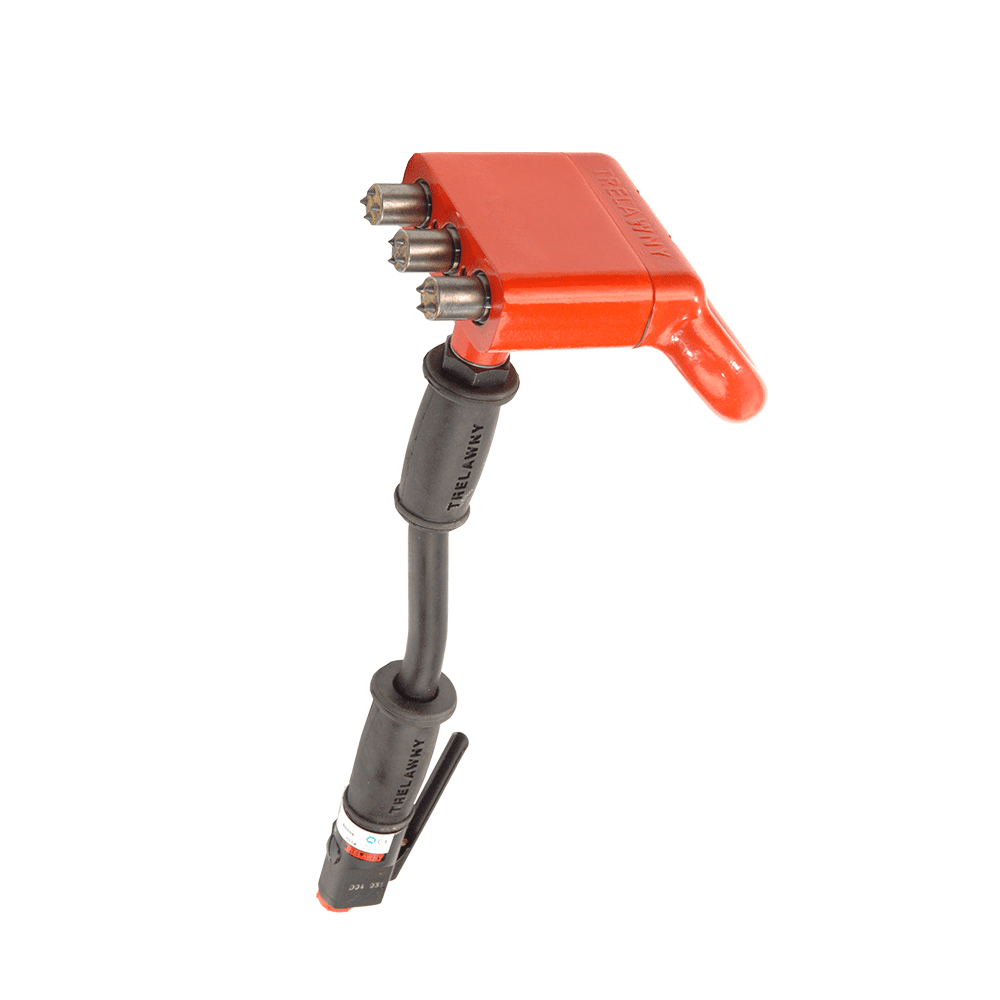

Triple-Head Pneumatic Scabbling Hammer Heavy-Duty
- Production Rate: 100 sq. ft./hr.
- Blows per Minute: 7200
- Vibration Levels: 8.7 m/s2
- Motor Power: 15.9 CFM (90 PSI)
Includes (testing):

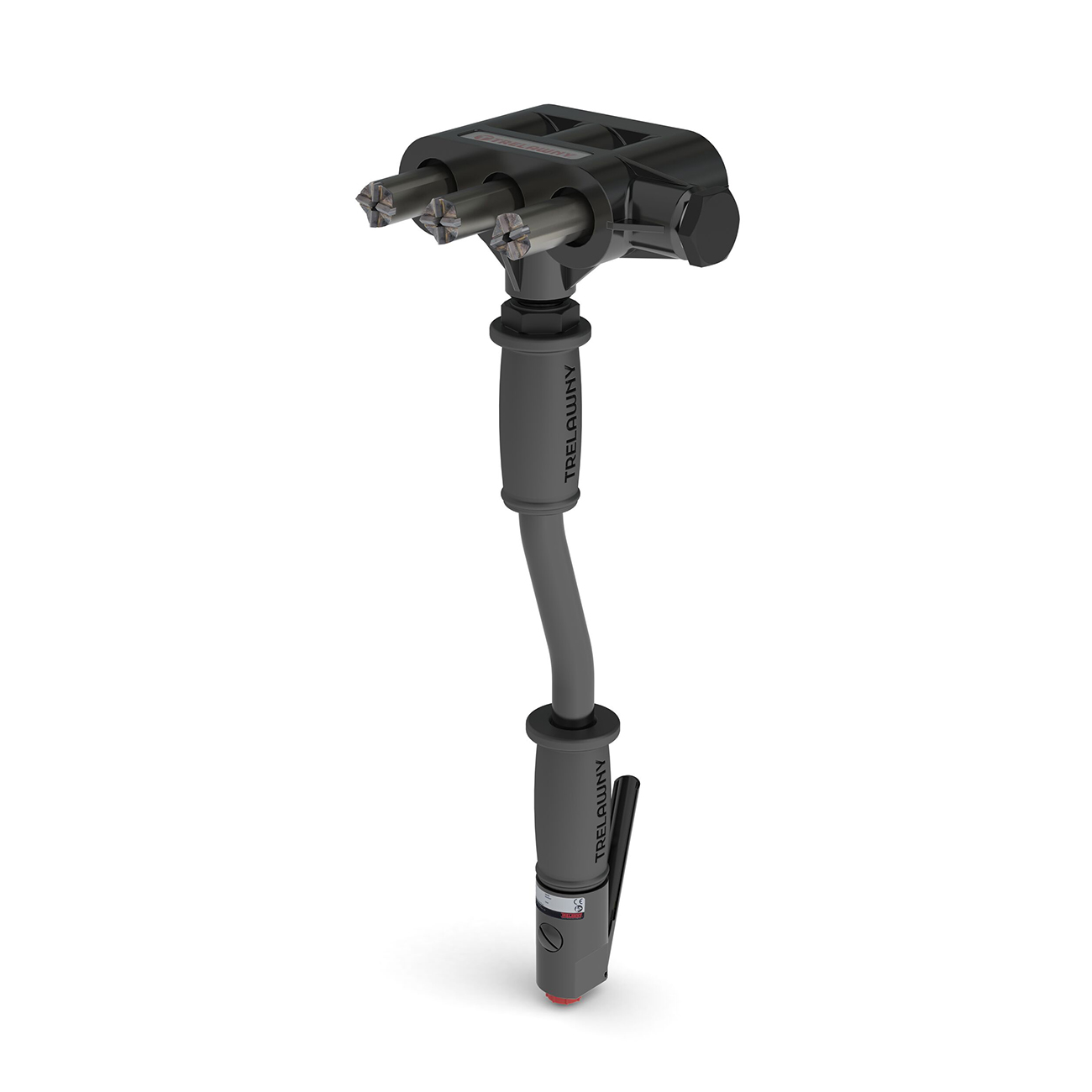

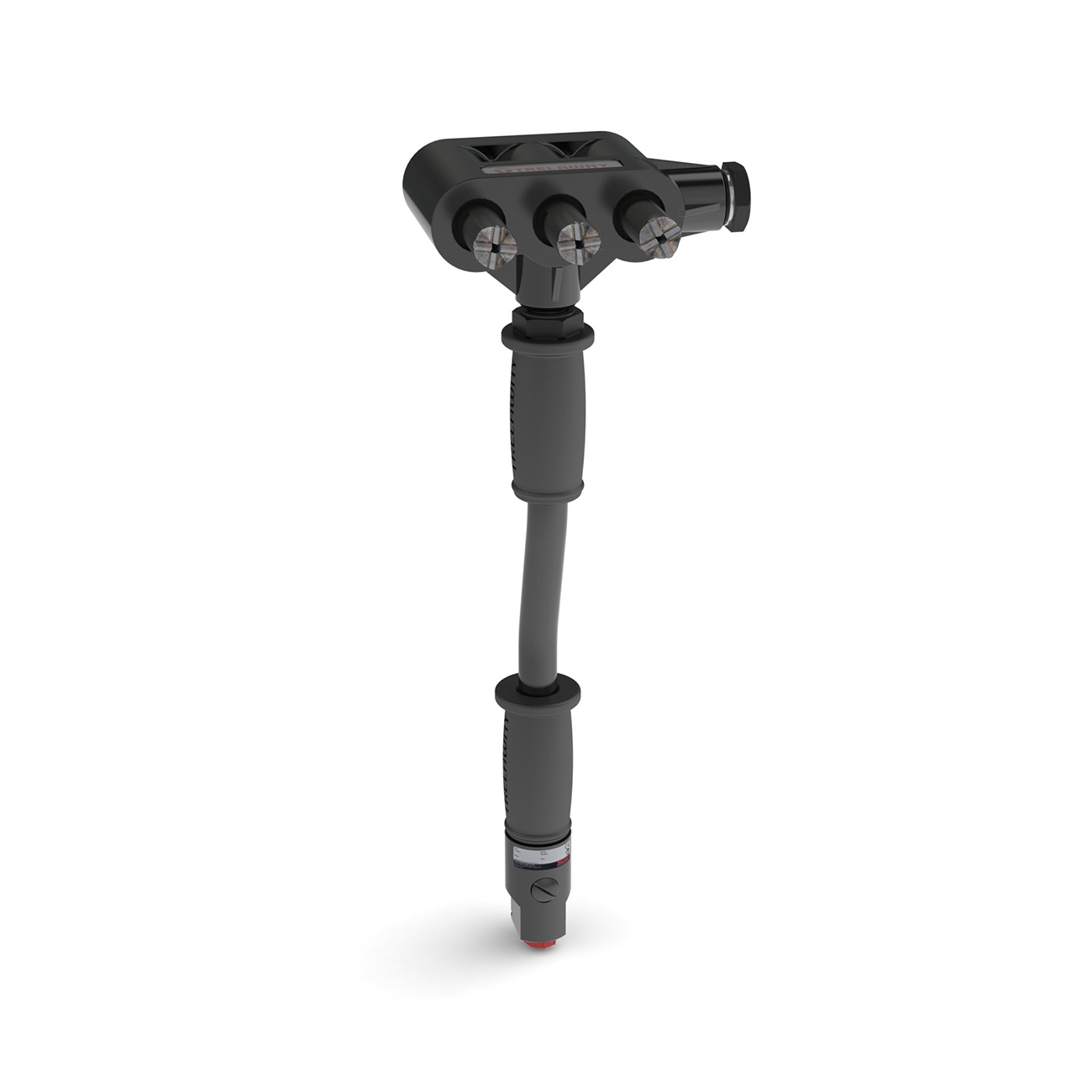

- Triple Head Heavy Duty Handheld Concrete Scabbler options include
- Long or Short Handle
- Steel Bush Hammer Pistons or TCT Cruciform Pistons
Benefits
- Built with heavy duty pneumatic performance, the tools maintain consistent impact energy under load, making them reliable for continuous use in harsh environments.
- Designed for precise material removal, allowing operators to target cracks, edges, and localized areas where grinders or larger scarifiers cannot reach.
- Equipped with an optional short handle configuration, the tools offer improved maneuverability in confined spaces, vertical surfaces, and overhead work.

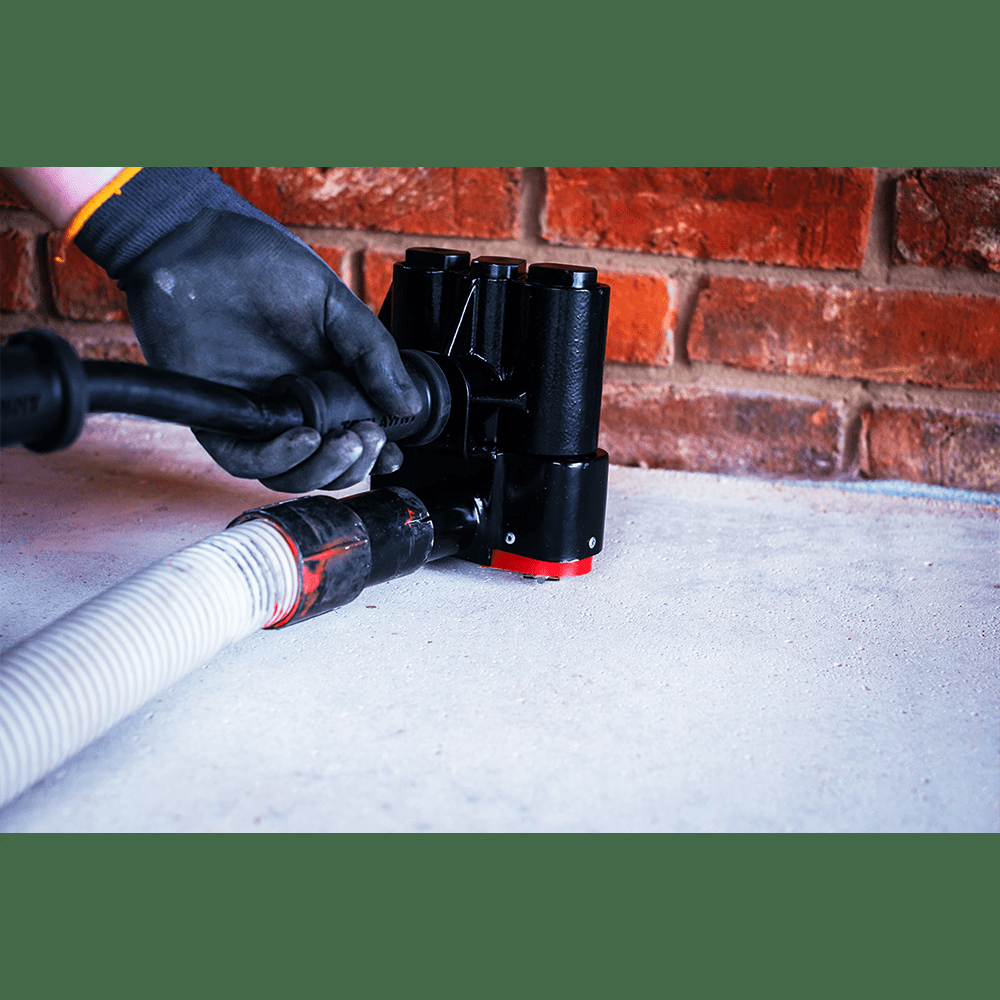

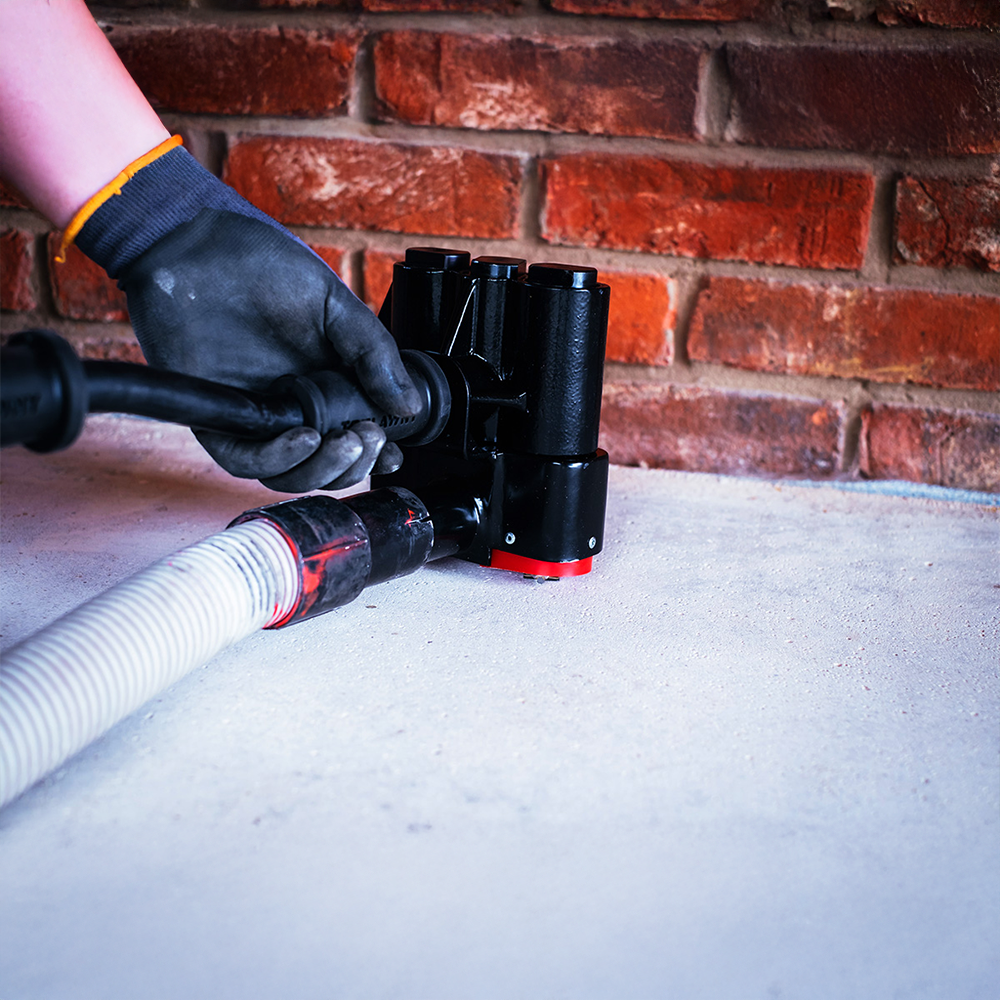

- Compatible with an optional dust shroud, enabling more efficient dust and debris collection to support cleaner operation and improved jobsite safety.
- Constructed with durable, industrial grade components, the scabbler can withstand the rigors of steel scale removal, concrete demolition, and continuous surface preparation in demanding environments.
Applications & Usage
- Triple-Head Pneumatic Scabbling Hammer designed for removing steel scale deposits. Heavy duty handheld scabblers deliver high impact blows that break down tough surface contamination on concrete and metal substrates, making them ideal for industrial maintenance and infrastructure rehabilitation.
- Built for preparing concrete cracks for repair, the tools create a clean, roughened profile that enhances bonding for patching materials, epoxy fillers, and structural repair compounds.
- Effective for texturing, roughing, and reducing concrete, allowing operators to achieve controlled material removal when correcting surface imperfections, reducing high spots, or establishing a uniform Concrete Surface Profile (CSP).
- Triple-Head Pneumatic Scabbling Hammer ideal for scabbling concrete to expose aggregate, enabling proper mechanical bonding for overlays, repair mortars, waterproofing membranes, and protective coatings.
Technical Specifications
| Blows per minute – 7200 Production rate – 100 sq. ft./hour Cutter life – 10,500 sq/ ft. | |||||||
| Description | Model No. | Handle Type | Dimensions (LxH) | Weight (lbs.) | CFM @ 90 PSI | Noise Level dB(a) | Vibration Levels m/s2 |
|---|---|---|---|---|---|---|---|
| Steel Bush Hammer Piston | 153.5250 | Long | 19" x 6.2" | 11.5 | 15.9 | 98 | 8.7 |
| TCT Cruciform Piston | 153.5200 | Long | 19" x 6.2" | 11.5 | 15.9 | 98 | 8.7 |
| TCT Cruciform Piston | 199.6390 | Short | 9.25" x 6" | 7 | 15.9 | 98 | 8.7 |
Optional Accessories
Optional
Optional
Optional
OptionalProduct: Standard air tool oil • Size Quantity: 4 x 1 gallon
$0.00
In stock
