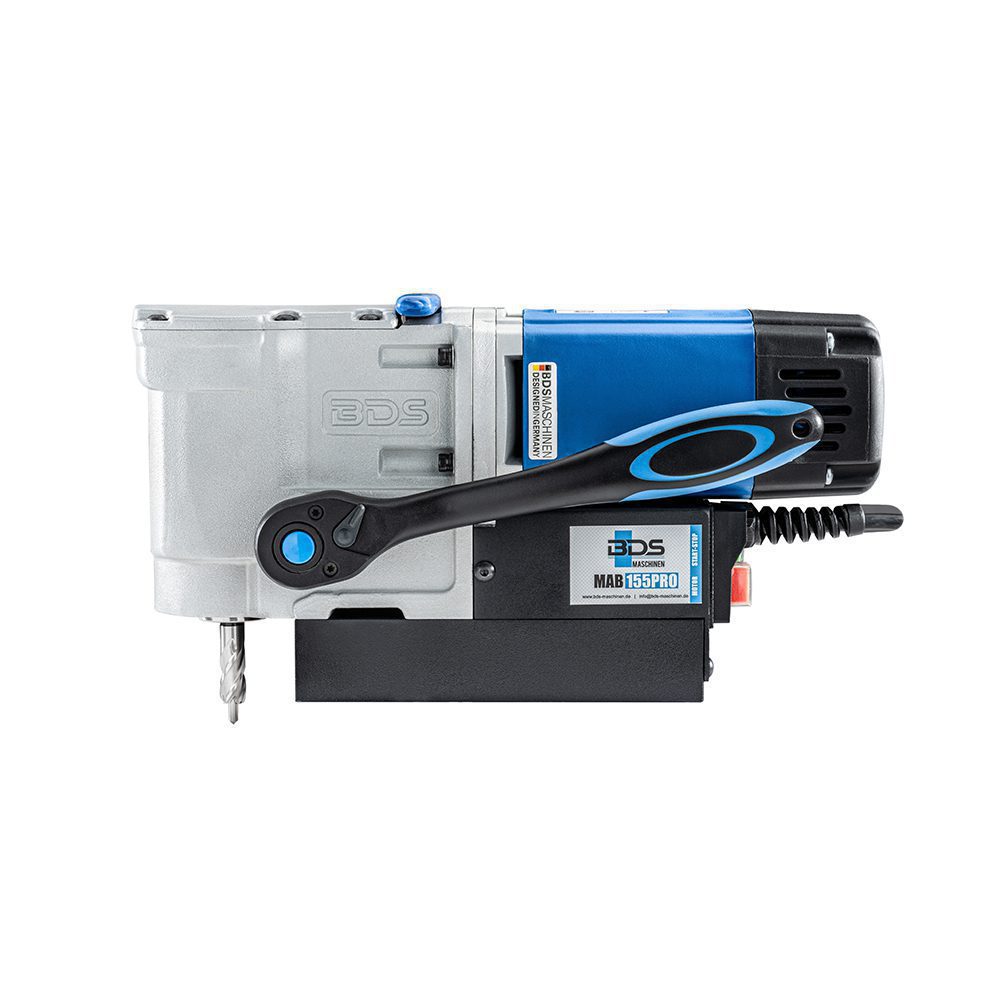

MAB 155PRO
- Cutting Capacity: 1-1/2″ Diameter
- Stroke: 1-1/2″
- Compact Height: 7-1/8″
- Speed (RPM): 460
- Magnetic Force: 2640 lbs.
- LED light for increased visibility
- Uses standard 3/4″ 2 flat shank annular cutters
- Equipped with Electronic Safety Shutoff Sensor
- MAB 155PRO
- Pilot Pin
- Plastic Carrying Case
- Safety Chain
- Hexagon Socket Screw KEY SW 4
- Operating Manual
- Warranty Certificate
- Safety Strap
- Carabin Hook
- Allen Key
Benefits

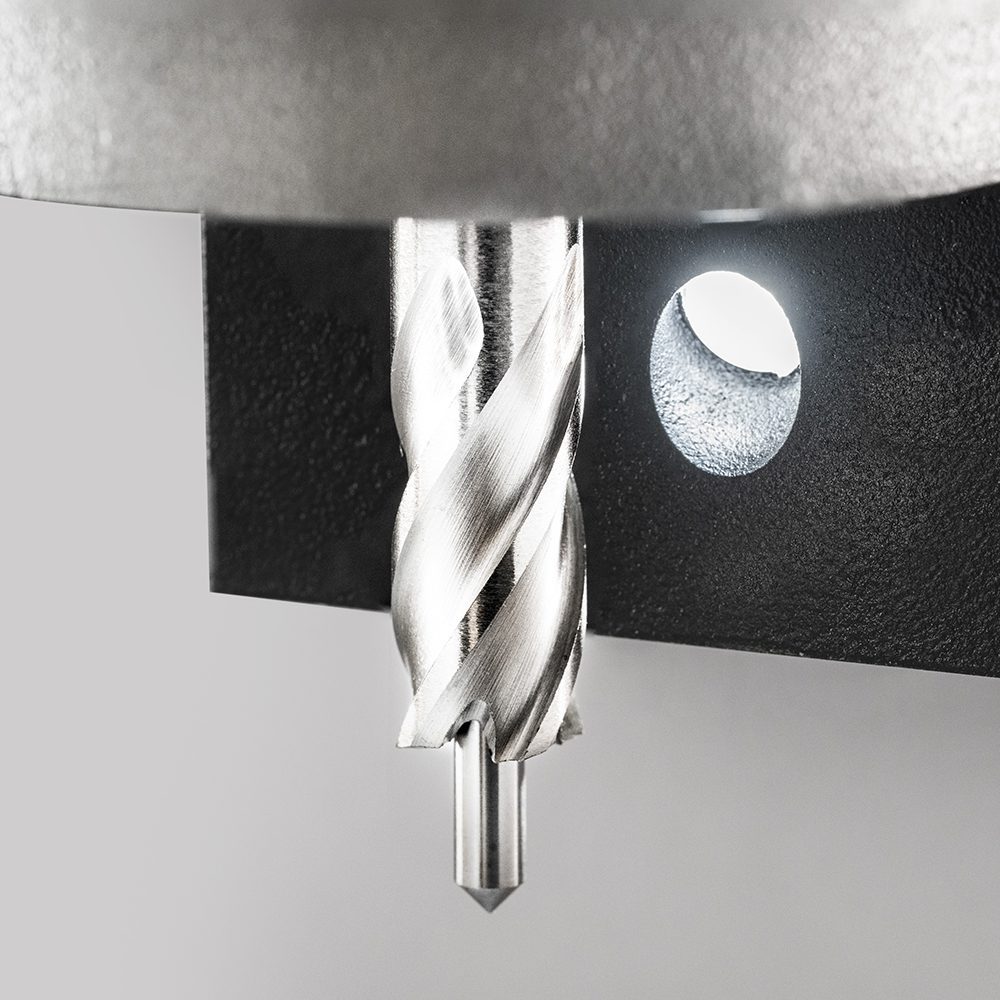

- Equipped with an LED light for increased visibility.
- Rear mounted control for ergonomics and easy access. Simple, intuitive controls reduce setup time and make operation easy for both new and experienced users.

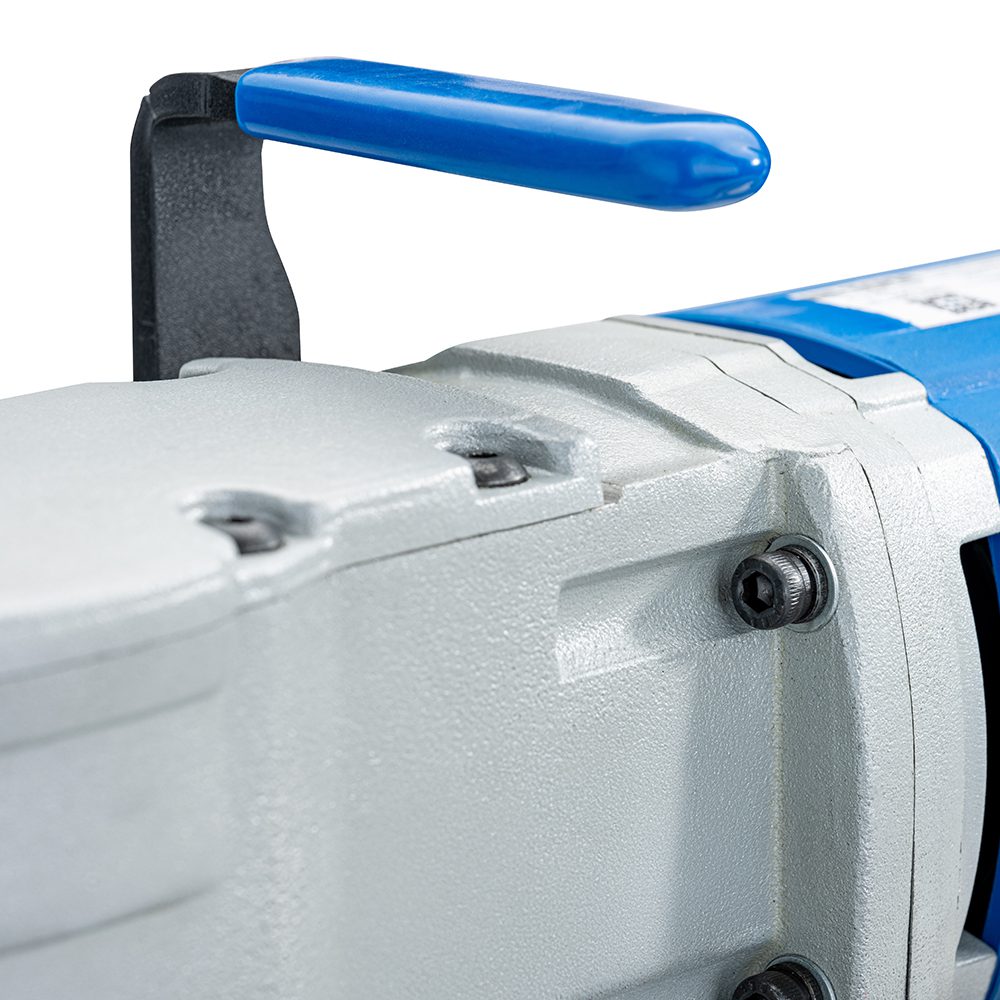

- Ratchet-style advancing mechanism for work in spaces with limited clearance. Ultra compact, low-profile design allows drilling in tight, restricted, or overhead spaces where standard magnetic drills cannot fit.
- Advancing lever can be mounted on either left or right side.
- Internal cable routing.

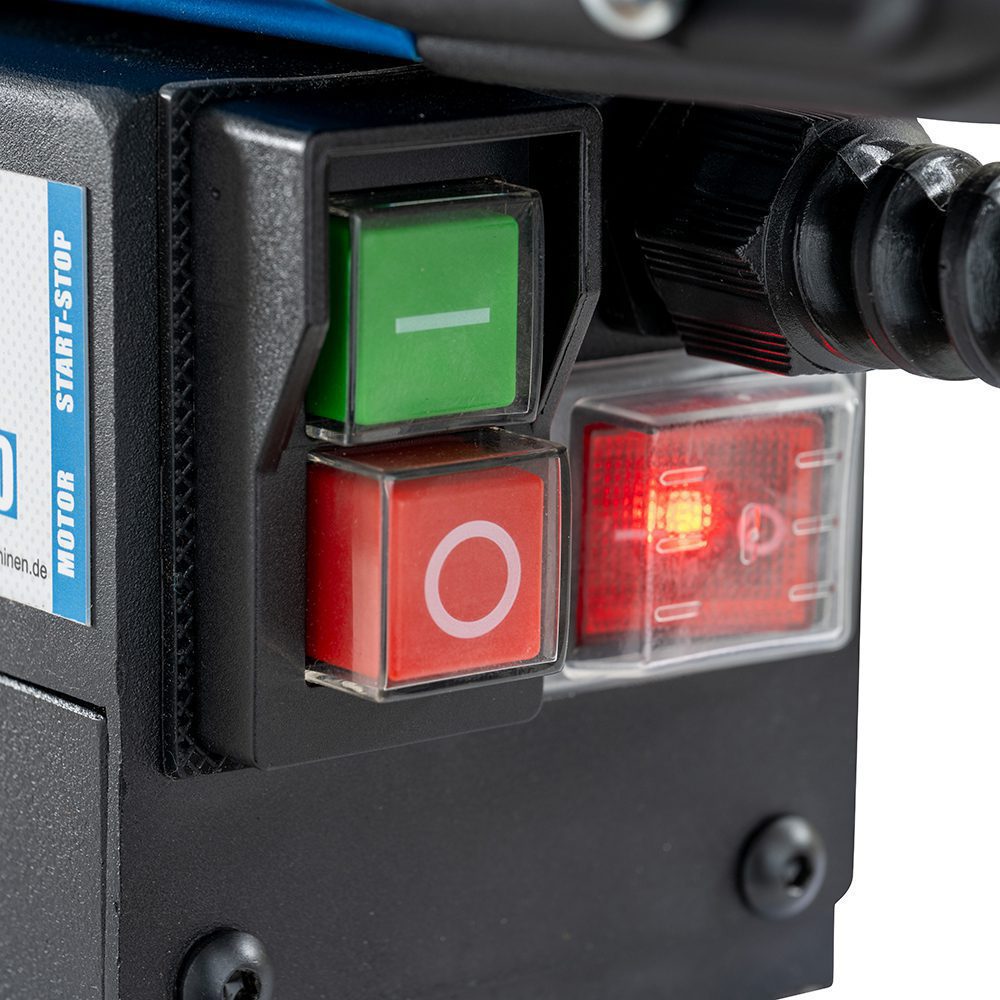

- Simple, ergonomic arrangement of controls for one-handed operation.
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
Applications & Usage
- MAB 155PRO accepts cutters with a 3/4″ weldon shank and a maximum depth of cut of 1-1/2″.
- Drilling holes in structural steel, plate, beams, and fabricated assemblies.
- Ideal for shop or field fabrication requiring fast, accurate holemaking.

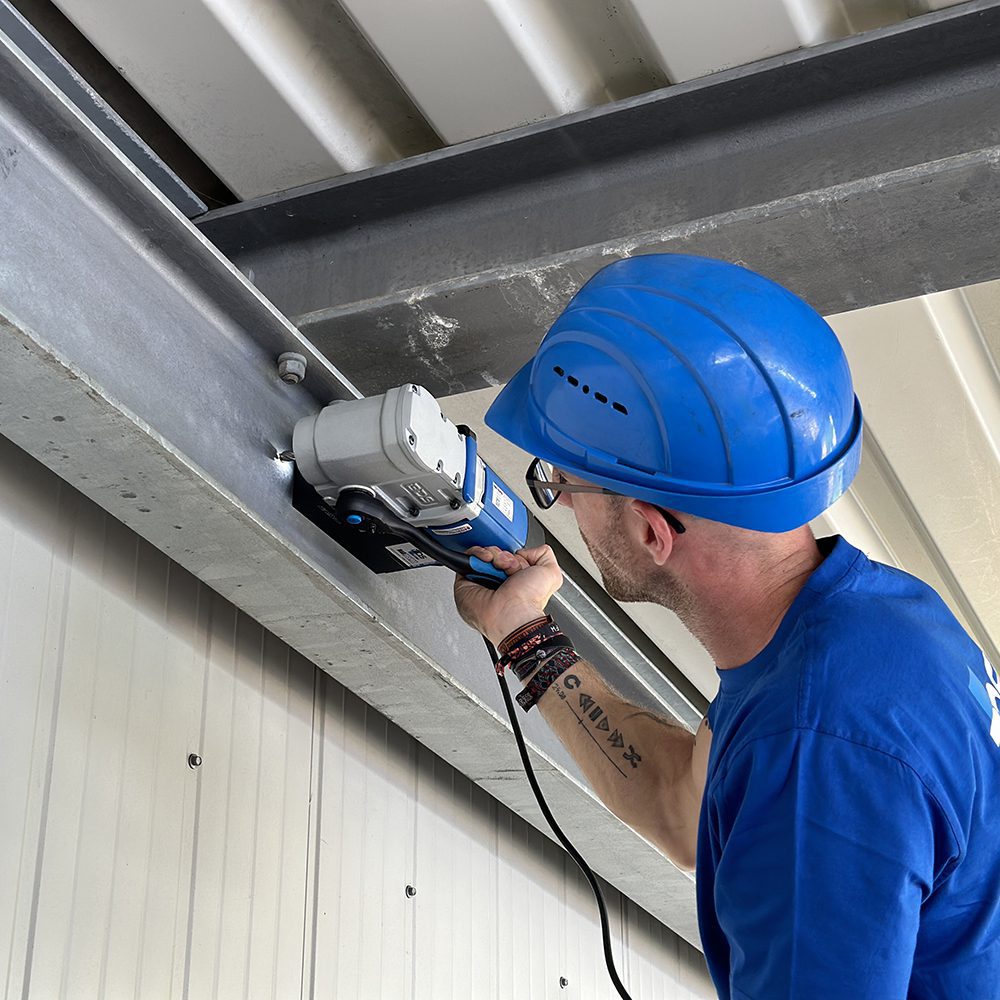

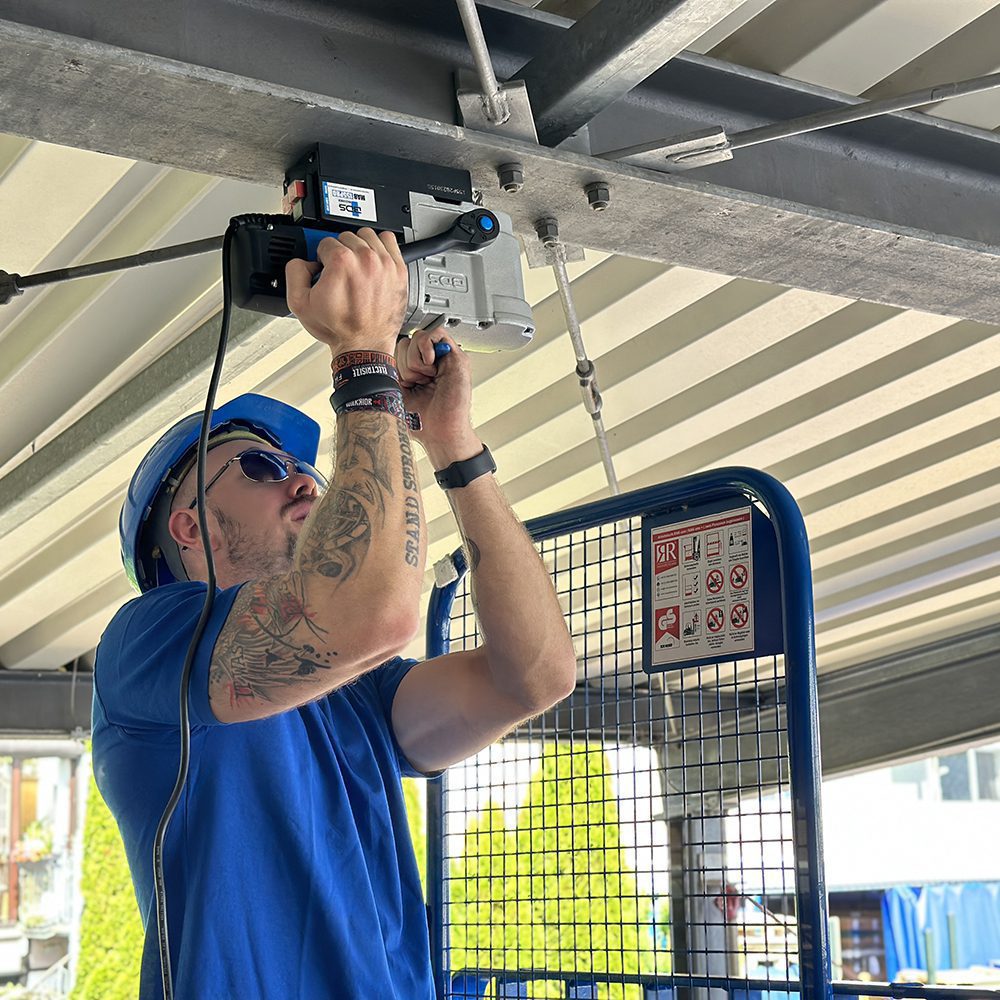

- Overhead, vertical, and tight space drilling on I‑beams, columns, and steel frameworks.
- Perfect for installing brackets, supports, and bolted connections.
- Onsite drilling for equipment repair, retrofits, and plant maintenance.
- Useful in confined or elevated locations where larger drills are impractical.
- Lightweight design makes it ideal for technicians who need a compact magnetic drill for remote or multi‑site work.
- See Recommended Speed and Feed Charts for Annular Cutters
Technical Specifications
| Item ID: MAB 155PRO | |
| Motor Power | 9.25 Amp/110 Volt |
| Weight | 24.25 lbs. |
| Stroke | 1-1/2" dia. |
| Hole Capacity | 1-1/2" dia. |
| Speed | 320 RPM |
| Magnet Base Size | 3.15" x 7.28" x 1.52" |
| Dimensions | 7-3/32" H X 13-5/16" L x 4-3/4"W |
| Magnetic Force (1" plate) | 2640 lbs. |
| Arbor Bore | 3/4" Weldon Shank |
Optional Accessories
Optional
OptionalDepth: 2 3/8" • Diameter: Kit
$0.00
In stock
Optional
OptionalRelated PDFs

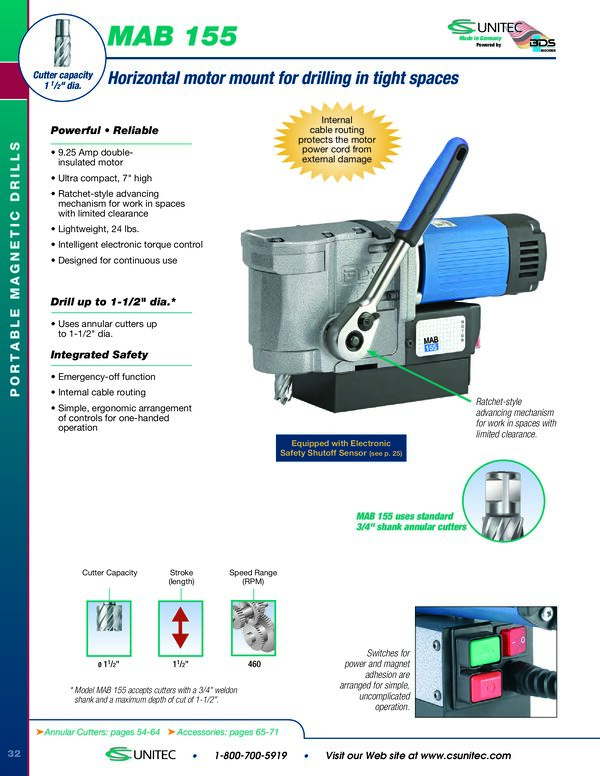

Catalog PDF 1
CAT_MAB155
Download PDF
Catalog PDF 2
FLY_MAB155
Download PDF

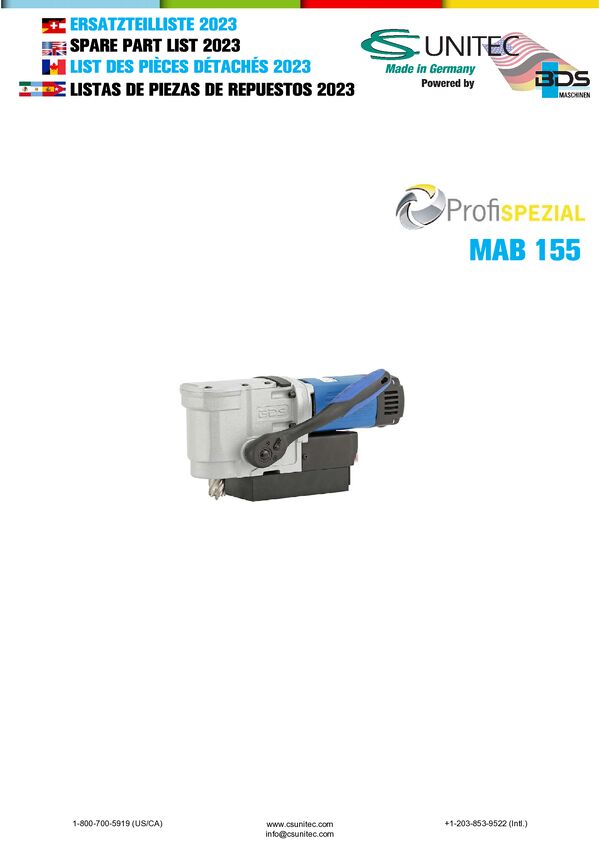

Product Schematic
SCHEM_MAB155
Download PDF

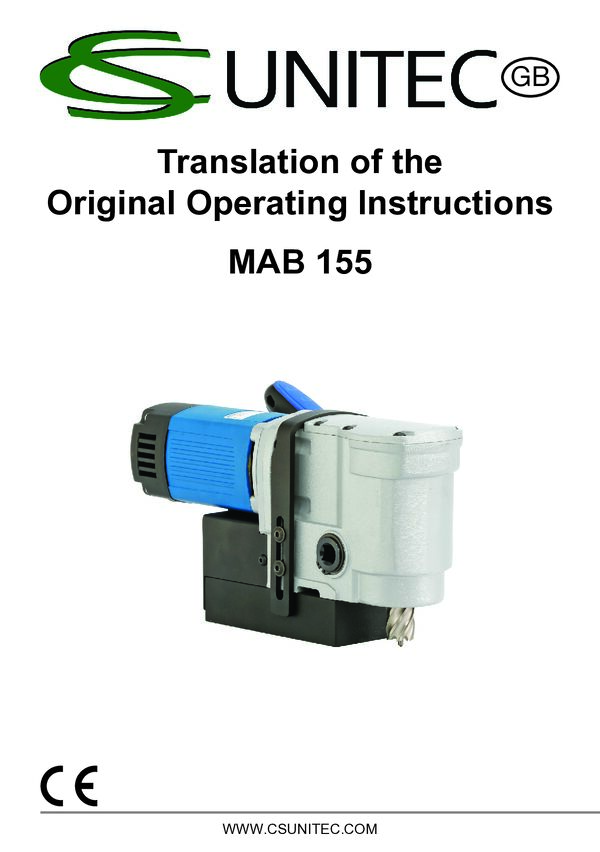

Operating Manual
MANUAL_MAB155
Download PDF
