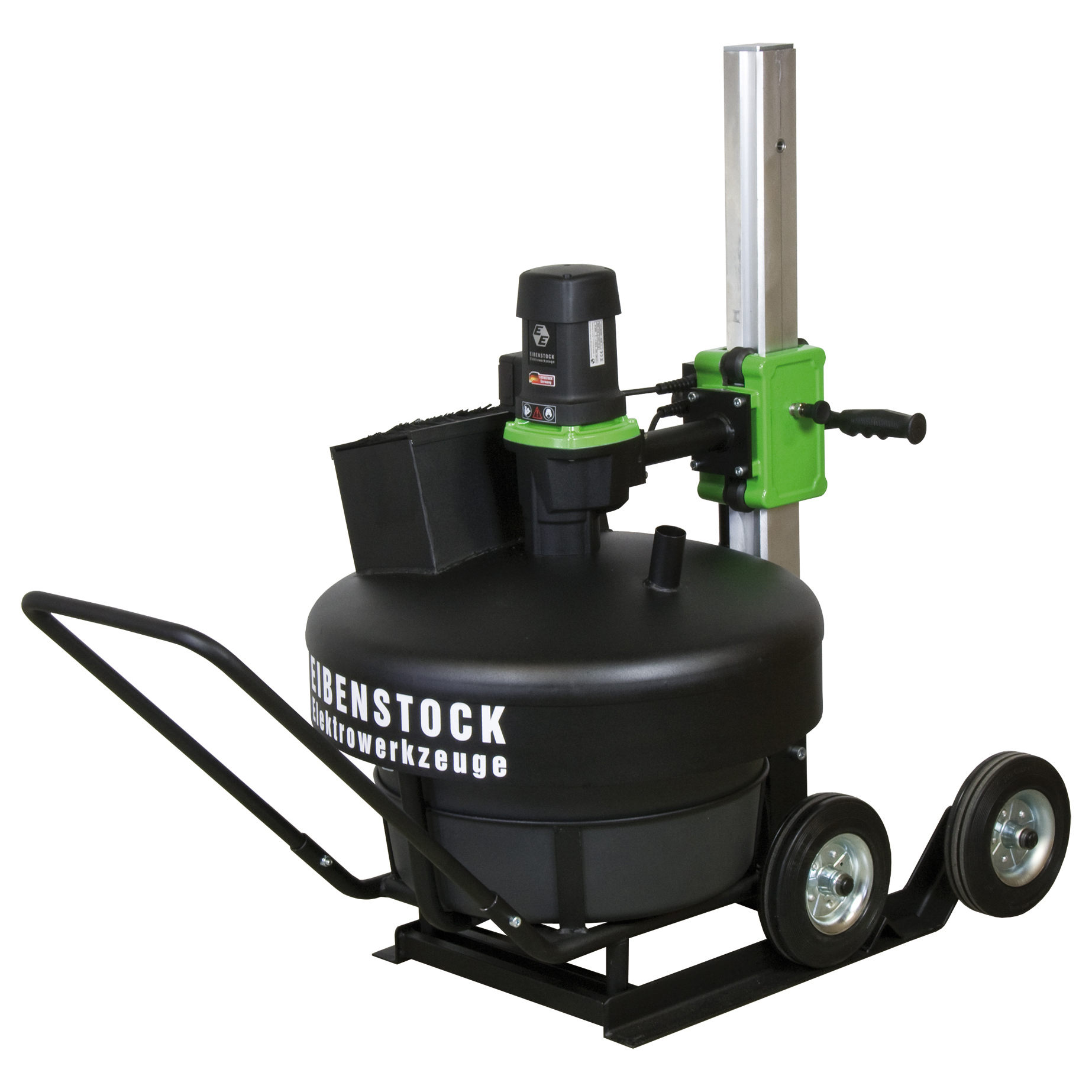

TwinMix 1800 Portable Automatic Mixing Station
- Ideal for mixing high-viscosity materials: Urethanes, Mortar, Leveling Compounds, Plaster and other Heavy Material.
- Speed: 250 / 450 RPM (Helical Rod), 20 / 36 RPM (Scraper Paddle)
- Capacity: 17 gal.
- Power: 15 Amp
- Timer Included
- Timer (P/N 32353000)
- Motor on stand
- Mixing rod (inner helical paddle, P/N 31452)
- Mixing paddle (outer paddle, P/N 31451)
- Mixing bucket (P/N 32341)

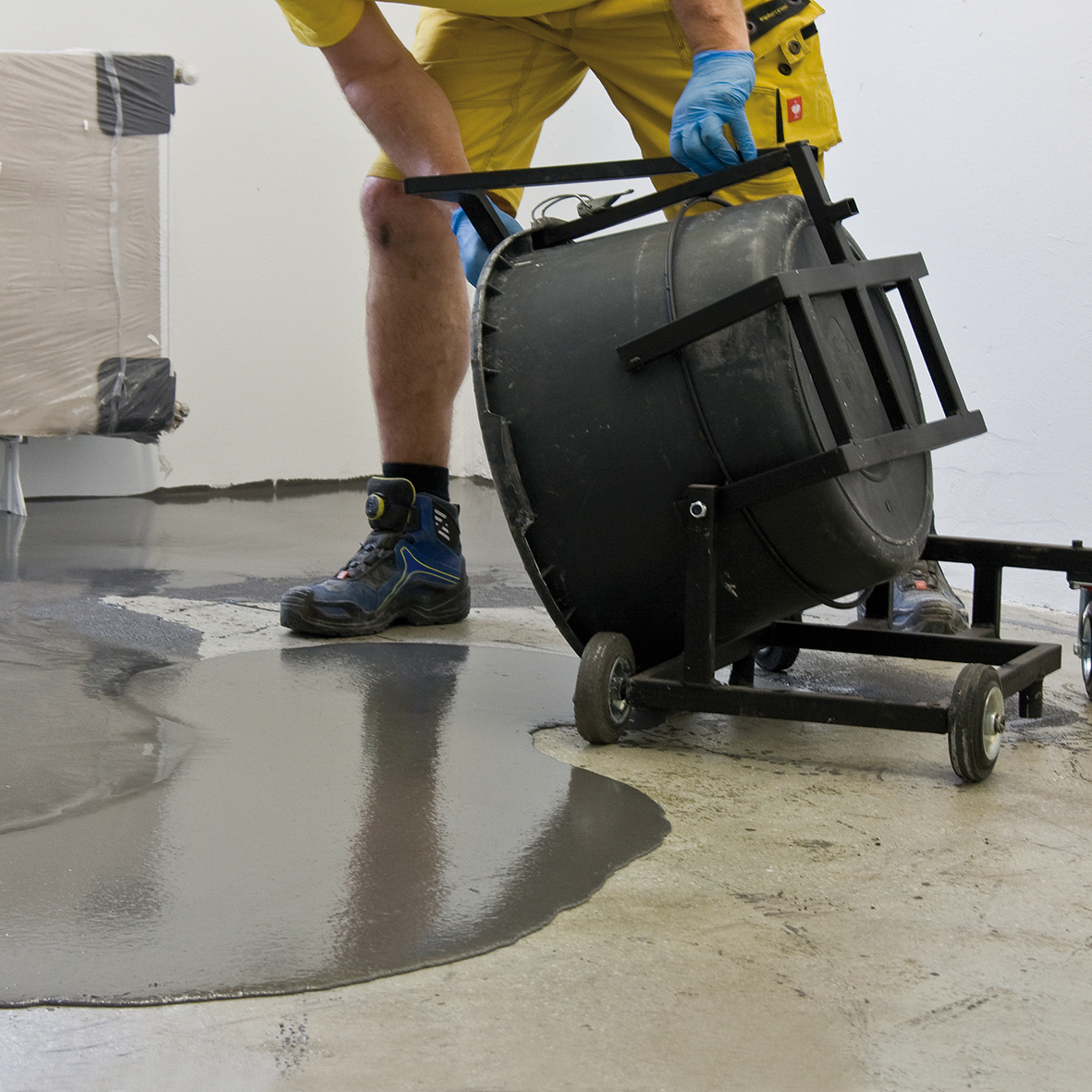

- Front Pouring cart (P/N 32333000)
Benefits

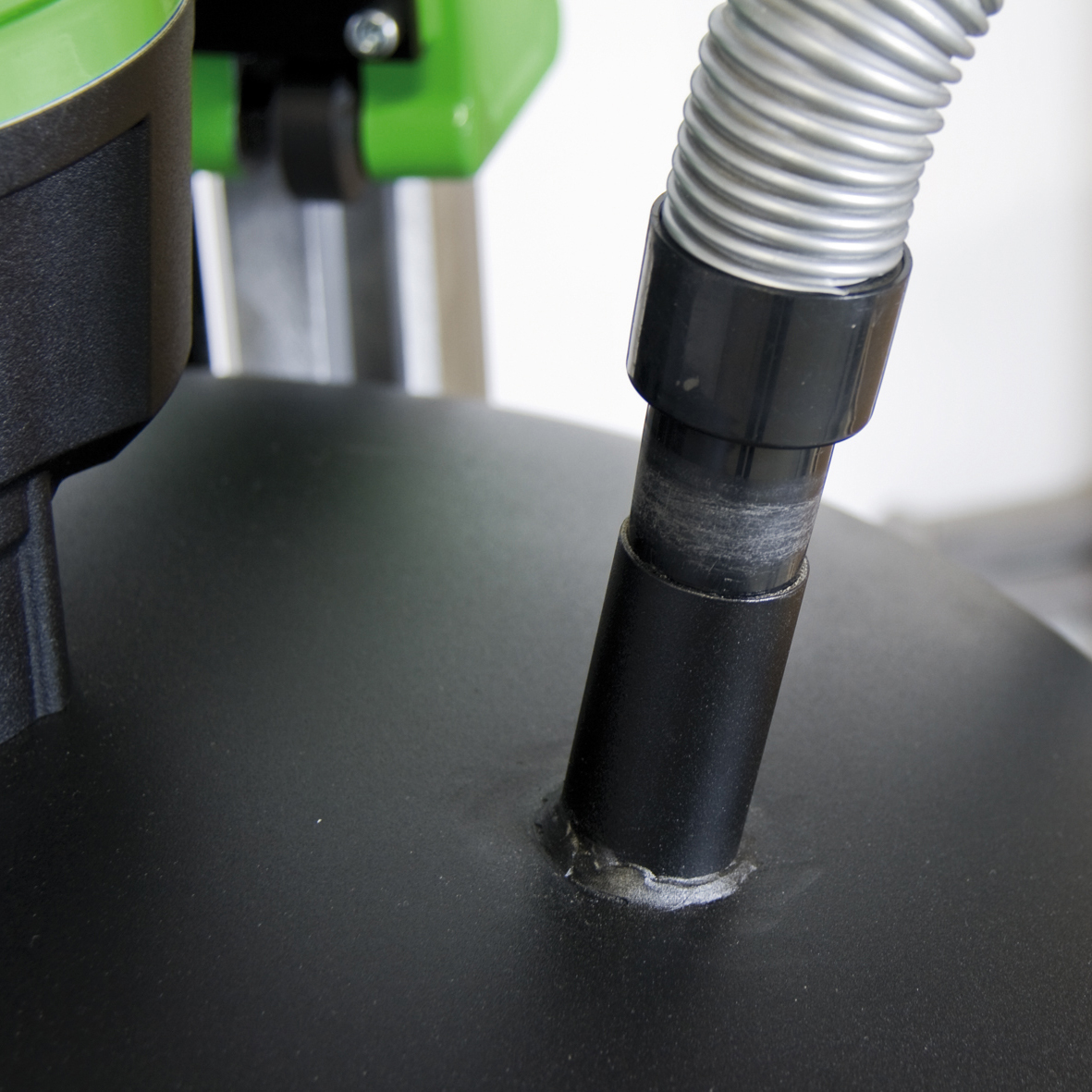

- Dust extraction port collects dust while adding materials and mixing
- Dual mixing paddle with scraper
- Replaceable liners for easy cleanup and prevention of cross contamination
- Dust extraction port for connection to industrial vacuum
- Front Pouring cart

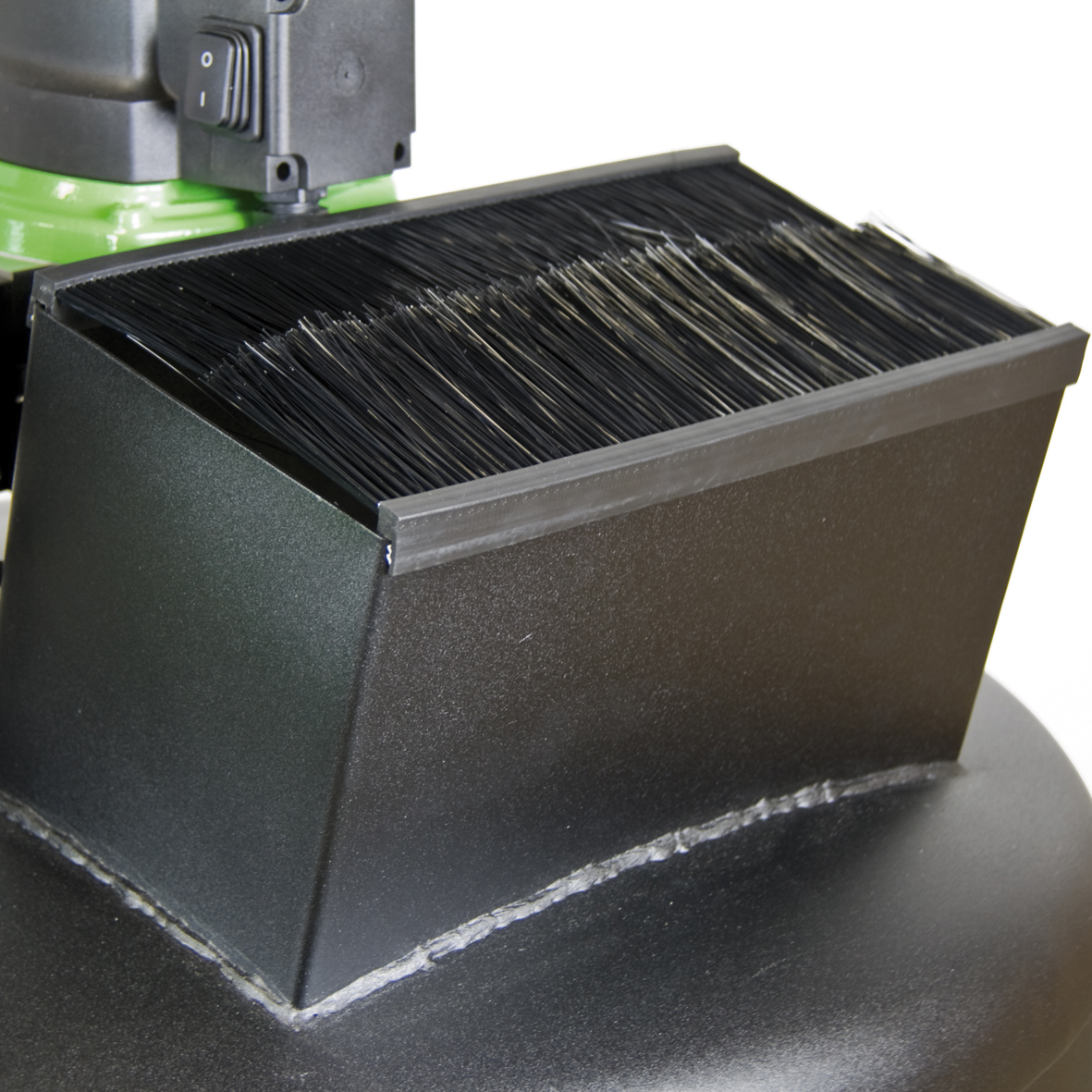

- Brush-lined inlet tube for dust containment

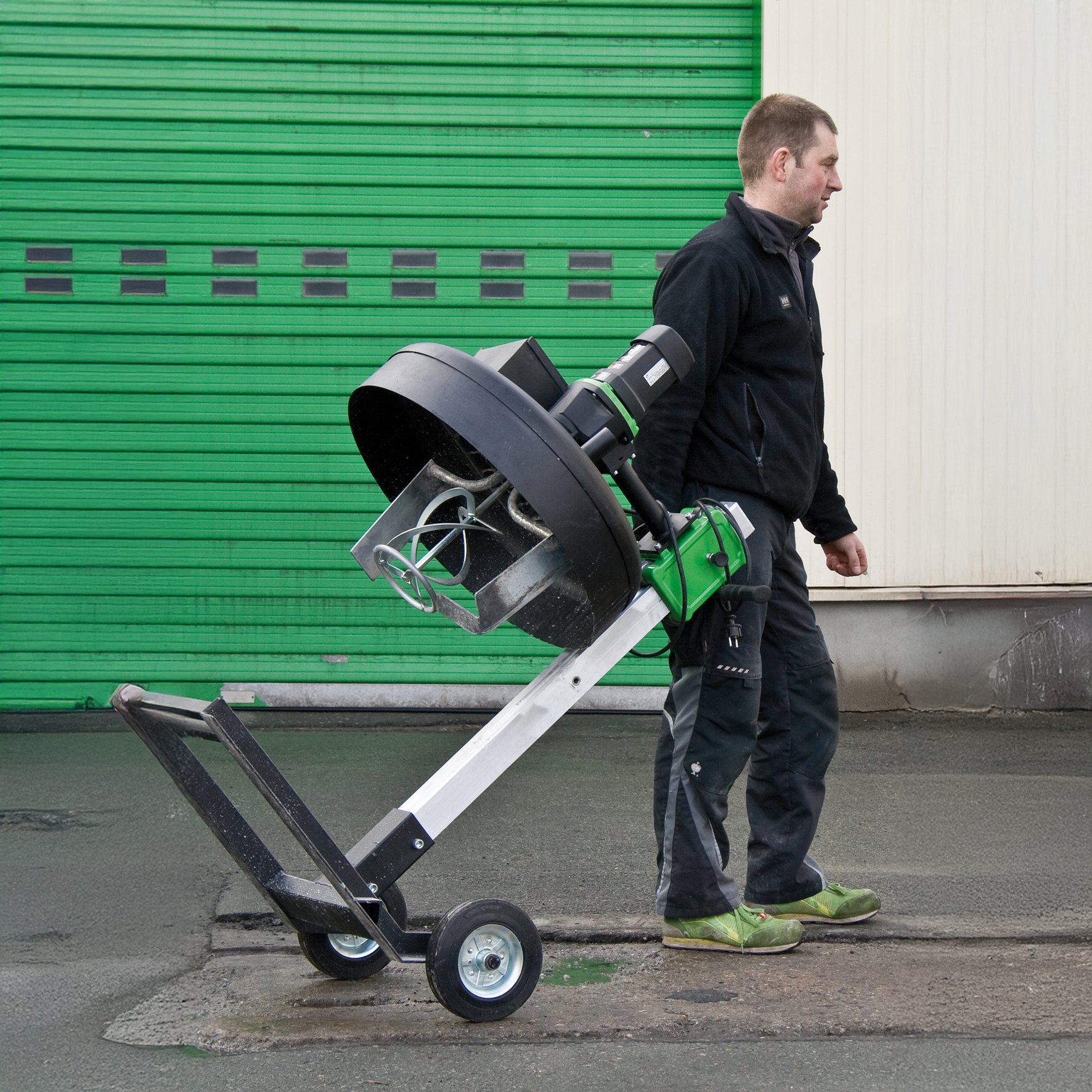

- Ergonomic handles and large wheels for easy mobility
- Safety switch disables motor when hood is lifted during mixing
- Transport carts and buckets can also be used with handheld mixer
Applications & Usage

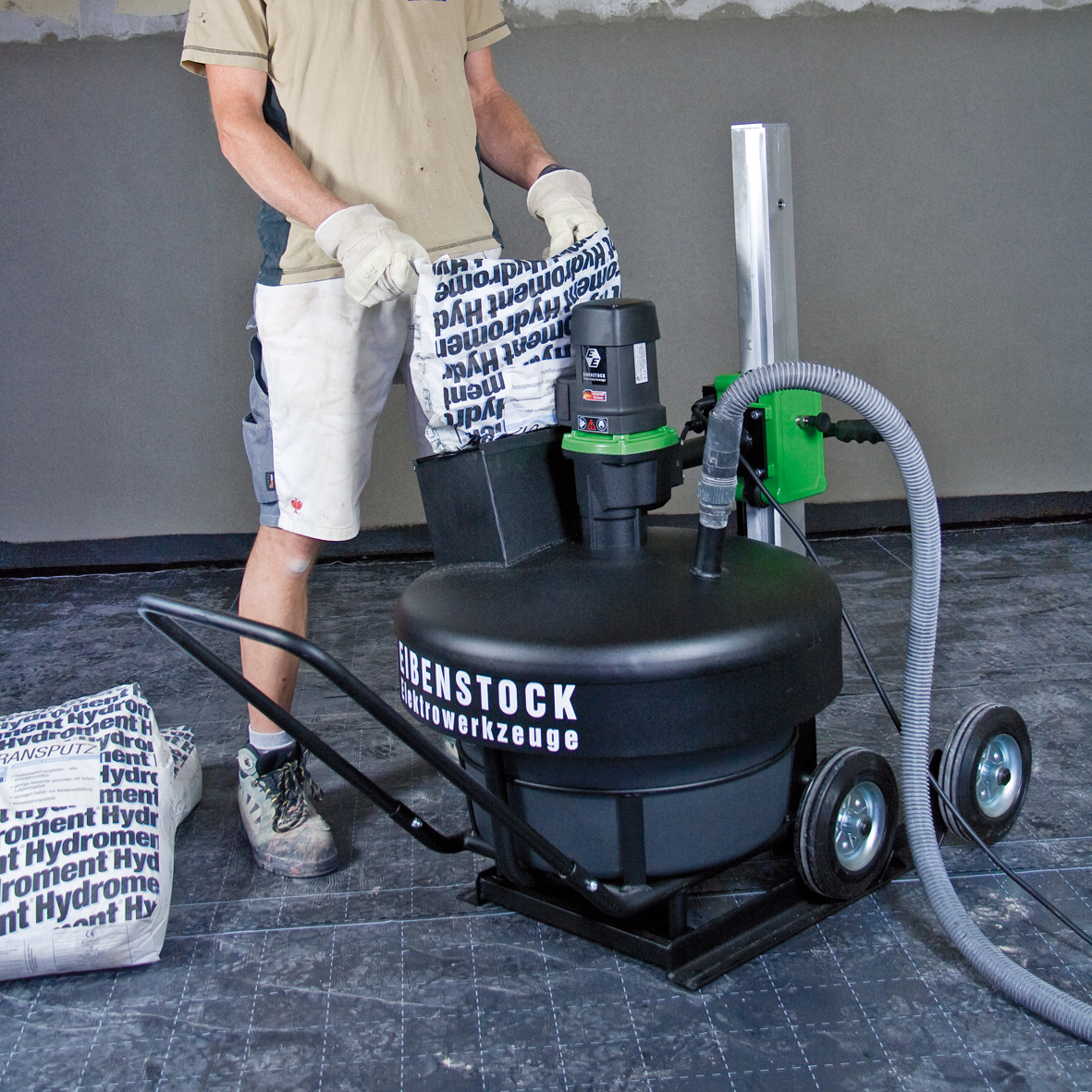

- TwinMix 1800 ideal for mixing heavy and trowel urethanes, brick and heavy mortar, filler and leveling compounds, plaster, thin-bed mortars and other high-viscosity materials.
- Up to 2000 lbs. of production output per hour.

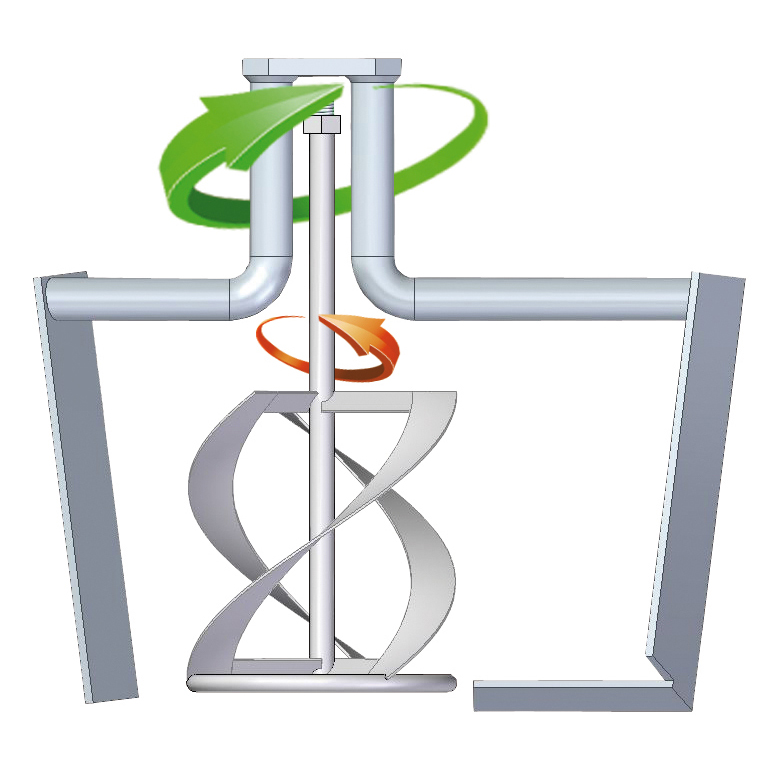

- Two contra-rotating paddles thoroughly combine compounds into a homogeneous, lump-free mixture.
- Optional timer and second cart cuts labor and production time in half – one user can mix a new batch while pouring the previous batch!
Technical Specifications
| Model | Twinmix 1800 TFR |
|---|---|
| Power | 15 AMP / 110 V |
| Bucket Capacity | 17 gallons |
| Helical Rod Speed | 250 / 450 RPM |
| Scraper Paddle Speed | 20 / 36 RPM |
| Weight | 155 lbs. |
| Timer (Included) | P/N 32353000 |
