Core Drill Anchor/Vacuum Stand BST 104/60 V
- For Use With: Core Drill Model END 1550 P, ETN 2001 P, END 130/3.2 PO
- Max. Drilling at 90°: 6″
- Column Length: 26-3/4″
Includes (testing):
- Core Drill Anchor/Vacuum Stand
Benefits
- Easy adjustment of drilling depth and easy to level.
- Aluminum column provides high torsional strength, excellent rigidity for straight, accurate coring.
- Smooth running, hard-wearing, adjustable guides/bearings.
- Change feed lever without any tool – easy selection of operating side.
- Hole center indicator allows exact positioning.
- Combined base, special mounting-manual with two suction cups, all anchor/vacuum stands supplied with braces.
- One stand covers virtually all site conditions. Vacuum mounting allows secure placement without drilling anchor holes, protecting finished floors and surfaces.
Applications & Usage
- Core Drill Anchor/Vacuum Stand can be used with drill motors of various brands (Quick-mounting system, Universal tool holder, Collar connection).
- Vacuum mounting is ideal for tile, polished concrete, terrazzo, and other finished surfaces where anchor holes are not acceptable.
- Use vacuum mounting on smooth, non‑porous surfaces for fast setup with no drilling required.
- Switch to anchor mounting when working on rough, uneven, or porous surfaces where vacuum adhesion isn’t possible.
- Ideal for drilling through reinforced concrete walls, slabs, beams, and columns.
- Provides the stability needed for deep or large diameter holes.
Technical Specifications
| BST 104/60 V | |
| For use with Core Drill Model | END 1550 P* ETN 2001 P* END 130/3.2 PO |
|---|---|
| Max. drilling Ø at 90° | 6" |
| Column length | 26-3/4" |
| Collar mounting | Ø 60mm |
| Adjustable angle | 45° to 90° |
| Weight | 18.7 lbs. |
| Space saving base (anchor) | 12-5/8" x 9" |
| Combined base | Anchor/vacuum |
Related PDFs
Catalog PDF
CAT_Core_Drills
Download PDF

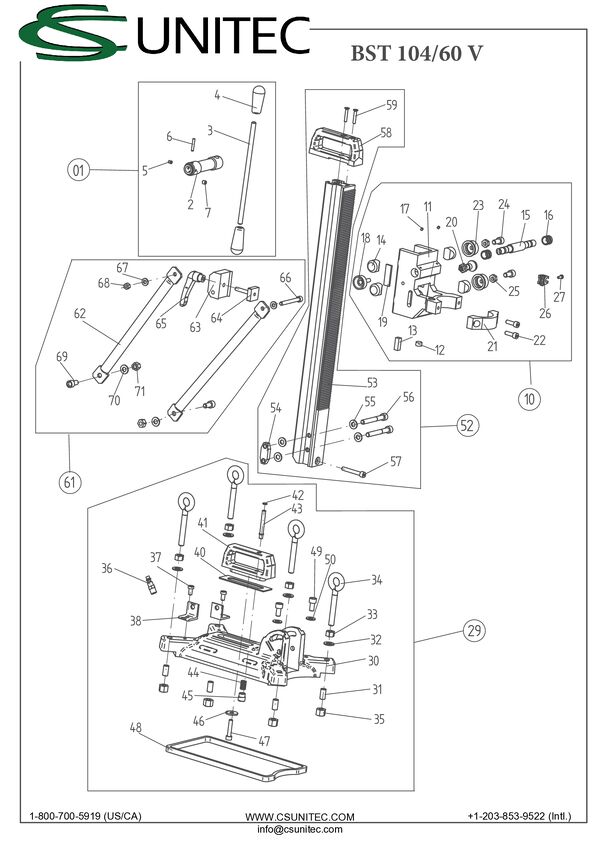

Product Schematic
SCHEM_BST10460
Download PDF

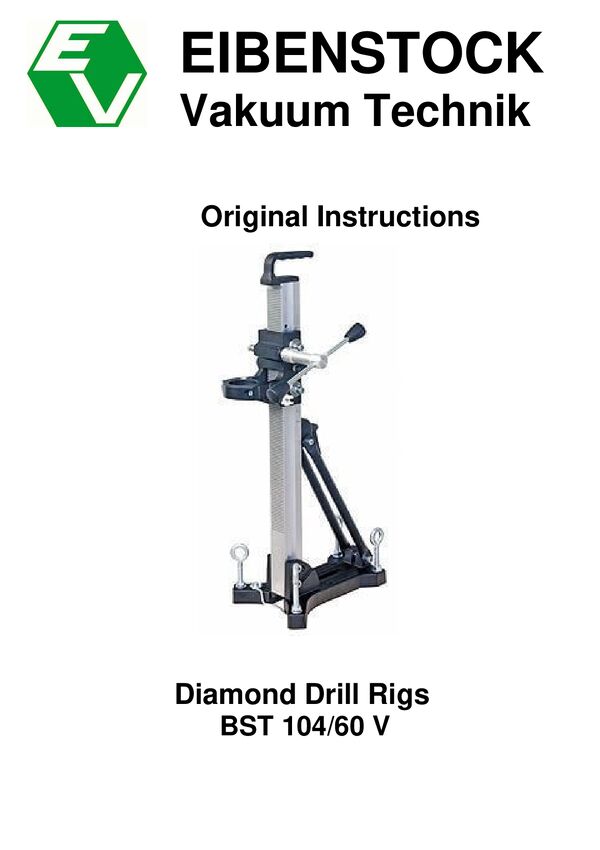

Operating Manual
MANUAL_BST 10460 V
Download PDF
Usage
- Core Drill Anchor/Vacuum Stand can be used with drill motors of various brands (Quick-mounting system, Universal tool holder, Collar connection).
- Vacuum mounting is ideal for tile, polished concrete, terrazzo, and other finished surfaces where anchor holes are not acceptable.
- Use vacuum mounting on smooth, non‑porous surfaces for fast setup with no drilling required.
- Switch to anchor mounting when working on rough, uneven, or porous surfaces where vacuum adhesion isn’t possible.
- Ideal for drilling through reinforced concrete walls, slabs, beams, and columns.
- Provides the stability needed for deep or large diameter holes.
Benefits
- Easy adjustment of drilling depth and easy to level.
- Aluminum column provides high torsional strength, excellent rigidity for straight, accurate coring.
- Smooth running, hard-wearing, adjustable guides/bearings.
- Change feed lever without any tool – easy selection of operating side.
- Hole center indicator allows exact positioning.
- Combined base, special mounting-manual with two suction cups, all anchor/vacuum stands supplied with braces.
- One stand covers virtually all site conditions. Vacuum mounting allows secure placement without drilling anchor holes, protecting finished floors and surfaces.
Usage
- Core Drill Anchor/Vacuum Stand can be used with drill motors of various brands (Quick-mounting system, Universal tool holder, Collar connection).
- Vacuum mounting is ideal for tile, polished concrete, terrazzo, and other finished surfaces where anchor holes are not acceptable.
- Use vacuum mounting on smooth, non‑porous surfaces for fast setup with no drilling required.
- Switch to anchor mounting when working on rough, uneven, or porous surfaces where vacuum adhesion isn’t possible.
- Ideal for drilling through reinforced concrete walls, slabs, beams, and columns.
- Provides the stability needed for deep or large diameter holes.
Benefits
- Easy adjustment of drilling depth and easy to level.
- Aluminum column provides high torsional strength, excellent rigidity for straight, accurate coring.
- Smooth running, hard-wearing, adjustable guides/bearings.
- Change feed lever without any tool – easy selection of operating side.
- Hole center indicator allows exact positioning.
- Combined base, special mounting-manual with two suction cups, all anchor/vacuum stands supplied with braces.
- One stand covers virtually all site conditions. Vacuum mounting allows secure placement without drilling anchor holes, protecting finished floors and surfaces.
