MAB 100 K
- Cutting Capacity: 1-3/8″ Diameter
- Twist Drill Capacity: 1/2″ Diameter
- Stroke: 2-3/4″
- Speed: 460 RPM
- Magnetic Force: 3080 lbs.
- Equipped with Electronic Safety Shutoff Sensor
- MAB 100 K
- 3/4″ Weldon Quick Change Chuck (affixed)
- Carrying Case
- 1″ Pilot Pin
- 2″ Pilot Pin
- Safety Strap
- Operating Manual
- Warranty Certificate
Benefits
- Ultra lightweight design (21.8 lbs) makes it the lightest MAB series magnetic drill, dramatically reducing operator fatigue during vertical and overhead drilling.
- Compact, streamlined body improves maneuverability in tight spaces and allows easier hole alignment on structural steel and confined work areas.
- Quick change keyless chuck enables fast switching between annular cutters and twist drills, increasing productivity on multi step jobs.
- Drills up to 1‑3/8" diameter with annular cutters and up to 1/2" with twist drills, excellent capacity for a compact machine.
- Permanent internal lubrication ensures smooth drilling, longer tool life, and reduced maintenance.
- Magnet indicator and internal wiring enhance safety and reliability during operation.
- SafeMag™: green/red LED magnetic force indicator for safe operation.
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
Applications & Usage
- MAB 100 K is ideal for drilling holes in structural steel, plate, beams, and fabricated assemblies.
- Ideal for shop or field fabrication requiring fast, repeatable holemaking.

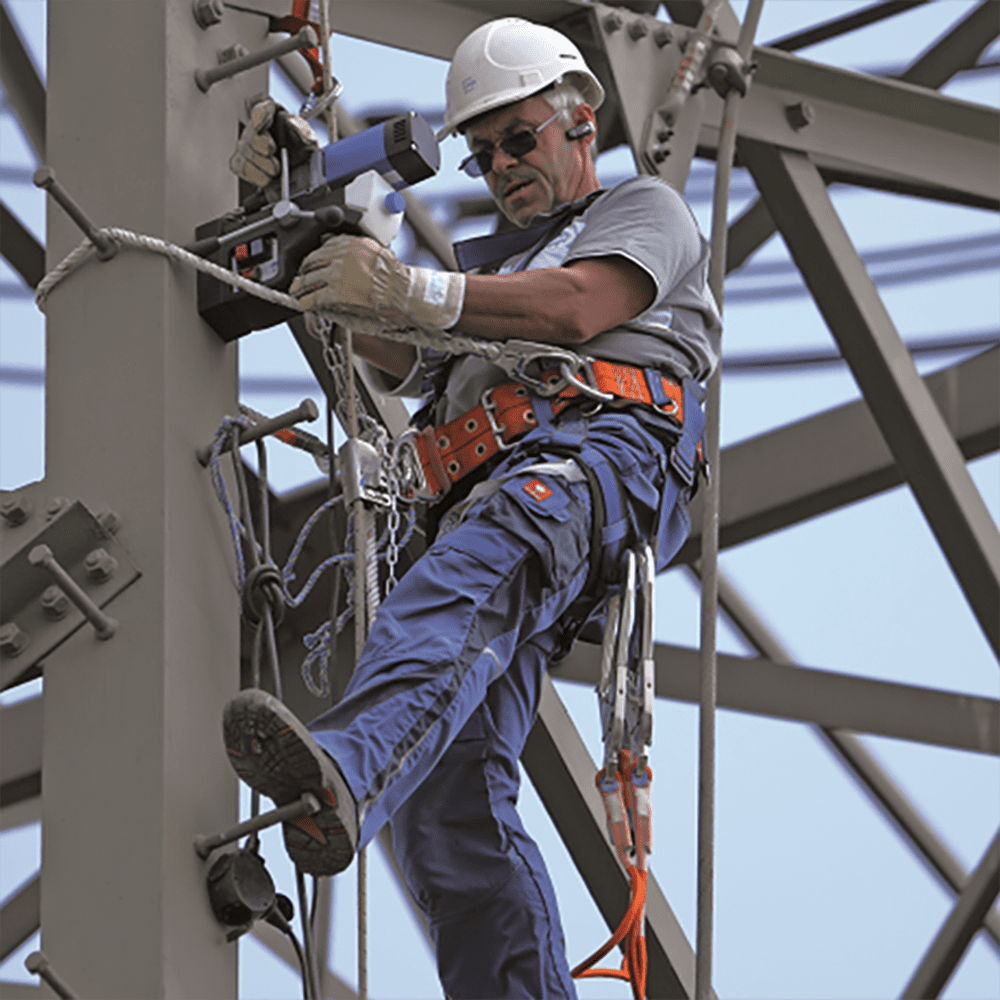

- Overhead and vertical drilling on I‑beams, columns, and steel frameworks.
- Onsite drilling for equipment repair, retrofits, and plant maintenance.
- Useful in tight or elevated locations where heavier drills are impractical.
- Drilling mounting holes for piping, conduit supports, and mechanical systems.
- Lightweight design makes it ideal for technicians who need a portable magnetic drill for remote or multi‑location work.
- See Recommended Speed and Feed Charts for Annular Cutters
Technical Specifications
| Item ID: MAB 100 K | |
| Motor Power | 9 Amp/110 Volt |
| Weight | 21.8 lbs. |
| Stroke | 2-3/4" |
| Hole Capacity | 1-3/8" dia. |
| Twist Drill Capacity | 1/2" dia. |
| Speed | 460 RPM |
| Magnet Base Size | 6-5/8" L x 3-1/3" W |
| Dimensions | 12-1/2" H x 7-2/5" L x 6-1/5" W |
| Magnetic Force (1"Plate) | 3080 lbs. |
| Arbor Bore | 3/4" Quick-Change Keyless Chuck |
| Automatic Lubrication | Oil Bottle Included |
| 230 V model also available | |
Optional Accessories
Optional
OptionalDepth: 2 3/8" • Diameter: Kit
$0.00
In stock
Optional
OptionalConnection: 3 flats x 3/4" arbor • Size: 2 1/8" length, 1/2" shank
$0.00
In stock
Optional
OptionalRelated PDFs

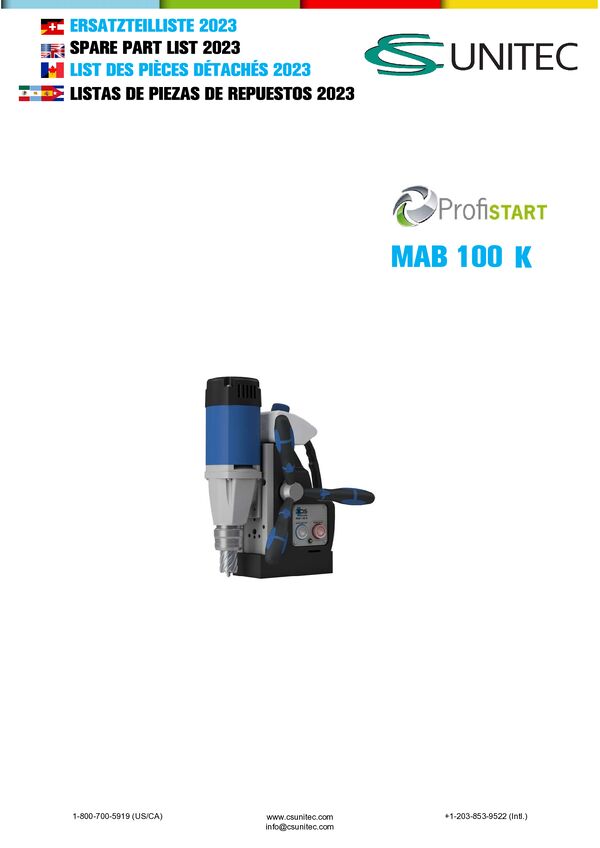

Product Schematic
SCHEM_MAB100K
Download PDF

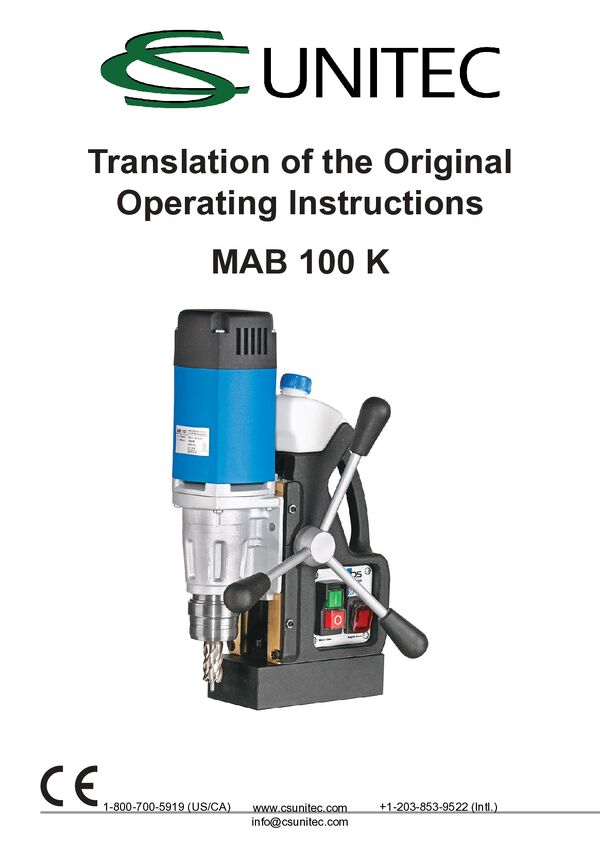

Operating Manual
MANUAL_MAB100K
Download PDF
