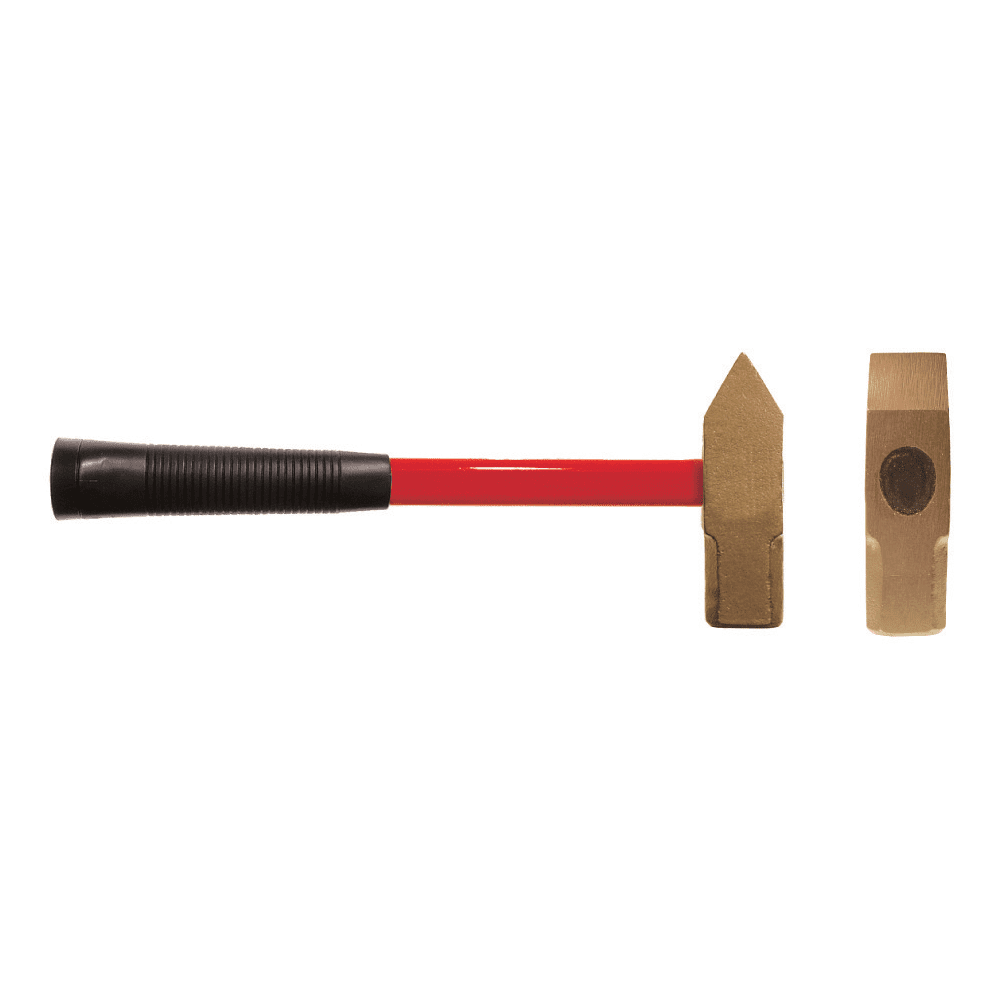

Cross Peen Engineers’ Hammer

When ordering, specify:

	A = Aluminum Bronze	B = Copper Beryllium
Example:	Ex102U-0150A	Ex102U-0150B

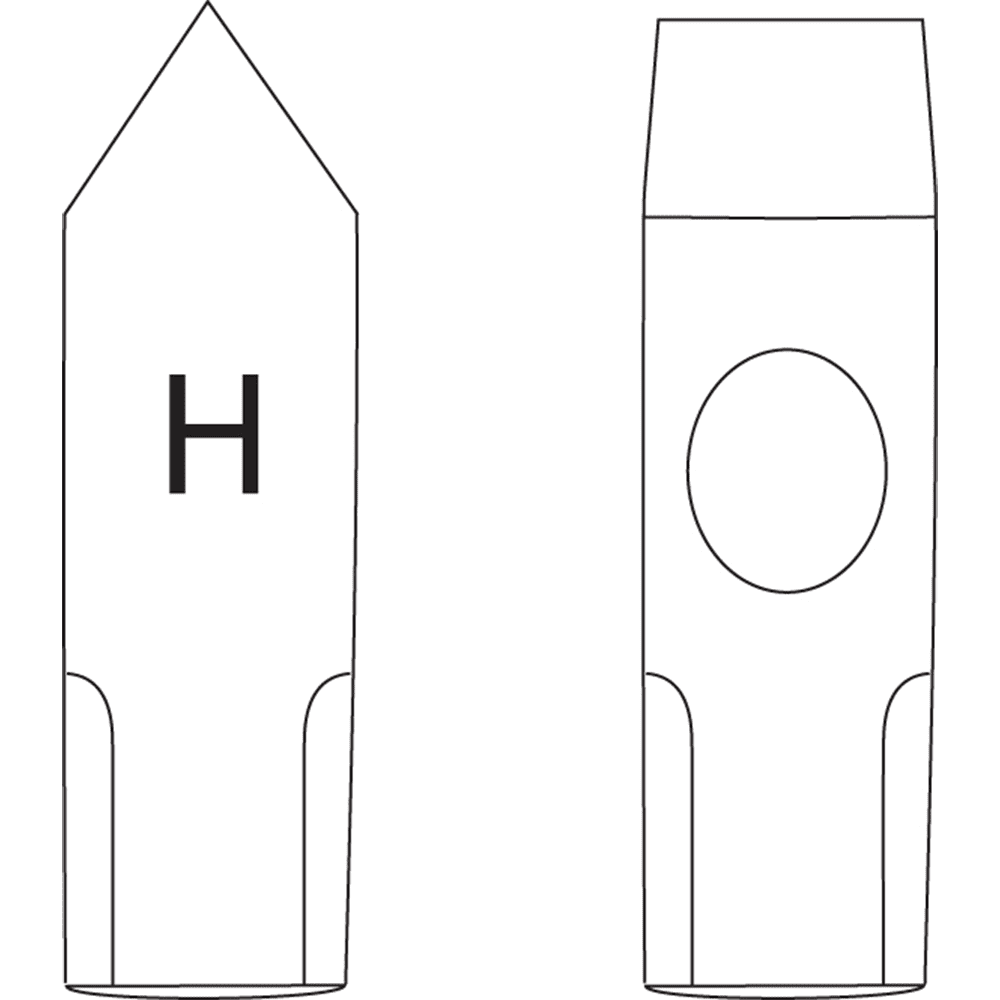

No.	H lbs.	H kg	Handle Length
Ex102U-0150	1.50	0.68	14"/355mm
Ex102U-0250	2.50	1.14	14"/380mm
Ex102U-0350	3.50	1.59	14"/380mm

How to Choose the Correct Alloy for Your Application

	Aluminum-Bronze (AlBr) Alloy	Copper-Beryllium (CuBe2) Alloy
Zone Compatibility	Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2	Fulfill demand in ATEX Directive 1999/92/EC for work in Zones 0, 1, 2, 20, 21 and 22, M1 & M2
Hardness	27 HRC	38 HRC
Durability	Not as durable as CuBe.	Very durable due to high hardness and tensile strength.
Magnetic Properties	Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications.	Non-ferrous components; safer for applications demanding non-magnetic properties.
Composition	Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance	Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance

For More Information on Choosing The Correct Alloy for Your Application - Click Here

Use Guidelines

Proper Use	Misuse
The striking face is designed for general blacksmith work in striking unhardened metal. The peens are used for shaping (fullering) and bending unhardened metal.	Never use a sledge to strike a hammer, sledge or maul. Never use a cross-peen engineers' hammer with loose or damaged handle.

This product can expose you to chemicals including Nickel (Ni) that is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
