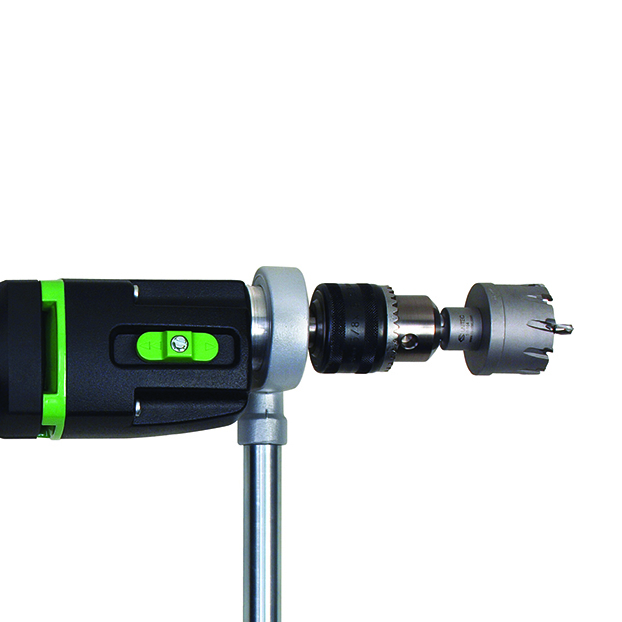

Handheld Electric Drill EHB 16
- Drilling Capacity: Up to 2-1/2″ (wood), Up to 1-1/8″ (aluminum), Up to 5/8″ (steel)
- 5/8″ Chuck
- Load Speed: 2 Gear, Variable Speeds
- Torque Output: 19 ft/lbs.
- Motor Power: 10 Amps
- Handheld Electric Drill
- Box
- Drill Chuck Key
Benefits
- Lightweight, ergonomic design reduces operator fatigue and improves control during extended use or overhead drilling.
- Strong motor performance ensures consistent drilling in wood, metal, plastics, and composite materials.
- The built‑in safety clutch (EHB 16/2.4 S R/L C) automatically disengages the drive mechanism if the bit binds, reducing kickback, preventing sudden torque reaction, and protecting both the user and the tool’s internal components.
- Adjustable front handle reduces operator fatigue and enhances maneuverability during extended drilling or overhead work.
Applications & Usage
- Handheld Electric Drill for clean, accurate holes in sheet metal, aluminum, and mild steel.
- Soft start, variable speed control perfect for drilling into wood, plastics, and light masonry during framing, finishing, and general construction tasks.
- A dependable tool for routine facility maintenance, equipment repair, and service work.
- Precision drilling in small components, brackets, and assemblies where control and accuracy matter.
- A versatile, easy to handle drill for general shop tasks and portable jobsite work.
Technical Specifications
| EHB 16 Hand-Held Electric Drill | ||
| Specification / Model | EHB 16/2.4 S R/L | EHB 16/2.4 S R/L C** |
|---|---|---|
| Motor Power | 10 Amps | 10 Amps |
| Voltage* | 110V | 110V |
| Load Speed (RPM) | 0-430 | 0-760 | 0-430 | 0-760 |
| Drilling Capacity in Wood, Aluminum, Steel | 2-1/2" | 1-1/8" | 5/8" | 2-1/2" | 1-1/8" | 5/8" |
| Torque Output (ft./lbs.) | 19 | 19 |
| Reversible | Yes | Yes |
| Chuck / Arbor | 5/8" Geared | 5/8" Geared |
| Weight | 11 lbs. | 11 lbs. |
| ** Includes slip clutch Drills supplied in a box with drill chuck key. Special OEM motors available upon request. | ||
