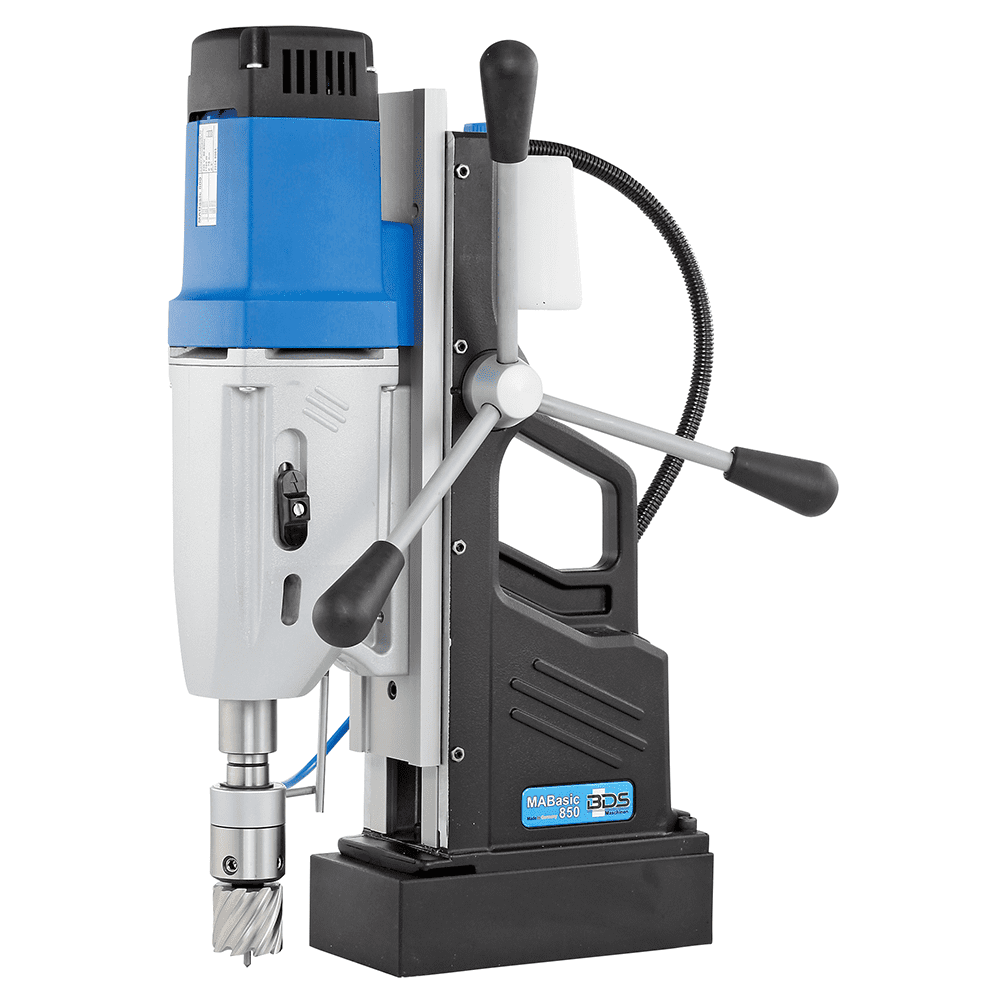

MABasic 850
- Cutting Capacity: 3-1/16″ Diameter
- Twist Drill Capacity: 1-1/4″ Diameter
- Stroke: 10″
- Morse Taper: MT3
- Speed: 110 / 175 / 245 / 385 RPM (4 gears)
- Magnetic Force: 6000 lbs.
- Equipped with Electronic Safety Shutoff Sensor
Includes (testing):
- MABasic 850
- 1/2″ chuck
- Pilot pin
- Carrying case
- Safety strap
- Carabin hook
- Allen keys
- Operating manual
- Warranty certificate
Benefits
- Four gear, mechanical gearbox delivers optimal torque and RPM for a wide range of drilling, reaming, countersinking, and tapping operations.
- 3/4" direct arbor with automatic cooling and high capacity annular cutting (up to 3-1/16").

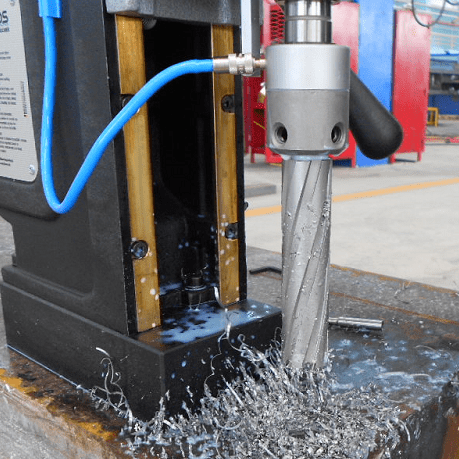

- Integrated lubrication system ensures smooth drilling, reduced heat, and extended cutter life during continuous operation.
- Simple arrangement of controls for one-handed operation. Ergonomic design improves handling and reduces operator fatigue despite the drill’s higher power output.
- Strong electromagnetic base provides secure adhesion on flat, vertical, and overhead steel surfaces for stable, accurate drilling.
Applications & Usage

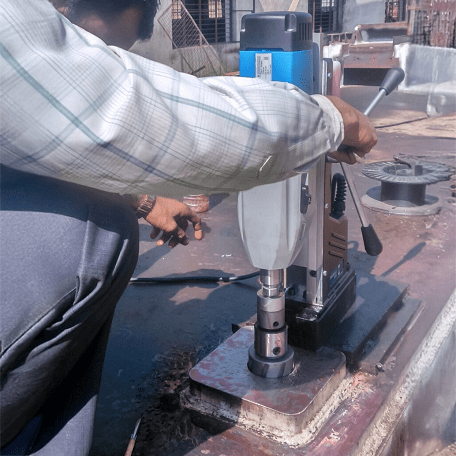

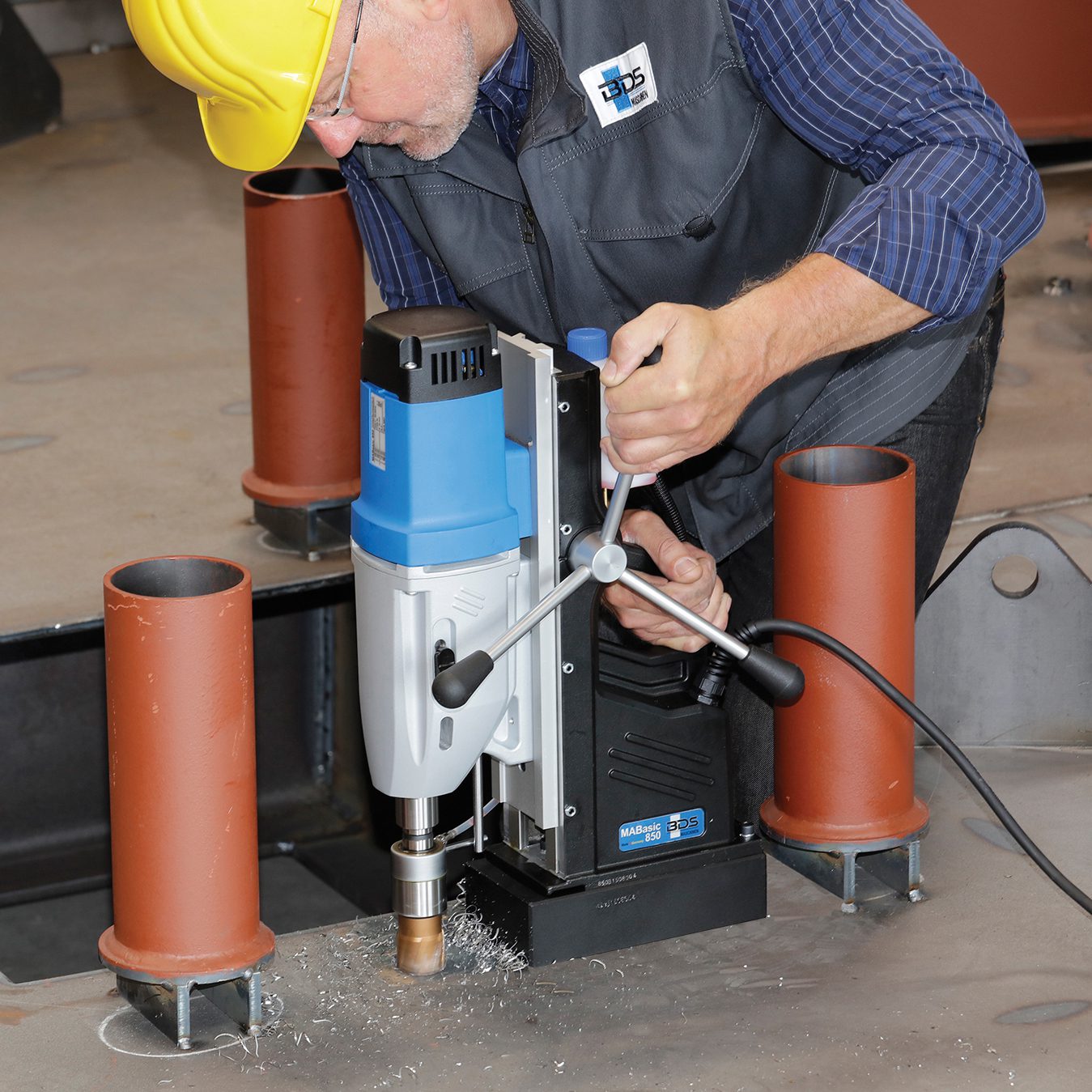

- MABasic 850 for drilling large diameter holes in structural steel, plate, beams, and heavy assemblies.
- Ideal for fabrication shops requiring high torque and multi‑speed control.
- For vertical, horizontal, and overhead drilling on I‑beams, columns, and steel frameworks.
- High magnetic holding force ensures stability on job sites with vibration or uneven surfaces.
- Drilling mounting holes for large conduit supports, cable trays, HVAC equipment, and mechanical systems.
- Ideal for installers who need a powerful, reliable magnetic drill for thick steel.
- Useful for onsite drilling in industrial plants, refineries, power stations, and steel mills.
Technical Specifications
| MABasic 850 | |
| Motor Power | 16 Amp / 110 Volt |
| Weight | 53 lbs. |
| Stroke | 10" |
| Hole Capacity | 3-1/16" dia. |
| Twist Drill Capacity | 1-1/4" dia. |
| Speeds | 110 / 175 / 245 / 385 RPM (4 gears) |
| Magnet Base Size | 8-5/8" L x 4-1/3" W |
| Dimensions | 19-3/8" H x 11-5/8" L x 8-1/4" W |
| Magnetic Force (1" plate) | 6000 lbs. |
| Arbor Bore | 3/4" Weldon Shank |
| Spindle | MT3 |
| Internal Lubrication | Included |
Optional Accessories
Optional
Optional
Optional
OptionalConnection: 3 flats x 3/4" arbor • Size: 2 1/8" length, 1/2" shank
$0.00
In stock
Optional
OptionalRelated PDFs

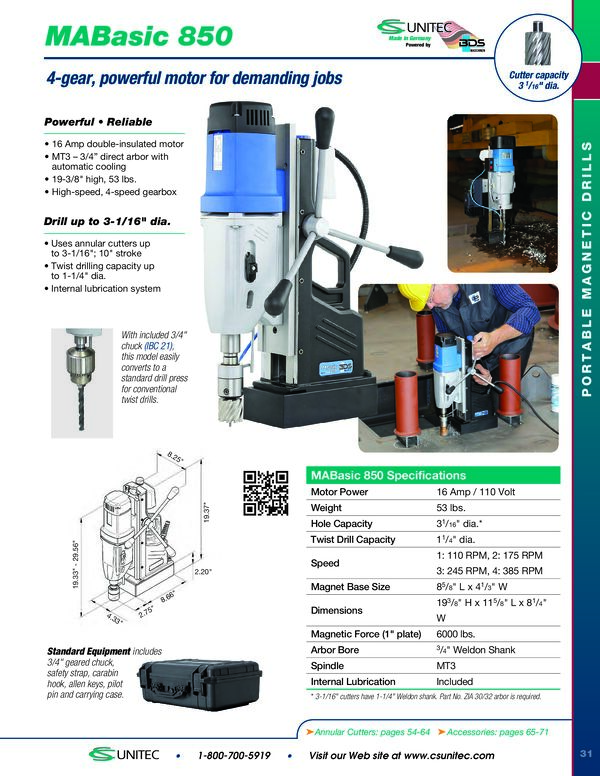

Catalog PDF
CAT_MABasic850
Download PDF

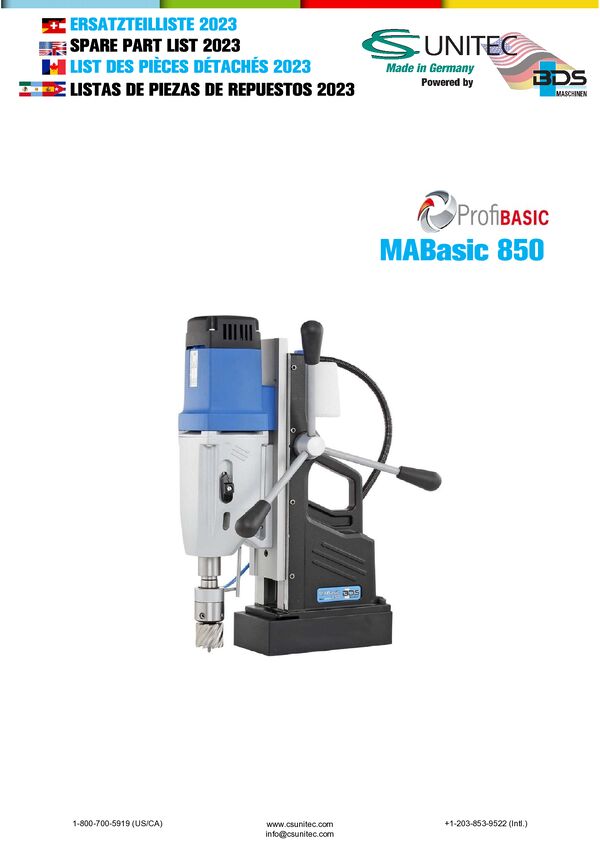

Product Schematic
SCHEM_MABasic850
Download PDF
Operating Manual
MANUAL_MABasic
Download PDF
