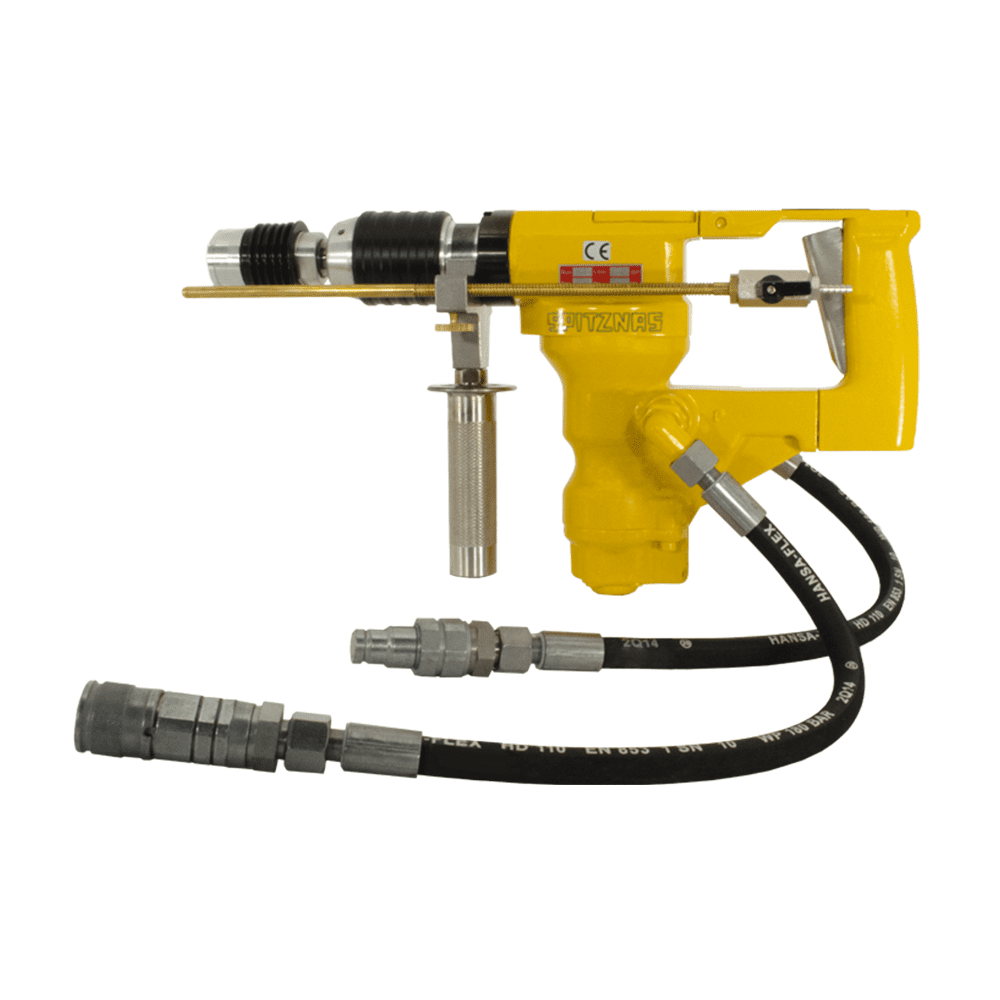

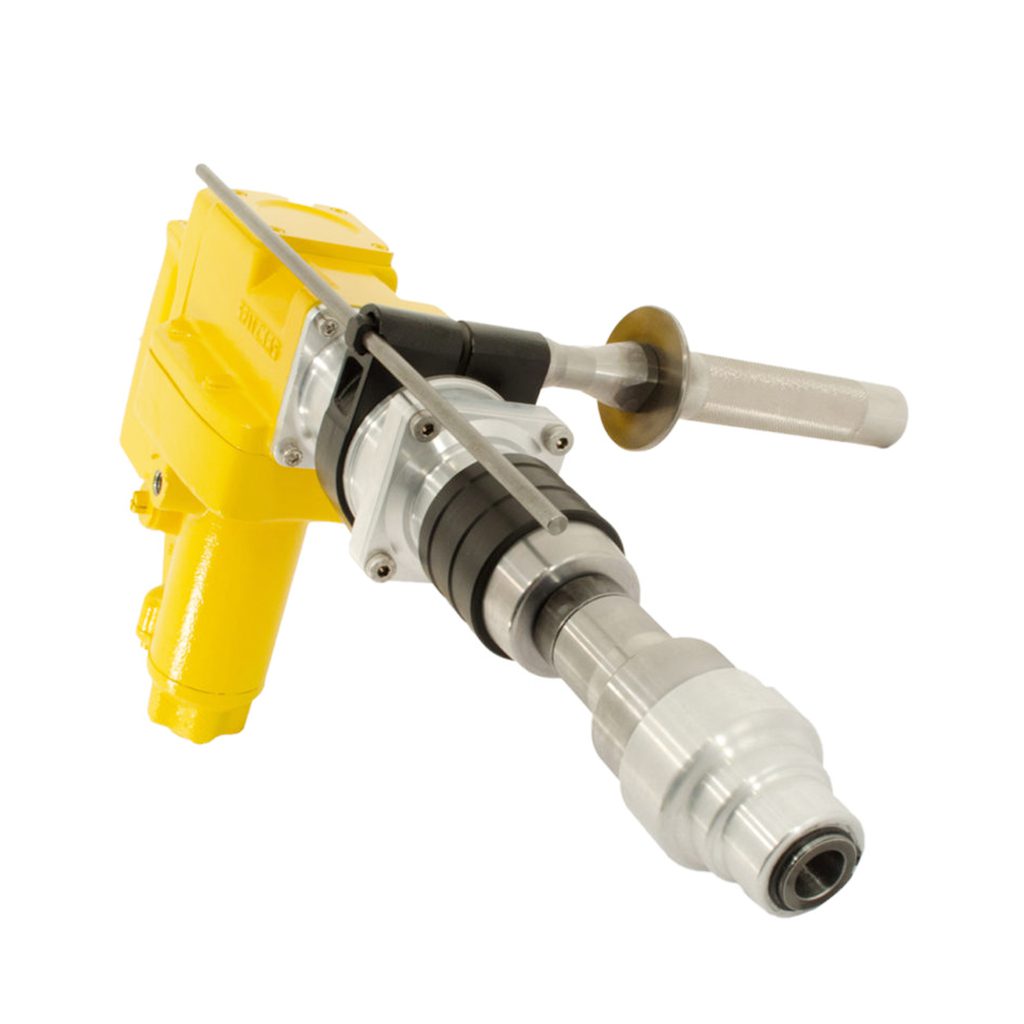

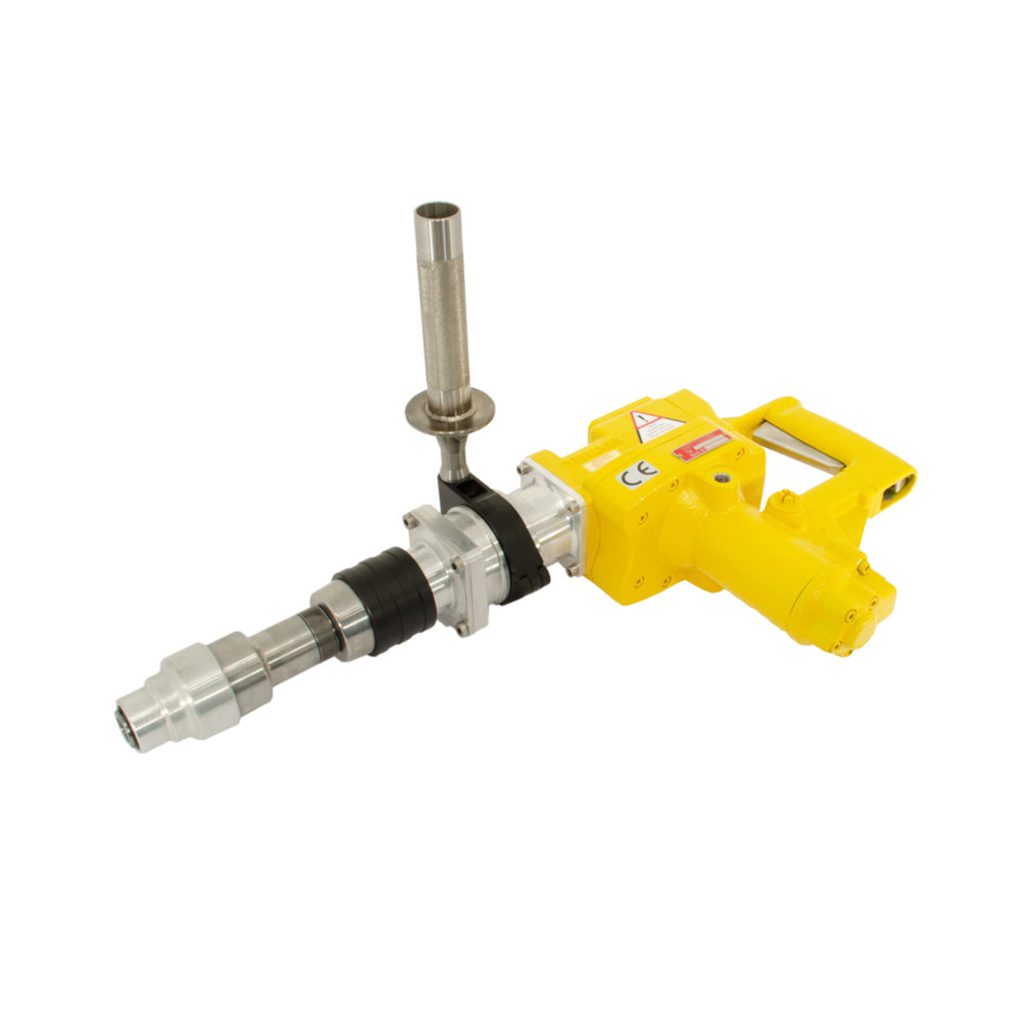

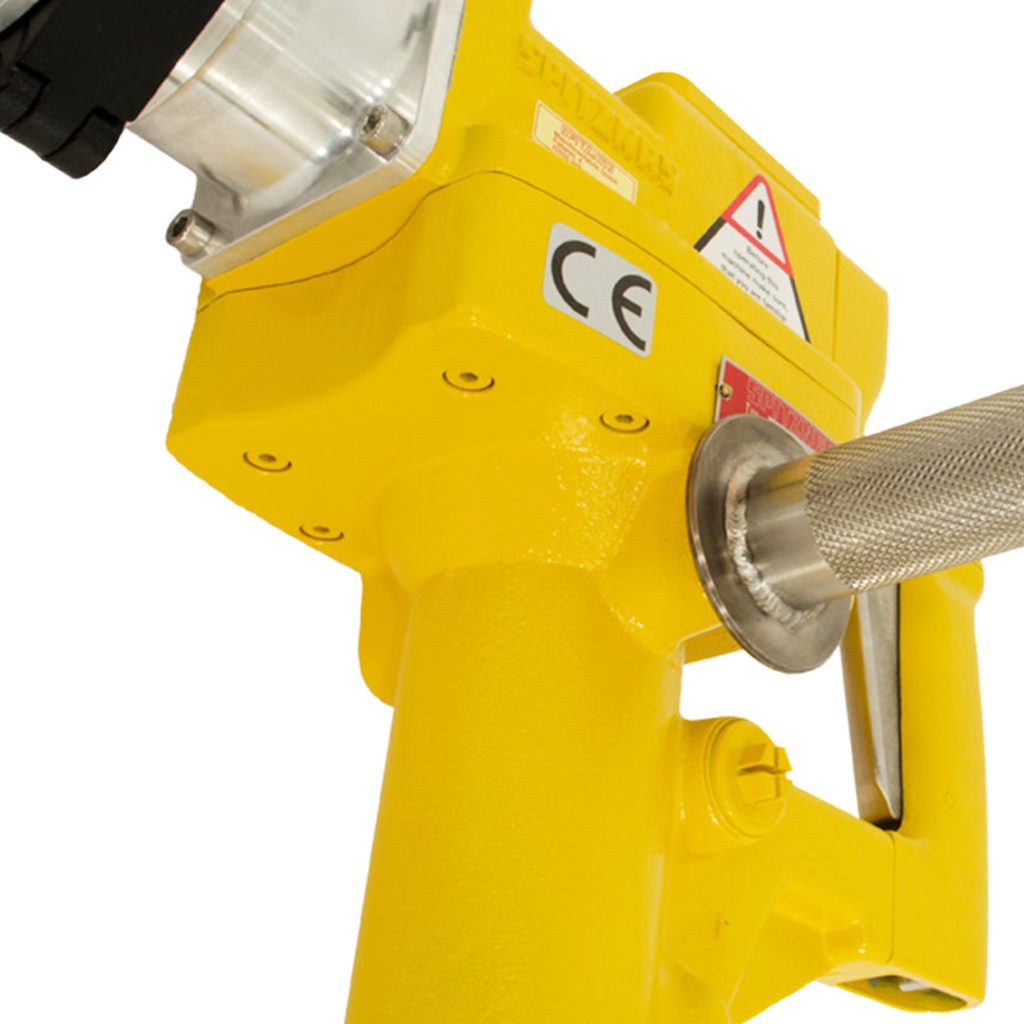

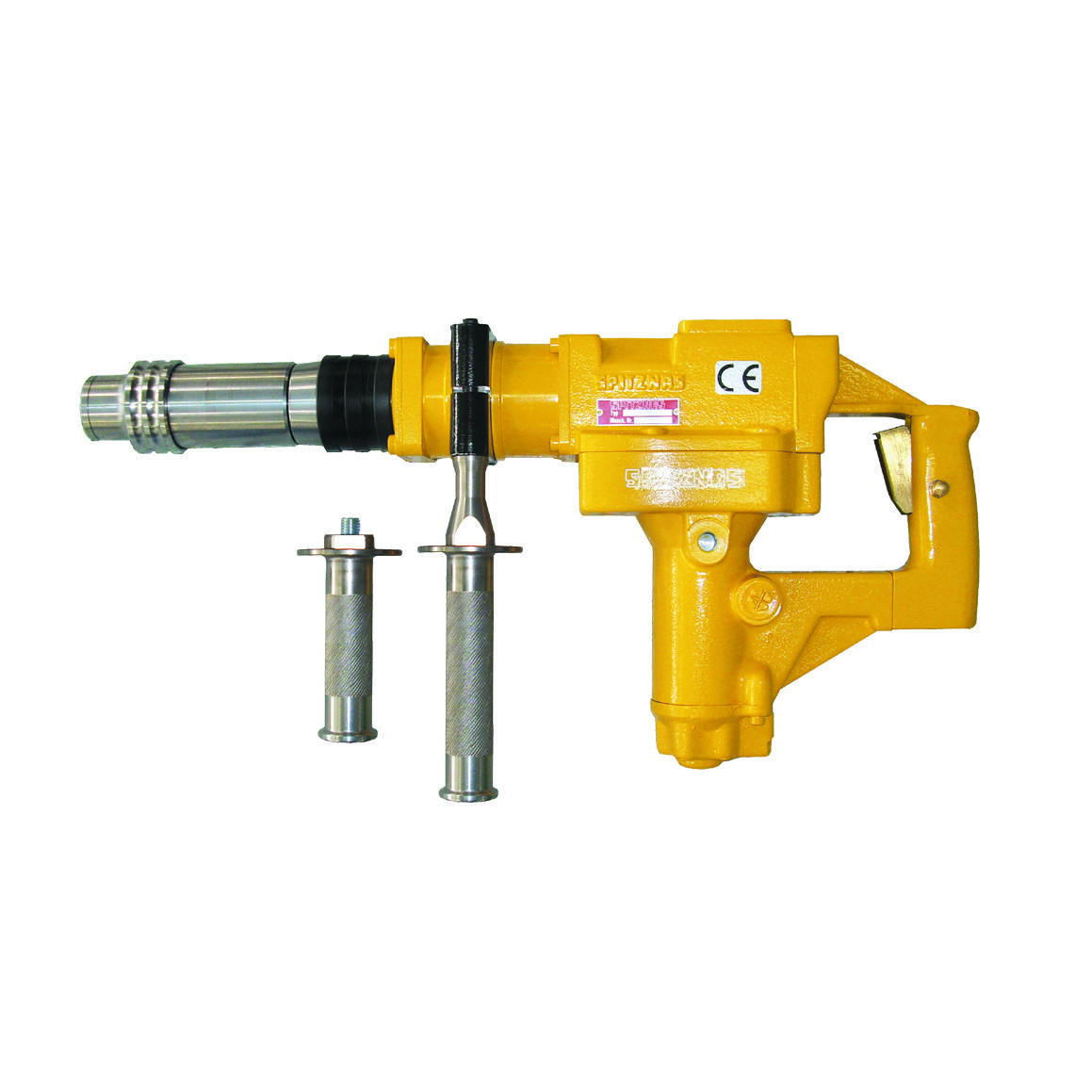

Hydraulic Rotary Hammer Drill SDS Plus & SDS Max
- Ideal for Underwater / Sub Sea use
- Concrete Drilling Capacity: Up to 2″ (solid bit), Up to 6″ (core bit)
- Wood Drilling Capacity: Up to 1-1/4″ (twist drill)
- Variable Speed
- Safety slip clutch prevents overloading
- Power: 0.8 HP (SDS Plus) & 1.8 HP (SDS Max) (at 2000 PSI)

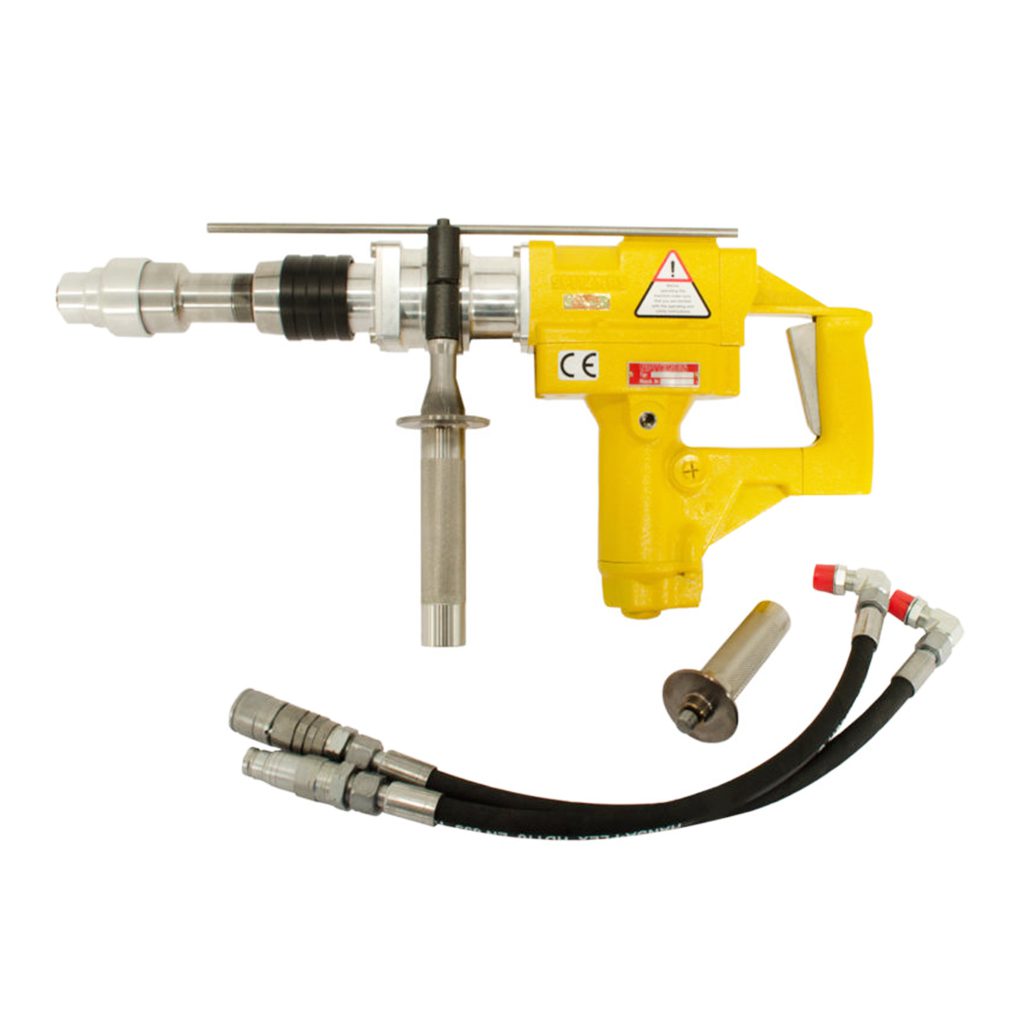

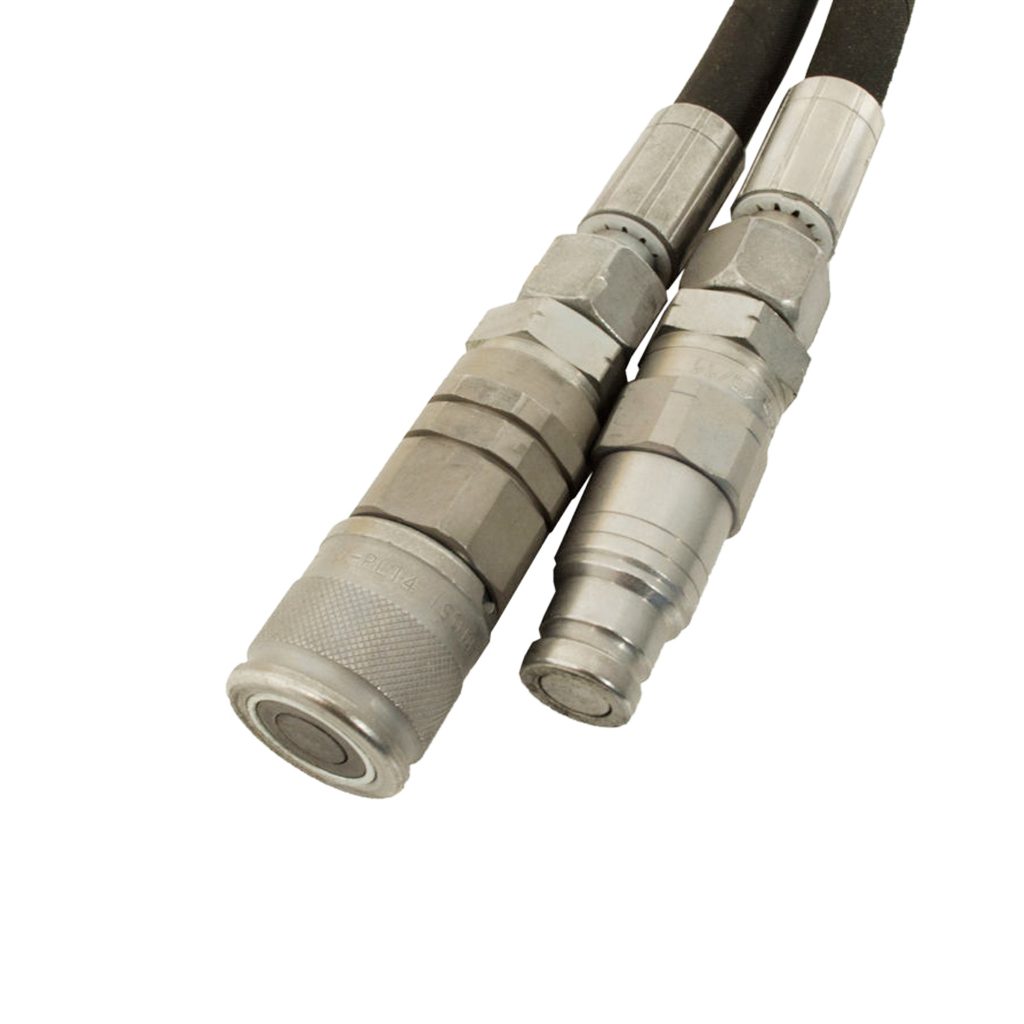

- Hydraulic Whip Hoses & FF Couplings included
- Hydraulic power units available
Includes (testing):
- Includes Hydraulic Rotary Hammer Drill
Benefits
- Accepts a wide range of drill bits, chisels, and demolition accessories, depending on the model. Holes cost less with SDS Bits.
- Easier to handle in overhead, vertical, or awkward drilling positions with second handle position.
- Built with heavy duty housings and internal components designed to withstand harsh jobsite conditions. Permanent lubrication, sealed gear, and built in oiler for hydraulic motor.
- Operate without electricity, making them suitable for wet, dusty, explosive, or confined spaces.
Applications & Usage
- Hydraulic Rotary Hammer Drill ideal for underwater job site demands.
- Drilling anchor holes, dowel holes, penetrations, and fastener points in reinforced concrete, block, and stone.
- Hammer drill holes in concrete, brick and masonry.
- Rotary drilling mode for straight drilling of steel and wood.
- Performs exceptionally well in wet, corrosive, and salt environments.
Technical Specifications
| 2 2426 0010 - SDS Plus (Drill pressure reducing valve built into handle) | |
| Blows / Minute (BPM) | 0-3400 |
| Drill Speed (RPM) | 0-625 |
| Power at 2000 PSI | 0.8 HP |
| Flow at 2000 PSI | 5.8-13.2 GPM |
| Tool System | SDS Plus |
| Solid Bit (Concrete) | 1" dia. |
| Core Bit (Concrete) | 3" dia. |
| Twist Drill (Wood) | 3/4" dia. |
| ATEX Class. | EX II 2GC T5 |
| Hose Connection (Included) | SAE #8 port for whip hose & FF Couplings |

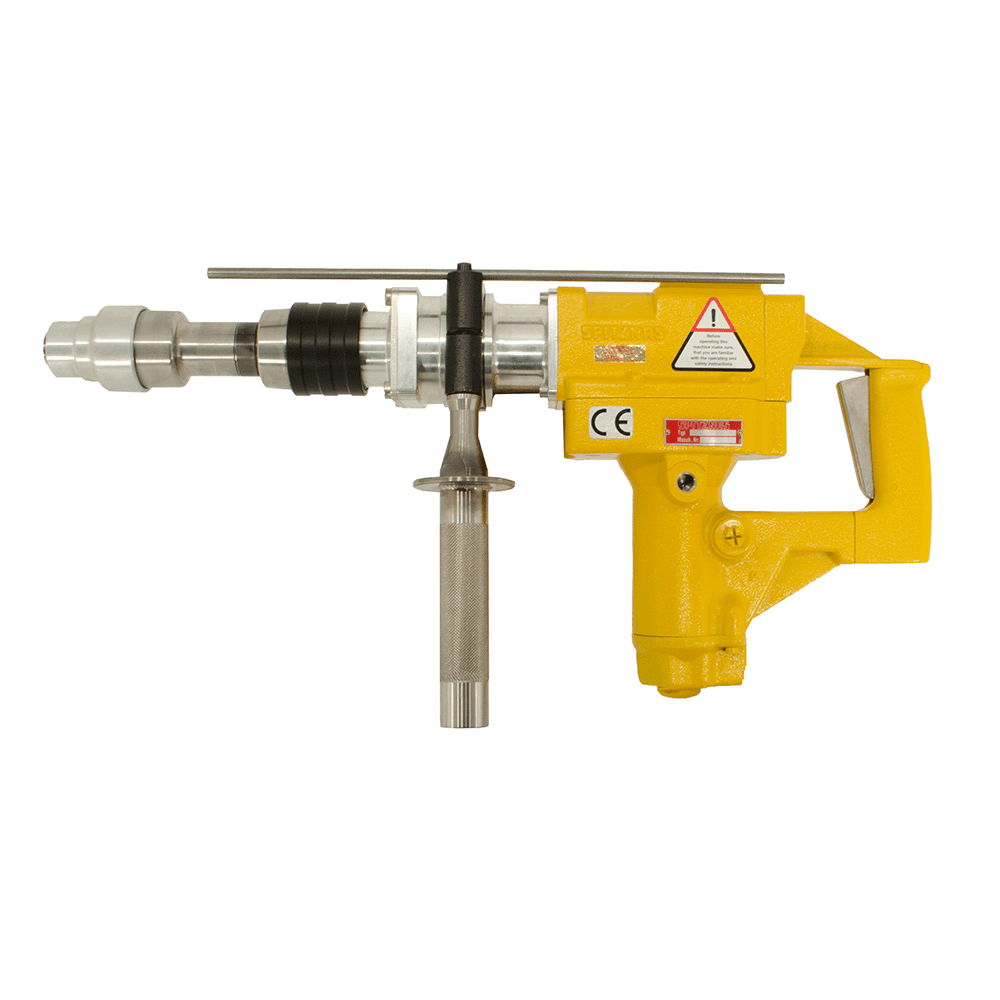

| 2 2418 0020 - SDS Max (Drill includes 2 2406 9700 pressure reducing valve for 2000 PSI) | |
| Blows / Minute (BPM) | 0-2500 |
| Drill Speed (RPM) | 0-250 |
| Power at 2000 PSI | 1.8 HP |
| Flow at 2000 PSI | 2.6-13.2 GPM |
| Tool System | SDS Max |
| Solid Bit (Concrete) | 2" dia. |
| Core Bit (Concrete) | 6" dia. |
| Twist Drill (Wood) | 1-1/4" dia. |
| Dimensions | 19-1/2" x 11-1/8" x 7-1/2" |
| Weight | 31 lbs. |
| Hose Connection (Included) | SAE #8 port for whip hose & FF Couplings |
| Name | Item ID: | Description |
| Hydraulic Pressure Reducing Valve | 2 2406 9900 | Reduces the output pressure of larger-output hydraulic units (i.e. backhoes, large earth tractors, excavators, service trucks, etc.) from max. 5075 PSI (350 bar) to 1160 PSI (80 bar) working pressure. |
| Closed Center Flow Control Valve | 38632 | Adapts open center hydraulic tools to closed center |
| Hydraulic Hammer Drills - Pressure reducing valves are available to reduce pressure from 2000 PSI or 5000 PSI. Available with optional closed center. | ||
Optional Accessories
Optional
Optional
Optional
Optional
Optional
OptionalRelated PDFs
Catalog PDF 1
CAT_Rotary_Hammer_Drills
Download PDF
Catalog PDF 2
CAT_Contractor_Tools_2022
Download PDF

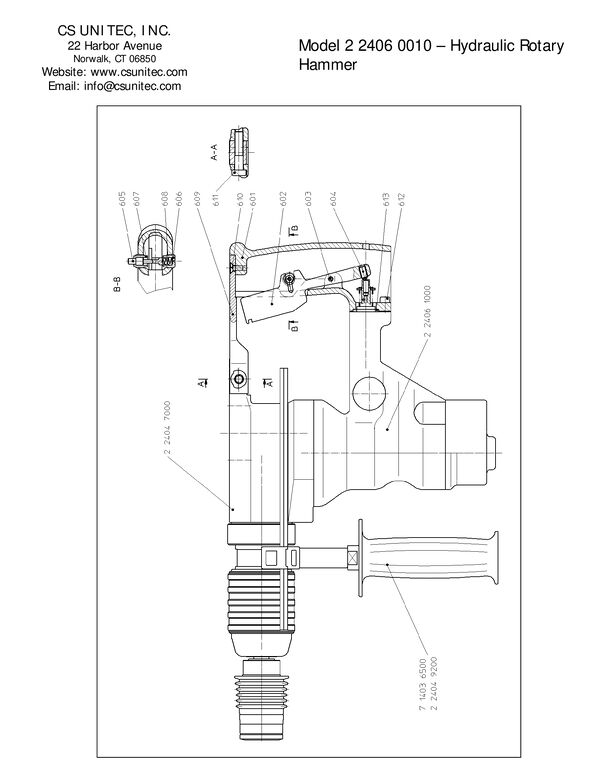

Product Schematic 1
SCHEM_224060010
Download PDF

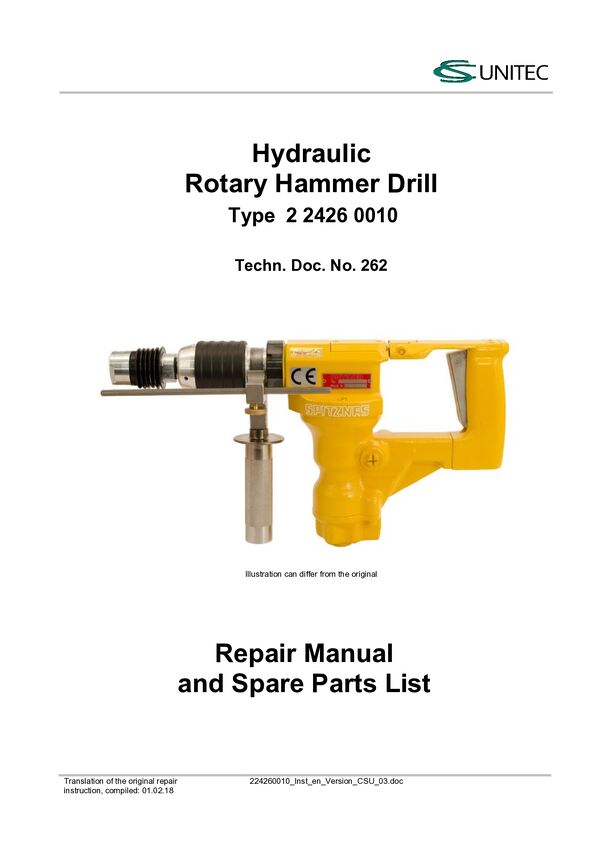

Product Schematic 2
SCHEM_224260010
Download PDF
Product Schematic 3
SCHEM_22418
Download PDF

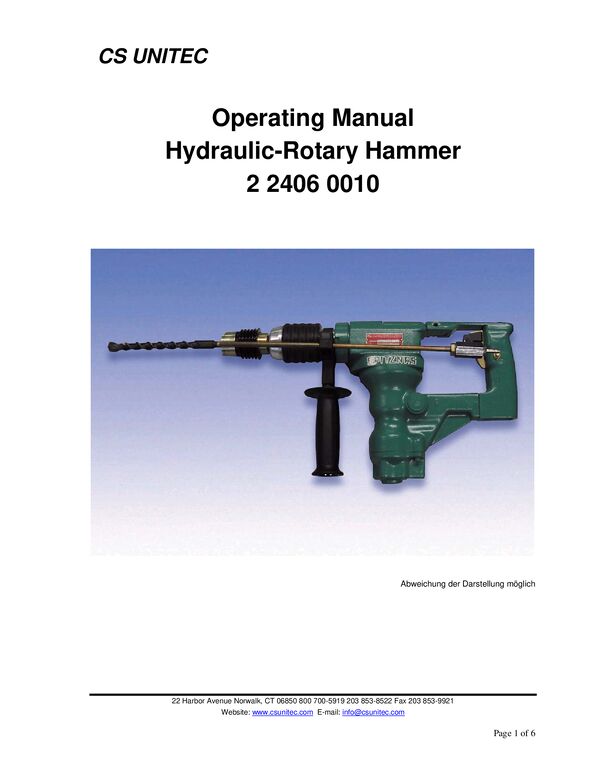

Operating Manual 1
MANUAL_224060010
Download PDF

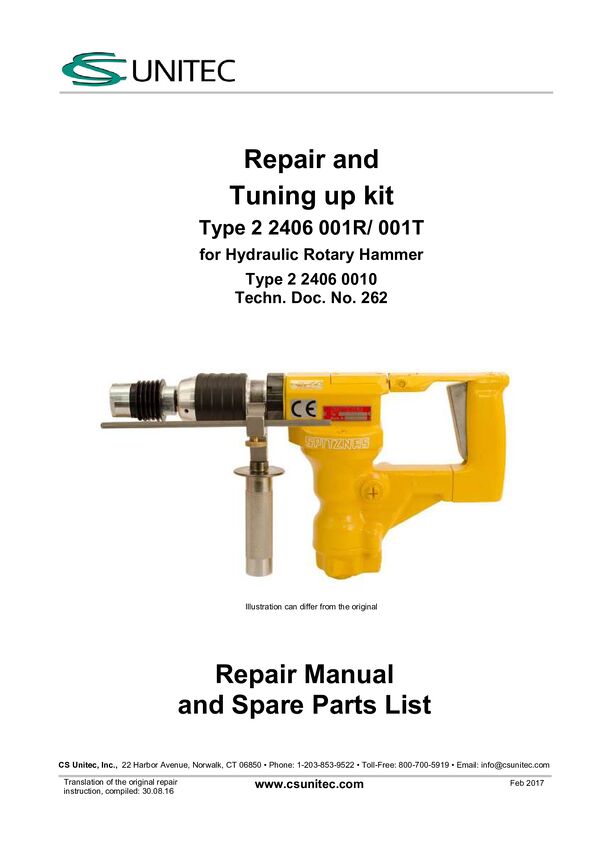

Operating Manual 2
REPAIR_224060010
Download PDF

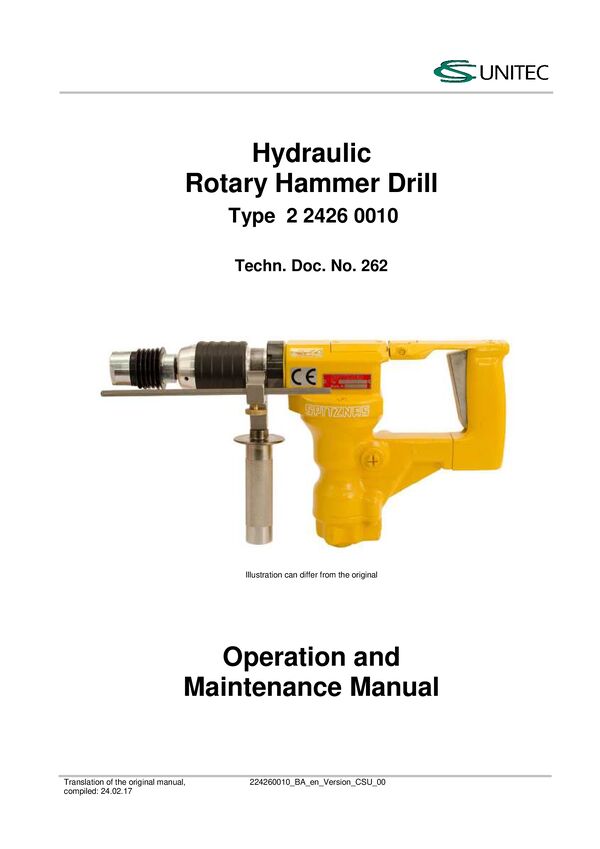

Operating Manual 3
