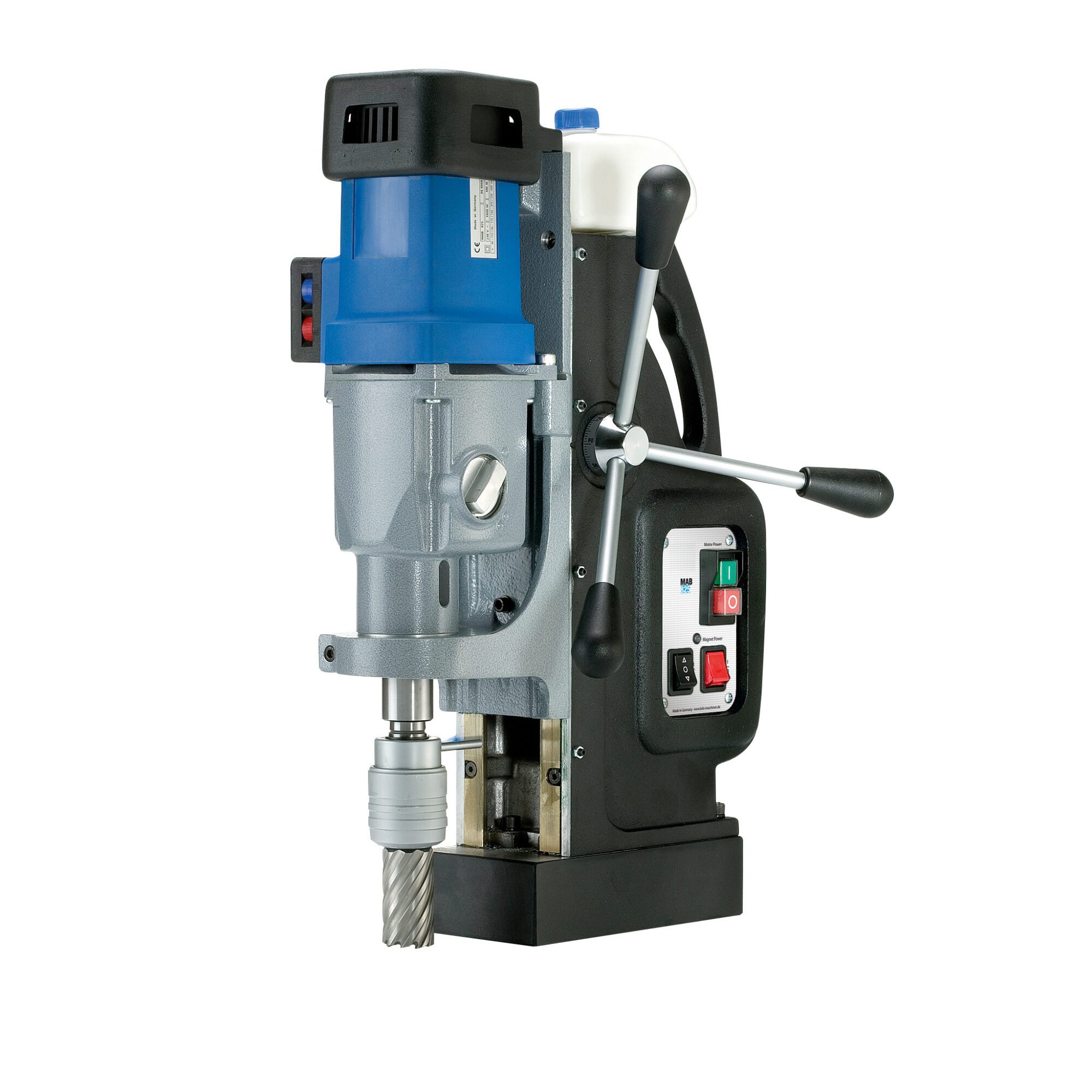

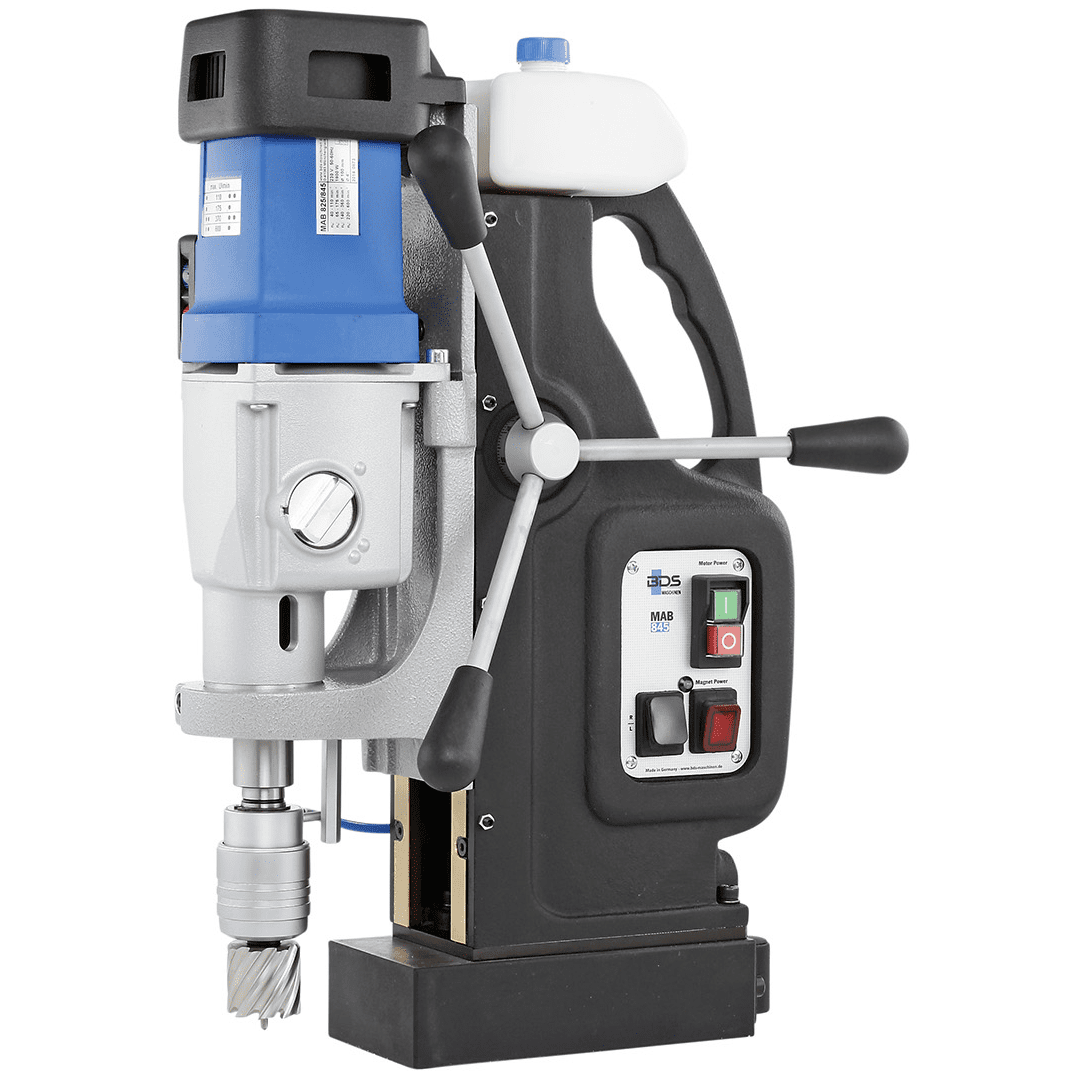

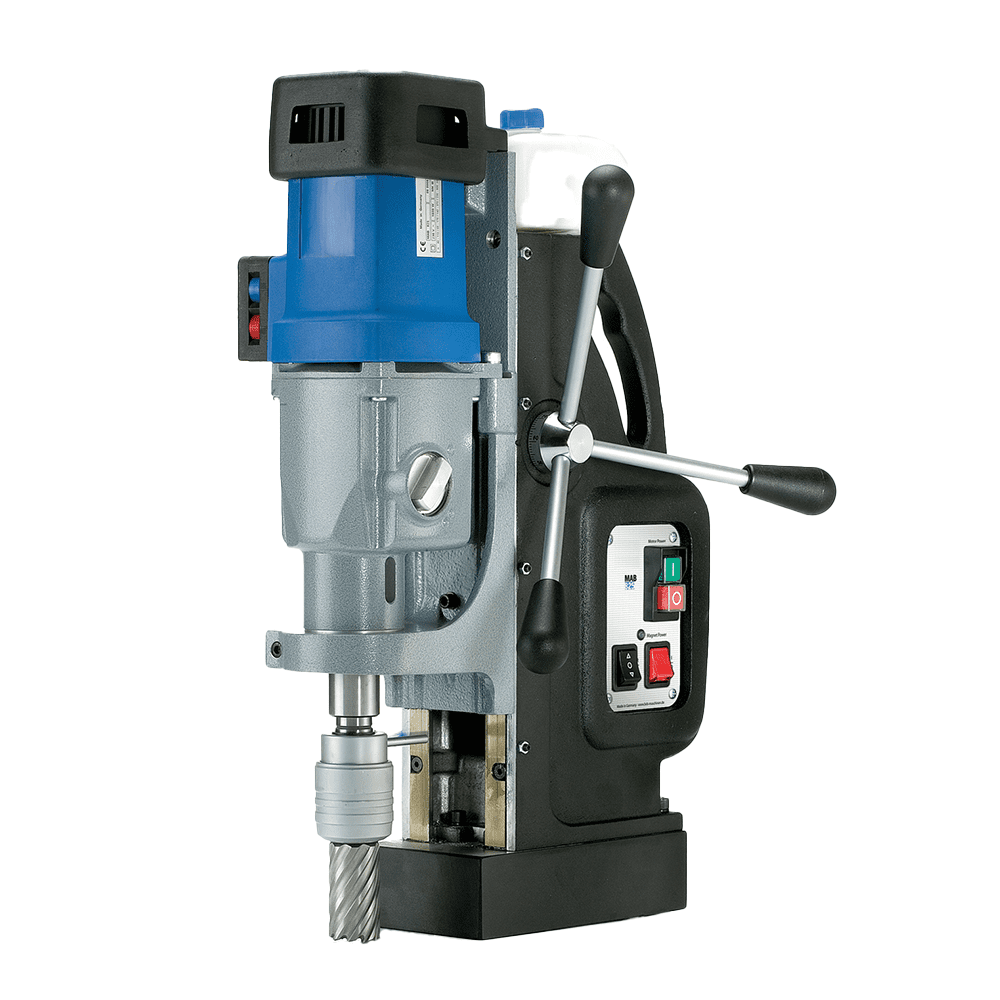

MAB 825 / 825 V & MAB 845 / 845 V
- Cutting Capacity: 4-1/16″ Diameter
- Twist Drill Capacity: 1-1/4″ Diameter
- Stroke: 10″
- Morse Taper: MT3
- Reversible motor for tapping (up to 1-3/16″) and reaming (up to 1-1/4″)
- Magnetic Force: 6600 lbs.
- 4 Variable Speed Motor
- Quick-change keyless cutter system
- Optional Automatic Hands-Free Drilling and/or Swivel Base
- Equipped with Electronic Safety Shutoff Sensor
- MAB 825, 825 V, or 845
- Quick-change arbor system KEYLESS Weldon 3/4″
- Manual arbor with set screws, Weldon 3/4″, MT3
- Arbor 1-1/4″ Weldon, MT3
- 1″ Pilot pin
- 2″ Pilot pin
- 3″ Pilot pin
- 4″ Pilot pin
- Safety chain
- Hexagon socket screw key SW 6
- Drift key MT3 (P/N 5301)
- Warranty certificate
- Heavy-duty plastic carrying case
Benefits
- Powerful and reliable
- Designed for continuous use
- Quick-change keyless cutter system
- Integrated cutting oil reservoir
- Automatic internal lubrication
- Internal cable routing for damage reduction

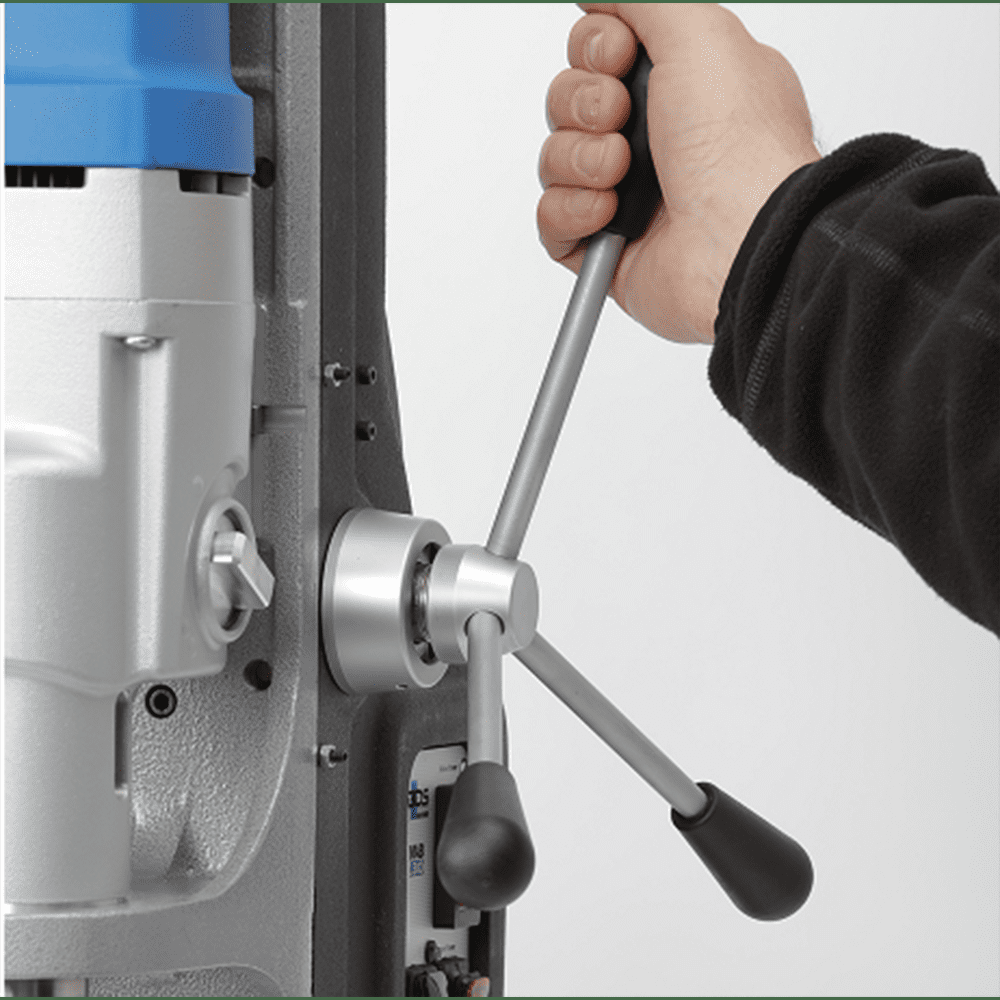

- Simple, ergonomic arrangement of controls for one-handed operation
- SafeMag™: green/red LED magnetic force indicator for safe operation.
- CoolMag™: magnet overheating protection.
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
Applications & Usage

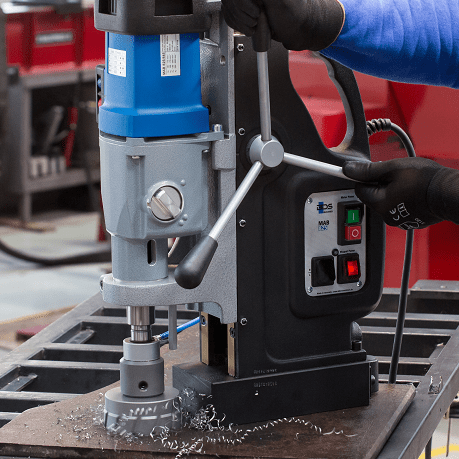

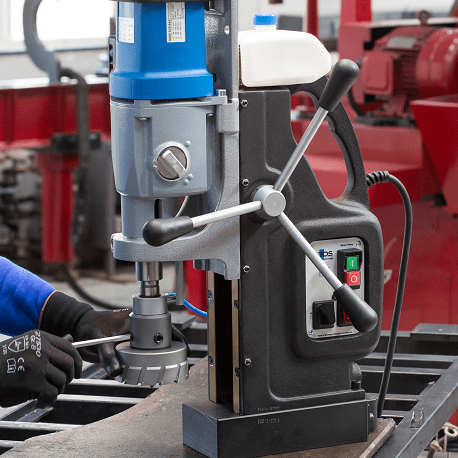

- MAB 825 & MAB 845 are for drilling large diameter holes in thick structural steel, plate, beams, and heavy assemblies.
- Ideal for fabrication shops requiring high torque, precision, and multi‑speed control.

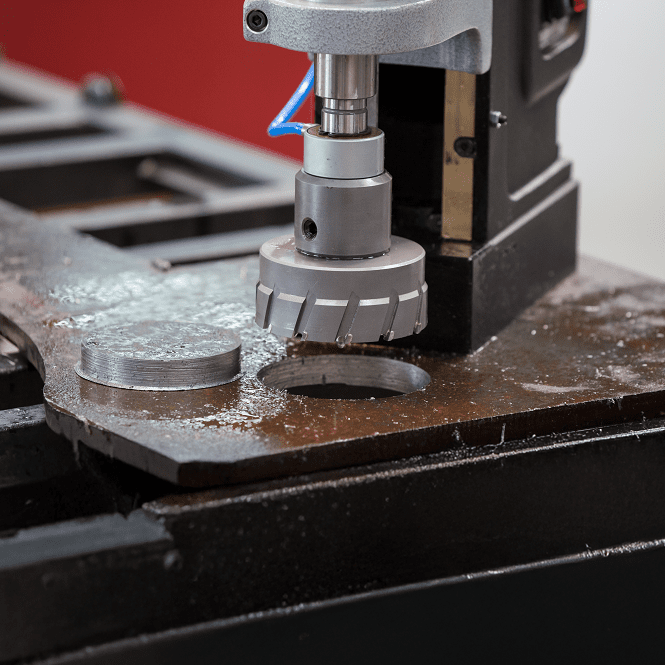

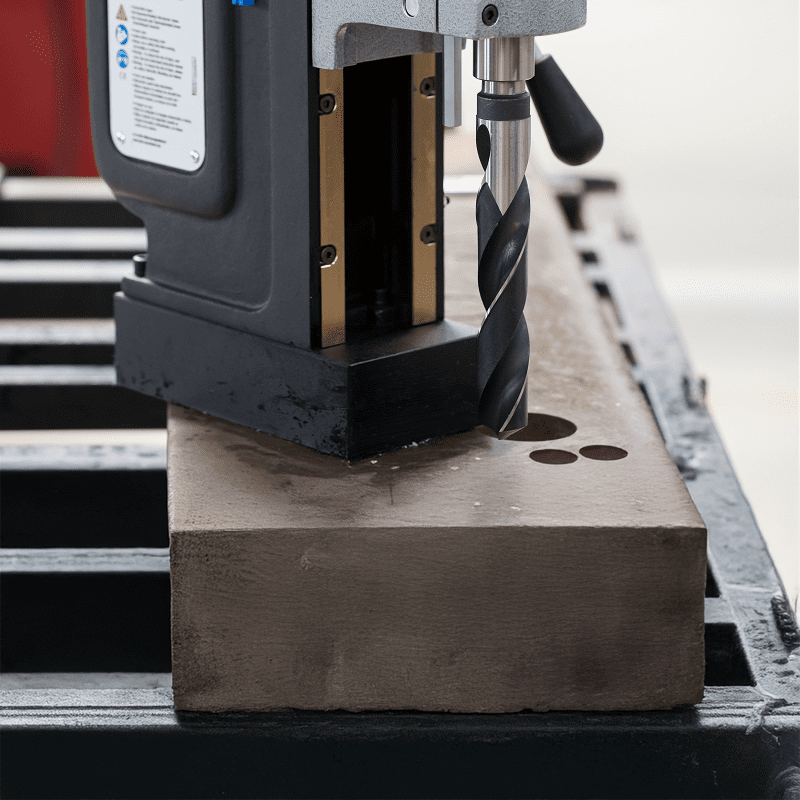

- Supports annular cutters, twist drills, reamers, countersinks, and tapping operations.
- Suitable for steel mills, refineries, power plants, and heavy industrial facilities.
- Automatic feed models are ideal for production applications.
Technical Specifications
| MAB 825 | |
|---|---|
| Motor Power | 16 Amp / 110 Volt |
| Weight | 68 lbs. |
| Stroke | 10" |
| Hole Capacity | 4-1/16" dia. |
| Twist Drill Capacity | 1-1/4" dia. |
| Tapping Capacity | 1-3/16" dia. |
| Ream Capacity | 1-1/4" dia. |
| Speeds | 40-110, 65-175, 140-360, 220-600 RPM |
| Magnet Base Size | 8-5/8" L x 4-1/3" W |
| Dimensions | 18-5/8" H x 14-7/16" L x 9-7/16" W |
| Magnetic Force (1" plate) | 6600 lbs. |
| Arbor Bore | 3/4" and 1-1/4" Weldon Shank, standard |
| Spindle | MT3 |
| Automatic Lubrication | Included |
| Automatic Feed | Order model no. MAB 825 V |
| MAB 845 | |
|---|---|
| Motor Power | 16 Amp / 110 Volt |
| Weight | 68 lbs. |
| Stroke | 10" |
| Hole Capacity | 4-1/16" dia. |
| Twist Drill Capacity | 1-1/4" dia. |
| Tapping Capacity | 1-3/16" dia. |
| Speeds | 40-110, 65-175, 140-360, 220-600 RPM |
| Magnet Base Size | 8-5/8" L x 4-1/3" W |
| Dimensions | 18-5/8" H x 14-7/16" L x 9-7/16" W |
| Magnetic Force (1" plate) | 6600 lbs. |
| Arbor Bore | 3/4" and 1-1/4" Weldon Shank, standard |
| Spindle | MT3 |
| Automatic Lubrication | Included |
| Swivel Base | Included |

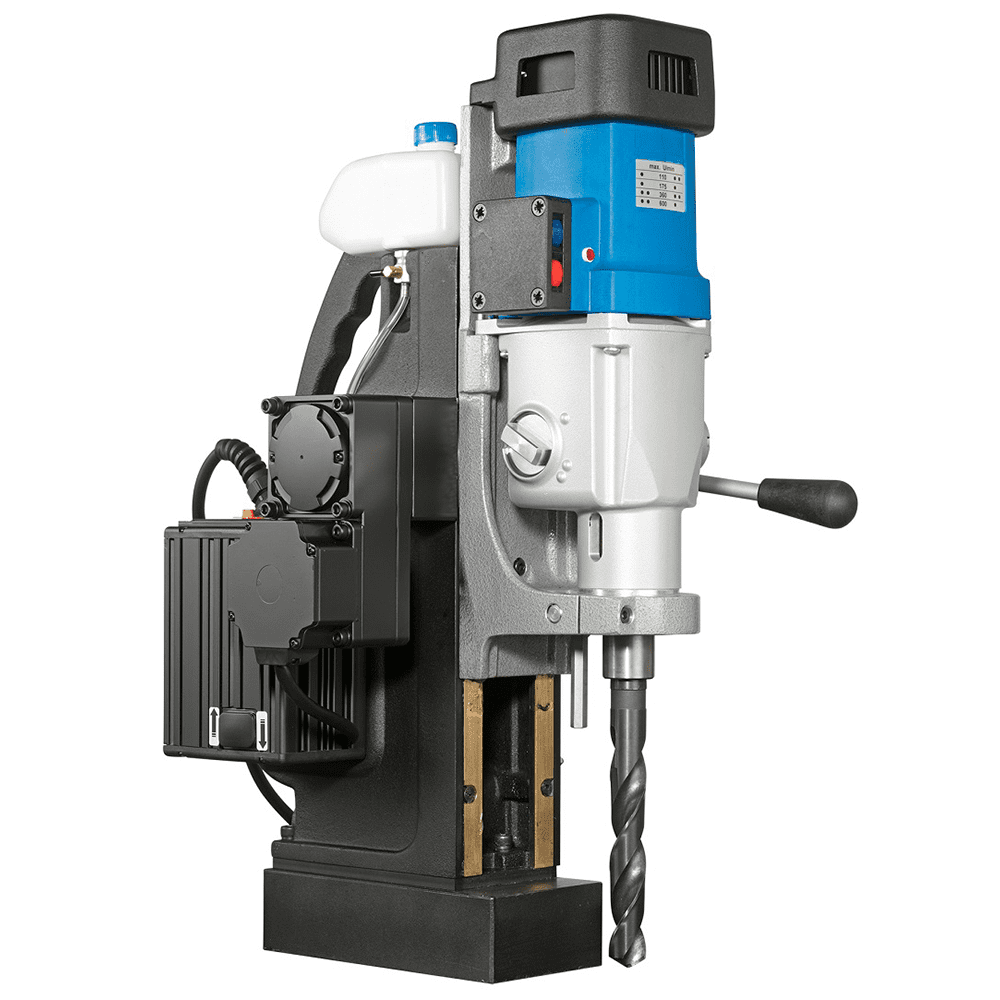

| MAB 825 V (Automatic Drilling) | |
|---|---|
| Motor Power | 16 Amp / 110 Volt |
| Weight | 68 lbs. |
| Hole Capacity | 4-1/16" dia. |
| Twist Drill Capacity | 1-1/4" dia. |
| Tapping Capacity | 1-3/16" dia. |
| Speeds | 40-110, 65-175, 140-360, 220-600 RPM |
| Magnet Base Size | 8-5/8" L x 4-1/3" W |
| Dimensions | 18-5/8" H x 14-7/16" L x 9-7/16" W |
| Magnetic Force (1" plate) | 6600 lbs. |
| Arbor Bore | 3/4" and 1-1/4" Weldon Shank, standard |
| Spindle | MT3 (optional) |
| Automatic Lubrication | Included |
| Automatic Feed | Included |
| MAB 845 V (Automatic Drilling and Swivel Base) | |
|---|---|
| Motor Power | 16 Amp / 110 Volt |
| Weight | 68 lbs. |
| Hole Capacity | 4-1/16" dia. |
| Twist Drill Capacity | 1-1/4" dia. |
| Tapping Capacity | 1-3/16" dia. |
| Stroke | 10" |
| Speeds | 40-110, 65-175, 140-360, 220-600 RPM |
| Magnet Base Size | 8-5/8" L x 4-1/3" W |
| Dimensions | 18-5/8" H x 14-7/16" L x 9-7/16" W |
| Magnetic Force (1" plate) | 6600 lbs. |
| Arbor Bore | 3/4" and 1-1/4" Weldon Shank, standard |
| Spindle | MT3 |
| Automatic Lubrication | Included |
| Swivel Base | Included |
| Automatic Feed | Included |
Optional Accessories
Optional
OptionalDepth: 2 3/8" • Diameter: Kit
$0.00
In stock
Optional
OptionalConnection: 3 flats x 3/4" arbor • Size: 2 1/8" length, 1/2" shank
$0.00
In stock
Optional
OptionalRelated PDFs
Catalog PDF
CAT_MAB825845
Download PDF

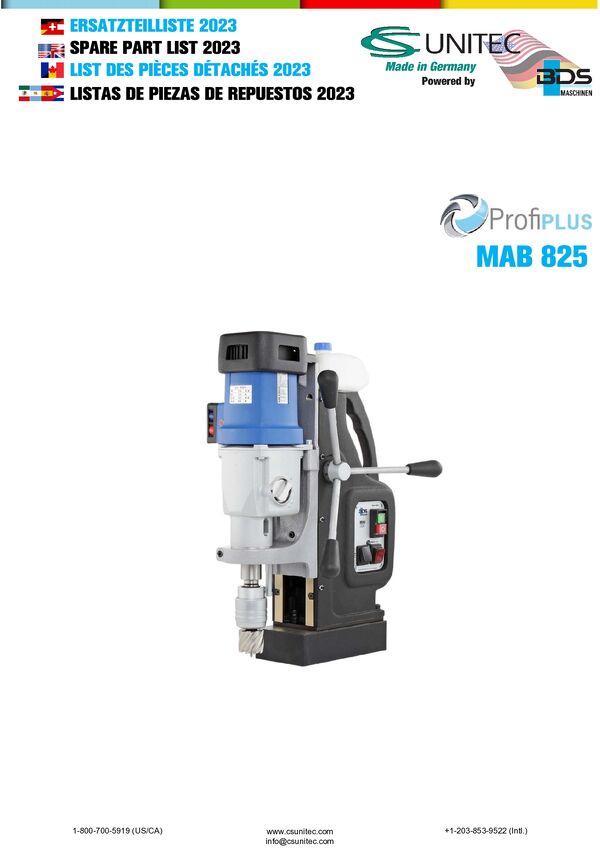

Product Schematic 1
SCHEM_MAB825
Download PDF

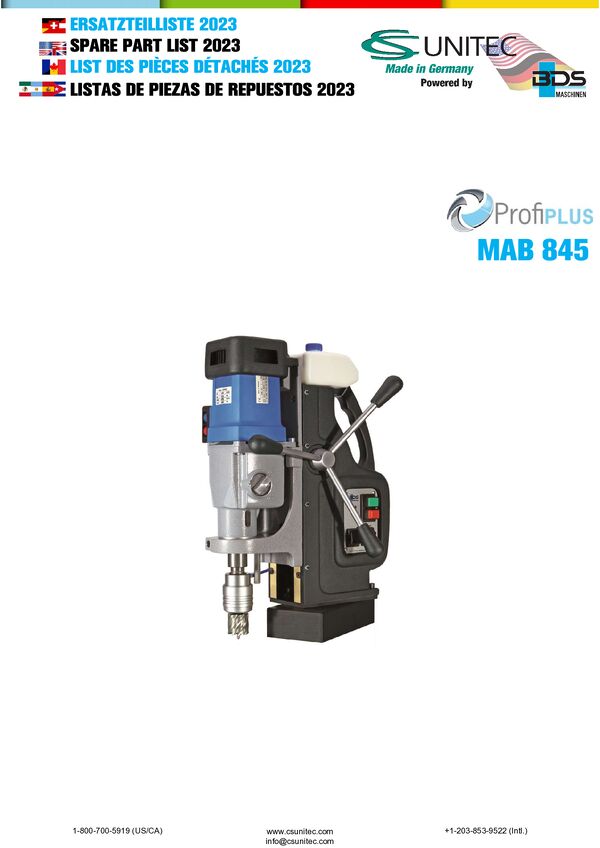

Product Schematic 2
SCHEM_MAB845
Download PDF

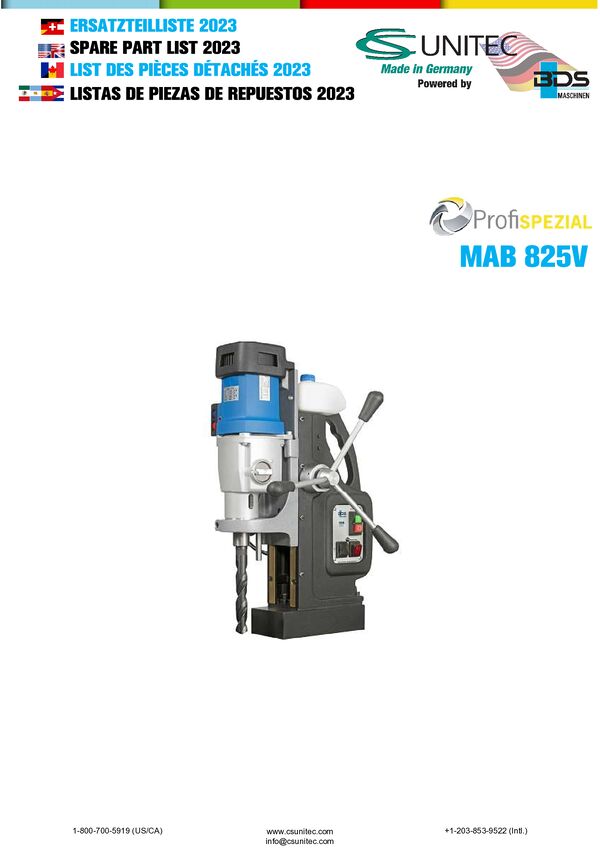

Product Schematic 3
SCHEM_MAB825V
Download PDF

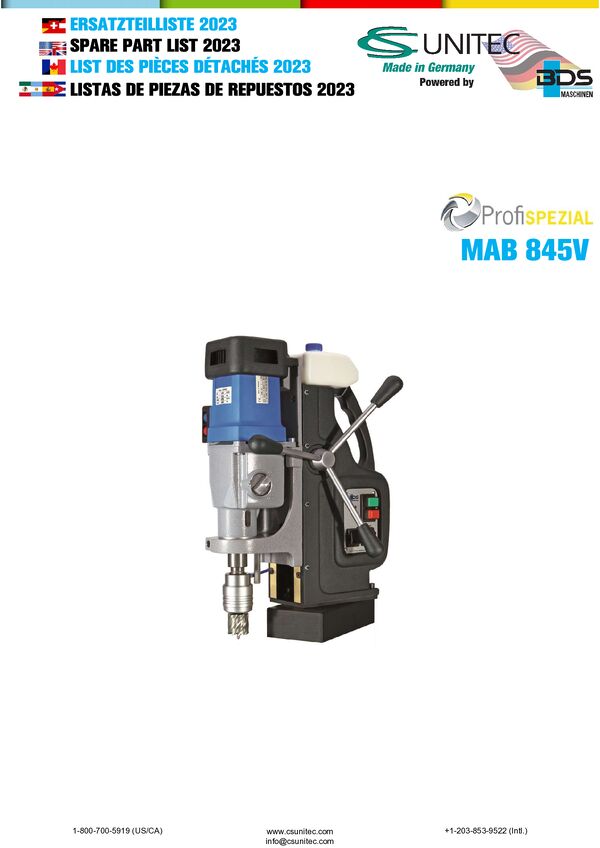

Product Schematic 4
SCHEM_MAB845V
Download PDF

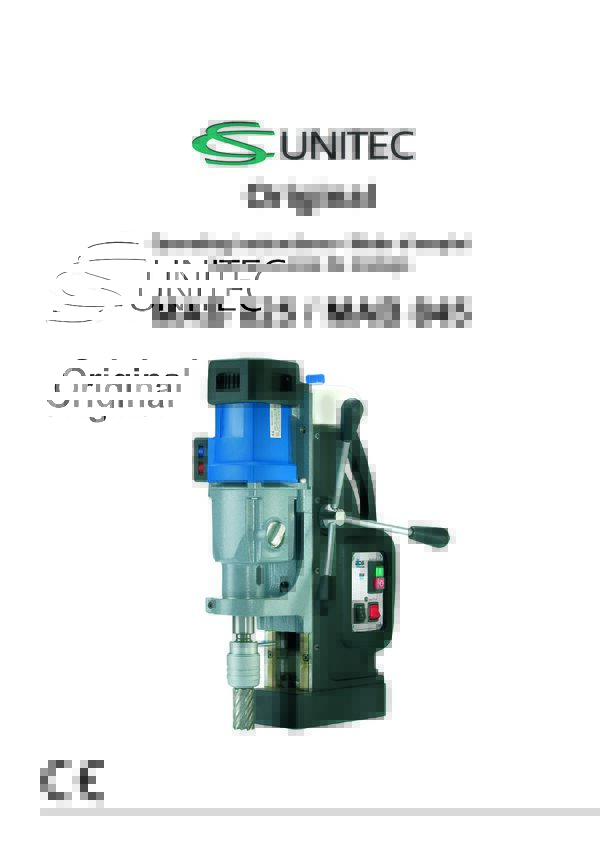

Operating Manual 1
MANUAL_MAB825845
Download PDF

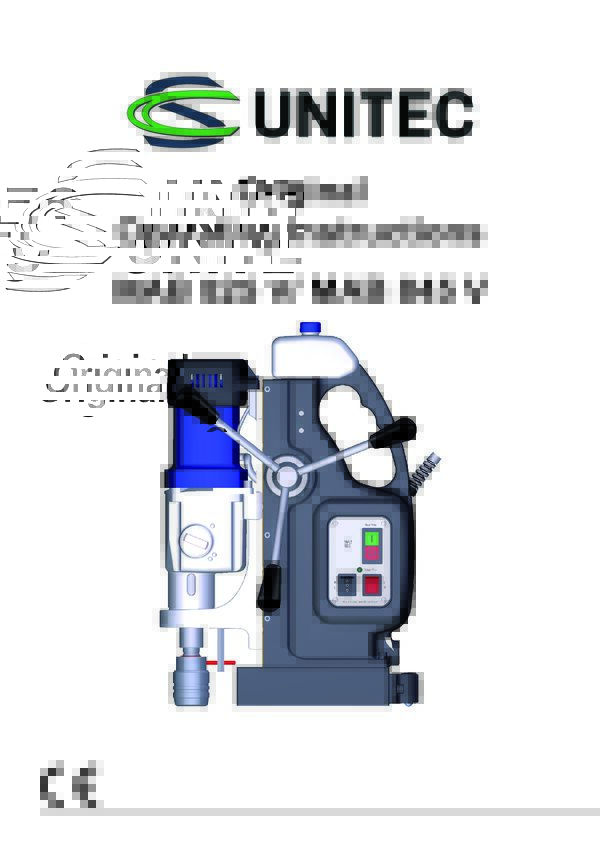

Operating Manual 2
MANUAL_MAB-825_845-V
Download PDF
