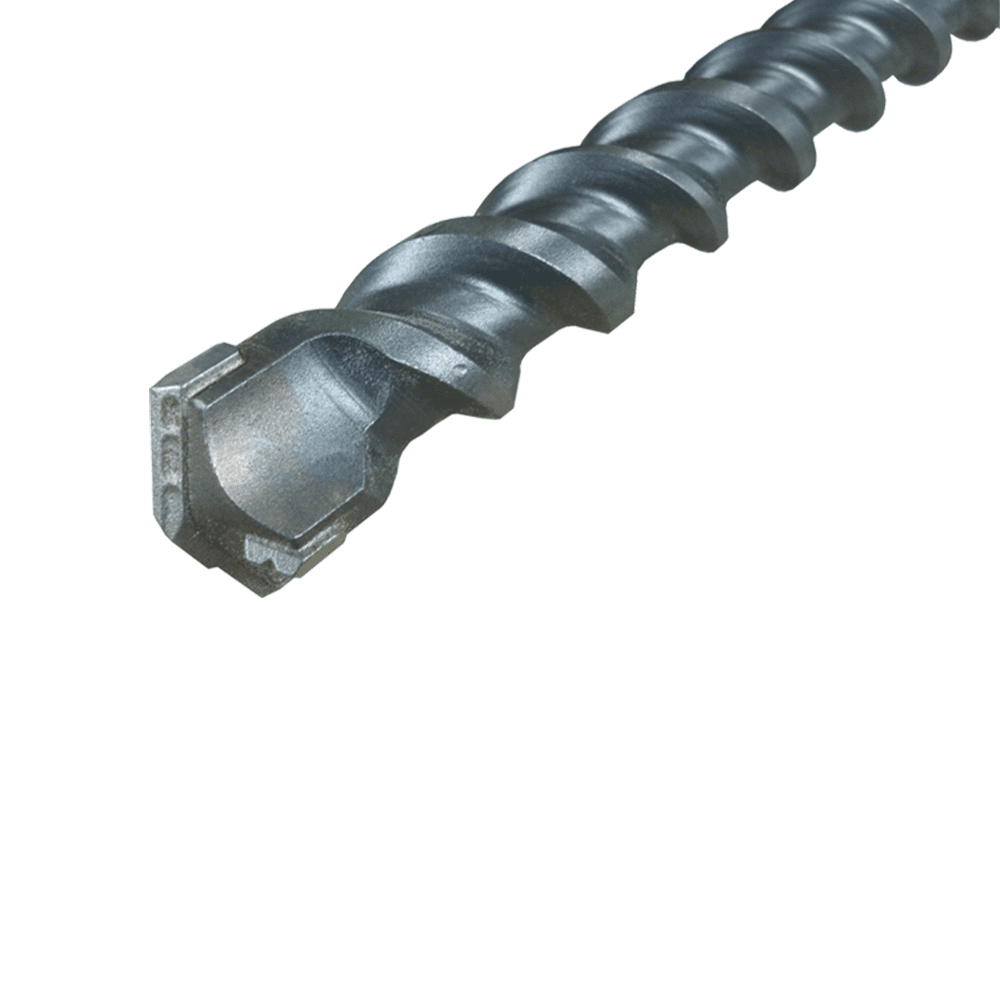

SDS Max Drill Bits
- Specially designed and manufactured to use in our 2″ Pneumatic Rotary Hammer Drills and our 2″ Hydraulic Rotary Hammer Drills.
- Diameters from 1″ – 1-3/8″; 8″ – 30-3/4″ usable lengths
- Extended drilling life
Includes (testing):
- SDS Max Drill Bit
Benefits
- Built from heat treated, high strength steel to withstand the high impact energy of SDS‑Max rotary hammers.
- Designed for long service life in tough, continuous use environments.
- SDS‑Max shank ensures a secure, high torque connection, maximizing hammer impact for faster drilling.
- Maximum performance and extended life providing a lower cost per job.
- Available in multiple sizes to support everything from small anchor holes to deep penetrations.
Applications & Usage
- SDS Max Drill Bits specially designed and manufactured to use in our 2″ Pneumatic Rotary Hammer Drills and our 2″ Hydraulic Rotary Hammer Drills.
- Engineered with high performance carbide tips for rapid penetration in concrete, masonry, and stone.
- Ideal for drilling anchor holes, dowel holes, penetrations, and fastener points in reinforced concrete, block, and brick.
- Used in warehouses, plants, commercial buildings, and structural concrete installations.
- Suitable for drilling into reinforced concrete decks, barriers, and structural elements.
Technical Specifications
| Part No. | Bit Dia. | Usable Length | Overall Length |
|---|---|---|---|
| MP 240 | 1" | 8" | 13-1/4" |
| MP 435 | 1" | 11-1/2" | 17" |
| MP 495 | 1-1/8" | 11-1/2" | 17" |
| MP 540 | 1-1/4" | 11-1/2" | 17" |
| MP 600 | 1-3/4" | 11-1/2" | 17" |
| MP 690 | 1-1/2" | 11-1/2" | 17" |
| MP 510 | 1-1/8" | 17" | 22-1/2" |
| MP 555 | 1-1/4" | 17" | 22-1/2" |
| MP 650 | 1-3/8" | 17" | 22-1/2" |
| MP 705 | 1-1/2" | 17" | 22-1/2" |
| MP 525 | 1-1/8" | 30-3/4" | 36-1/4" |
| MP 630 | 1-3/8" | 30-3/4" | 36-1/4" |
Related PDFs
Catalog PDF
CAT_Rotary_Hammer_Drills
Download PDF
Usage
- SDS Max Drill Bits specially designed and manufactured to use in our 2″ Pneumatic Rotary Hammer Drills and our 2″ Hydraulic Rotary Hammer Drills.
- Engineered with high performance carbide tips for rapid penetration in concrete, masonry, and stone.
- Ideal for drilling anchor holes, dowel holes, penetrations, and fastener points in reinforced concrete, block, and brick.
- Used in warehouses, plants, commercial buildings, and structural concrete installations.
- Suitable for drilling into reinforced concrete decks, barriers, and structural elements.
Benefits
- Built from heat treated, high strength steel to withstand the high impact energy of SDS‑Max rotary hammers.
- Designed for long service life in tough, continuous use environments.
- SDS‑Max shank ensures a secure, high torque connection, maximizing hammer impact for faster drilling.
- Maximum performance and extended life providing a lower cost per job.
- Available in multiple sizes to support everything from small anchor holes to deep penetrations.
Usage
- SDS Max Drill Bits specially designed and manufactured to use in our 2″ Pneumatic Rotary Hammer Drills and our 2″ Hydraulic Rotary Hammer Drills.
- Engineered with high performance carbide tips for rapid penetration in concrete, masonry, and stone.
- Ideal for drilling anchor holes, dowel holes, penetrations, and fastener points in reinforced concrete, block, and brick.
- Used in warehouses, plants, commercial buildings, and structural concrete installations.
- Suitable for drilling into reinforced concrete decks, barriers, and structural elements.
Benefits
- Built from heat treated, high strength steel to withstand the high impact energy of SDS‑Max rotary hammers.
- Designed for long service life in tough, continuous use environments.
- SDS‑Max shank ensures a secure, high torque connection, maximizing hammer impact for faster drilling.
- Maximum performance and extended life providing a lower cost per job.
- Available in multiple sizes to support everything from small anchor holes to deep penetrations.
