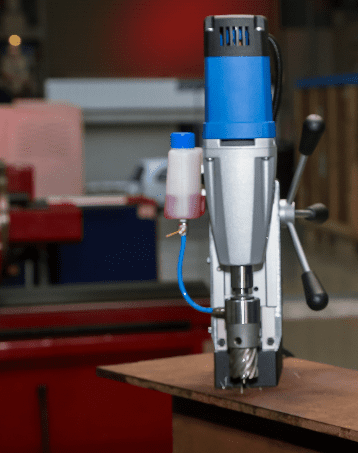

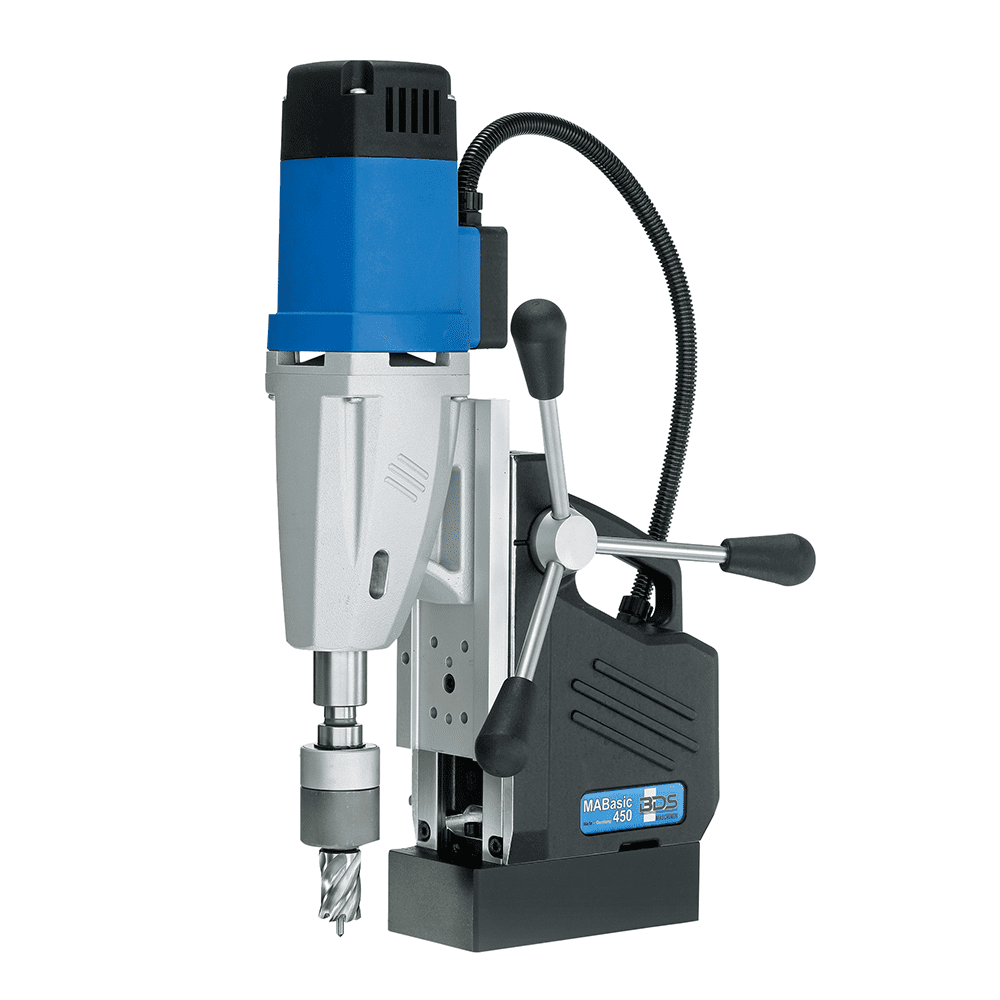

MABasic 450
- Cutting Capacity: 1-3/4″ Diameter
- Twist Drill Capacity: 3/4″ Diameter
- Stroke: 6-1/3″
- Morse Taper: MT2
- Speed: 250/450 RPM (2 gears)
- Magnetic Force: 3080 lbs.
- Equipped with Electronic Safety Shutoff Sensor
Includes (testing):
- MABasic 450
- Auto chuck cutter holder
- 1/2″ geared chuck
- Pilot pin
- Lubrication bottle
- Carrying case
- Safety strap
- Carabin hook
- Allen keys
- Operating manual
- Warranty certificate
Benefits
- Two speed gearbox (250 / 450 RPM) provides the right balance of torque and speed for both annular cutters and twist drills.
- Ergonomic, compact design improves maneuverability and reduces operator fatigue during field or overhead work.

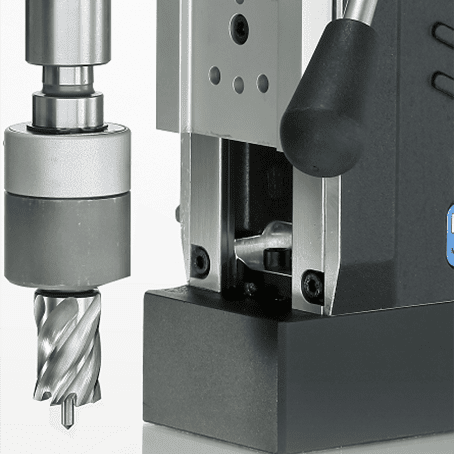

- 3/4" direct arbor with automatic cooling.
- Integrated lubrication system ensures smooth drilling, reduced heat, and extended cutter life.

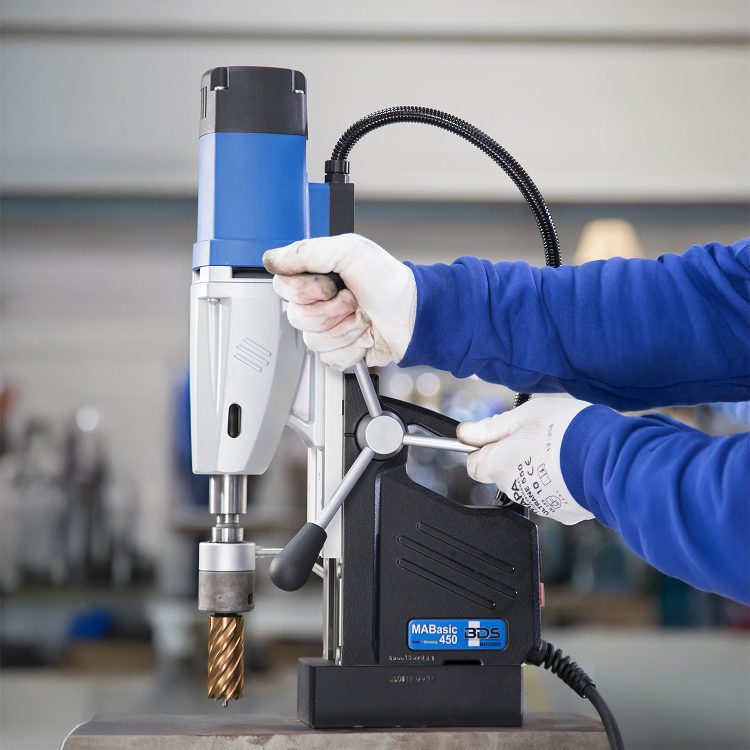

- Ergonomic arrangement of controls for one-handed operation. Simple, user friendly controls make it easy to operate for both new and experienced technicians.
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
Applications & Usage

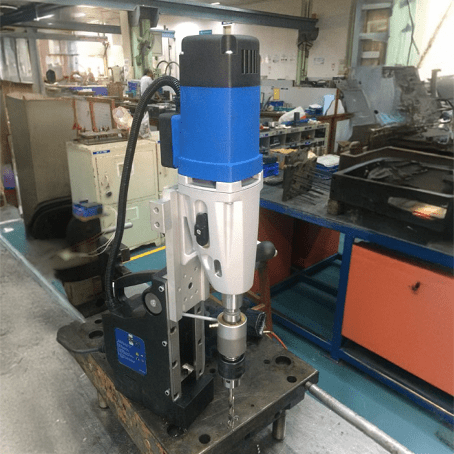

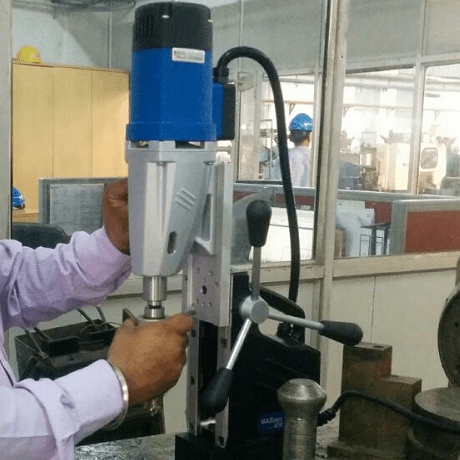

- MABasic 450 for onsite drilling for equipment repair, retrofits, and facility maintenance.
- Useful in plants, warehouses, and industrial buildings.
- Portable design makes it easy to carry between job sites or elevated work areas.
- Drilling mounting holes for conduit supports, cable trays, HVAC brackets, and mechanical systems.
- Vertical and horizontal drilling on I‑beams, channels, and steel frameworks.
- Suitable for installing brackets, supports, and bolted connections.
Technical Specifications
| MABasic 450 | |
|---|---|
| Motor Power | 10.5 Amp / 110 Volt |
| Weight | 29 lbs. |
| Stroke | 6-1/3" |
| Hole Capacity | 1-3/4" dia. |
| Twist Drill Capacity | 3/4" dia. |
| Speeds | 250/450 RPM (2 gears) |
| Magnet Base Size | 6-5/8" L x 3-1/3" W |
| Dimensions | 17" H x 9-1/2" L x 6-1/2" W |
| Magnetic Force (1" plate) | 3080 lbs. |
| Arbor Bore | 3/4" Weldon Shank |
| Spindle | MT2 |
| Internal Lubrication | Oil Bottle Included |
Optional Accessories
Optional
Optional
Optional
OptionalConnection: 3 flats x 3/4" arbor • Size: 2 1/8" length, 1/2" shank
$0.00
In stock
Optional
OptionalRelated PDFs
Catalog PDF
CAT_MABasic450
Download PDF

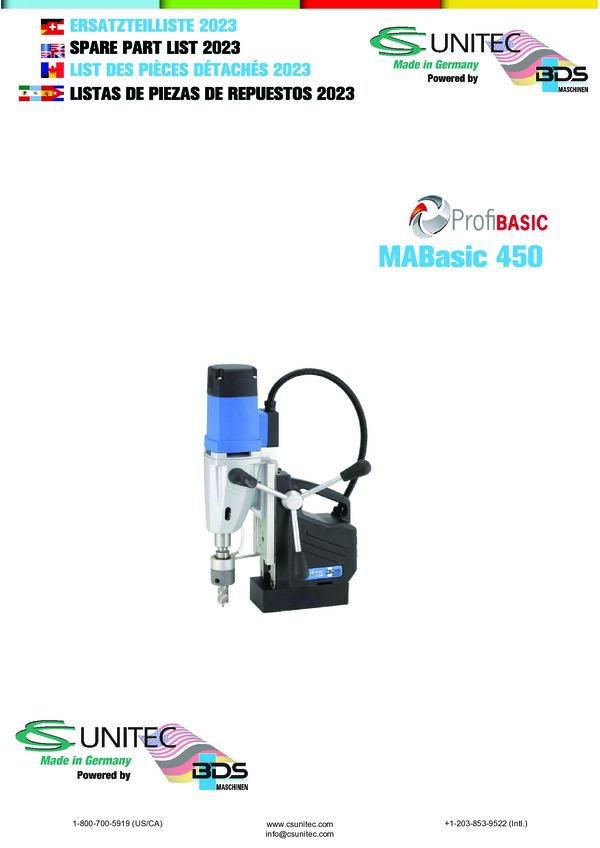

Product Schematic
SCHEM_MABasic450
Download PDF
Operating Manual
MANUAL_MABasic
Download PDF
