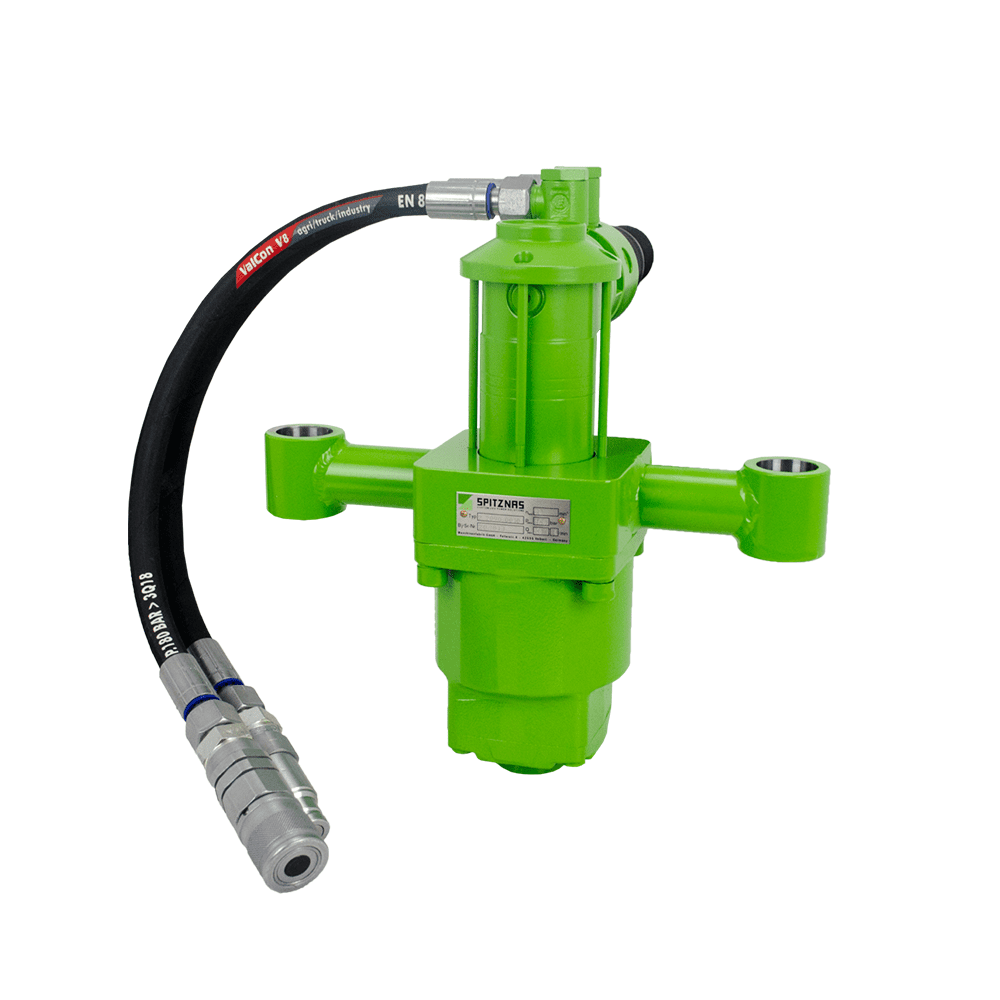

Hydraulic Drive Unit
- Load Speed: Up to 20 RPM
- Stall Torque: Up to 1550 ft-lbs. (at 90 PSI)
- Motor Power: Up to 3.5 HP
- Whip hoses & FF Couplings included
Includes (testing):
- Hydraulic Drive Unit
Benefits
- Provides consistent, stall resistant output for drilling and reaming through thick, high strength materials.
- Integrated torque reaction stabilizers counteract torque forces during heavy drilling, improving operator control and reducing kickback.
- Hydraulic operation eliminates electrical hazards and maintains steady power even in wet, dirty, or remote locations.
- Compact, portable power source designed for field use, allowing operators to power drilling tools in tight spaces or elevated positions.
Applications & Usage
- Hydraulic Drive Unit ideal for special driving and tapping applications, including hot tapping pipe.
- Powering drilling and reaming tools for holes in beams, girders, and heavy steel assemblies.
- Reliable performance in wet, corrosive, or confined environments where electric tools are impractical.
- Driving heavy duty drills and reamers through thick, high strength metals used in rigs, platforms, and mining machinery.
- Suitable for powering portable drilling systems, tapping tools, and specialized cutting equipment.
Technical Specifications
Oil Flow (GPM) = 4-13 | Oil Pressure (PSI) = 1000 | 1/2" FF Quick Connection Couplers
| Hydraulic Drive Units | ||
| Spec / Model | 2 2090 0010 | 2 2810 0010 |
|---|---|---|
| Square Drive | 3/4" F | 1-1/8" F |
| Stall Torque at 90 PSI (ft-lbs.) | 376 | 1550 |
| Free Speed (RPM | 40 | 24 |
| Load Speed (RPM) | 20 | 12 |
| Power (HP) | 1.5 | 3.5 |
| Side to Center Distance | 2.2" | 3.6" |
| Weight | 28 lbs. | 77 lbs. |
Optional Accessories
OptionalRelated PDFs
Catalog PDF 1

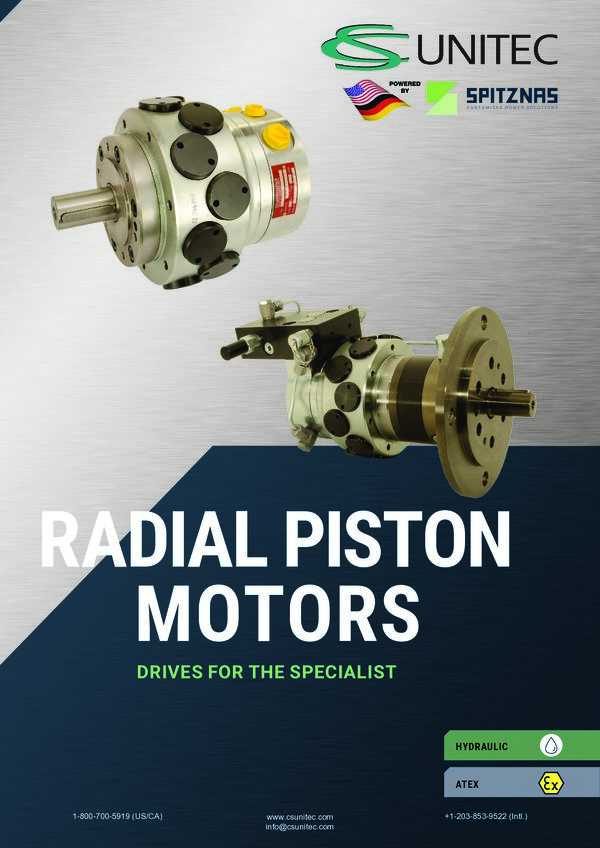

FLY_Radial_Piston_Motor
Download PDF
Catalog PDF 2

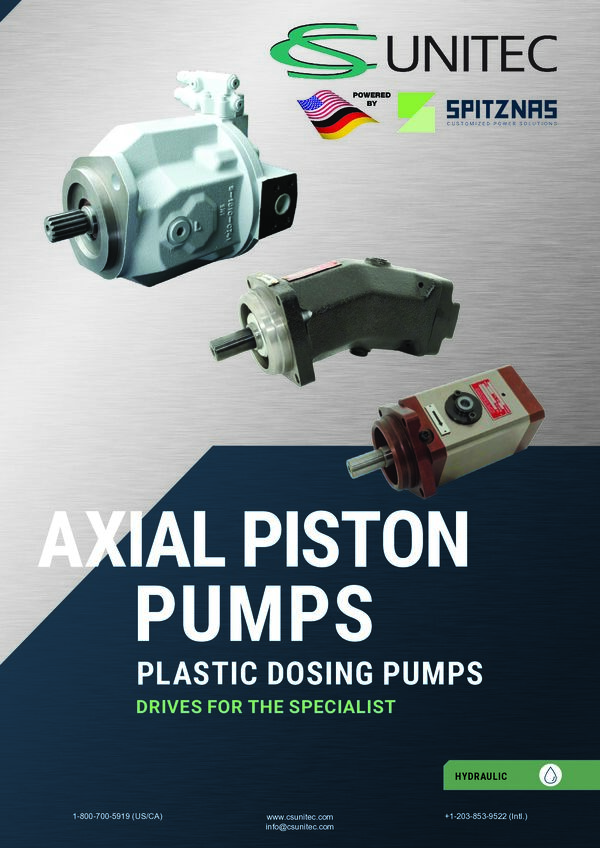

FLY_Axial_Piston
