MAB 455 & MAB 455 SB
- Cutting Capacity: 2-1/16″ Diameter
- Twist Drill Capacity: 7/8″ Diameter
- Stroke: 6-1/3″
- Morse Taper: MT2
- Speeds (RPM): 250 | 450
- Magnetic Force: 3750 lbs.
- Keyless quick change chuck system
- Equipped with Electronic Safety Shutoff Sensor
- Optional swivel base model available:
- MAB 455 SB
- MAB 455 or MAB 455 SB
- Quick Change Arbor System KEYLESS, Weldon 3/4"
- Manual Arbor with Set of Screws, Weldon 3/4", MT2
- 1" Pilot Pin
- 2" Pilot Pin
- Safety Chain
- Drift Key MT2 (P/N 1960002)
- Warranty Certificate
- Plastic Carrying Case
- Operating Manual
- Auto Lubrication
- Safety Strap
- Carbin Hook
- Allen Key
Benefits
- Annular cutting capacity up to 2-1/16" diameter provides excellent versatility for medium to heavy duty hole-making.
- Powerful 10.5 Amp motor delivers strong, reliable drilling performance for structural steel, fabrication, and industrial applications.
- Internal cable routing for damage reduction.
- Simple, ergonomic arrangement of controls for one-handed operation.
- Safety Features:
- SafeMag™: green/red LED magnetic force indicator for safe operation.
- CoolMag™: magnet overheating protection.
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
Applications & Usage
- MAB 455 & 455 SB drills holes in structural steel, plate, beams, and fabricated assemblies.
- Vertical, horizontal, and overhead drilling on I‑beams, columns, and steel frameworks.
- On‑site drilling for equipment repair, retrofits, and plant maintenance.
- Useful in industrial facilities, refineries, and power plants.
- Drilling mounting holes for piping, conduit supports, HVAC brackets, and mechanical systems.
- Suitable for heavy duty installations requiring precise hole placement.
- Portable design makes it ideal for technicians who need a reliable magnetic drill for multi‑location or remote work.
- See Recommended Speed and Feed Charts for Annular Cutters
Technical Specifications
| Item ID: MAB 455 | |
| Motor Power | 10.5 Amp / 110 Volt |
| Weight | 29 lbs. |
| Stroke | 6-1/3" |
| Hole Capacity | 2-1/16" dia. |
| Twist Drill Capacity | 7/8" dia. |
| Speeds | 250/450 RPM (2 gears) |
| Magnet Base Size | 6-5/8" H x 3-1/3" W |
| Dimensions | 17-1/4" H x 11-5/8" L x 7" W |
| Magnetic Force (1" plate) | 3750 lbs. |
| Arbor Bore | 3/4" Weldon Shank |
| Spindle | MT2 |
| Automatic Lubrication | Included |
| MAB 455 SB (Swivel Base) | Motor Power | 10.5 Amp / 110 Volt |
|---|---|
| Weight | 29 lbs. |
| Stroke | 6-1/3" |
| Hole Capacity | 2-1/16" dia. |
| Twist Drill Capacity | 7/8" dia. |
| Speeds | 250/450 RPM (2 gears) |
| Swivel Base | Included |
| Magnet Base Size | 6-5/8" H x 3-1/3" W |
| Dimensions | 17-1/4" H x 11-5/8" L x 7" W |
| Magnetic Force (1" plate) | 3750 lbs. |
| Arbor Bore | 3/4" Weldon Shank |
| Spindle | MT2 |
| Automatic Lubrication | Included |

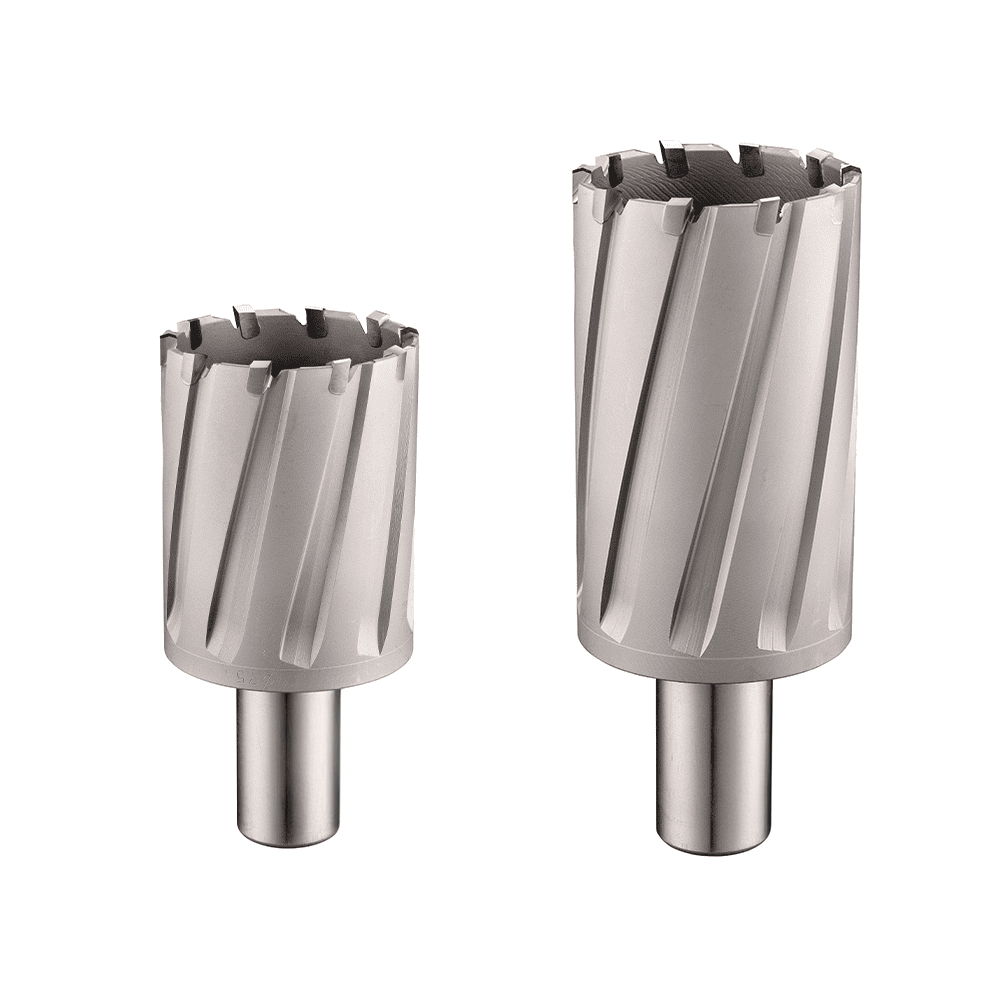

Optional Accessories
Optional
OptionalDiameter: Kit • Depth: 2 3/8"
$0.00
In stock
Optional
OptionalConnection: 3 flats x 3/4" arbor • Size: 2 1/8" length, 1/2" shank
$0.00
In stock
Optional
OptionalRelated PDFs
Catalog PDF
CAT_MAB455
Download PDF
Product Schematic 1
SCHEM_MAB455
Download PDF

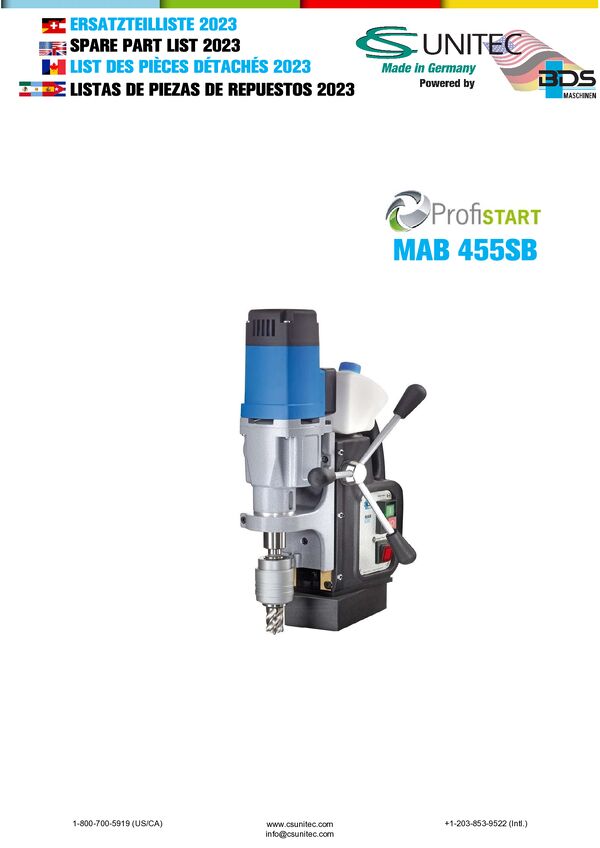

Product Schematic 2
SCHEM_MAB455SB
Download PDF

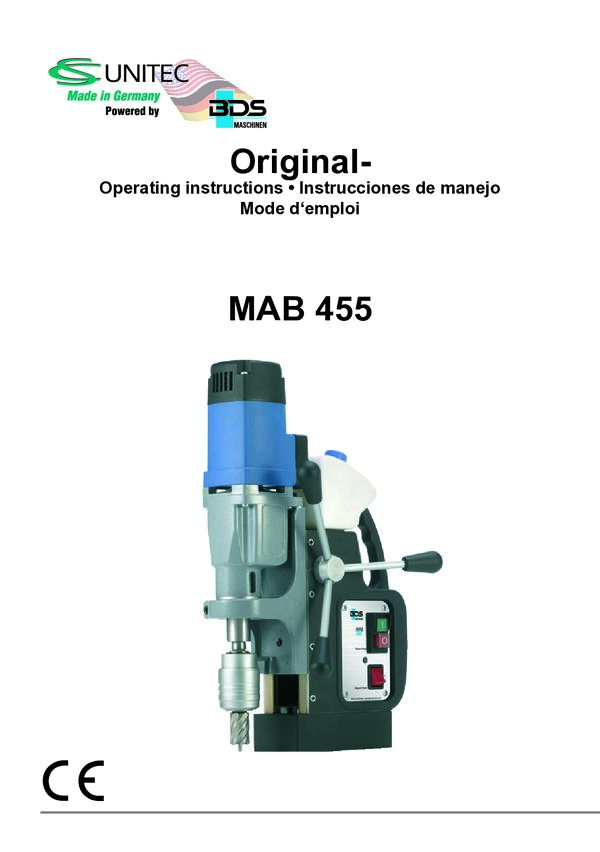

Operating Manual 1
MANUAL_MAB455
Download PDF
Operating Manual 2
MANUAL_MABSB
Download PDF
Usage
- MAB 455 & 455 SB drills holes in structural steel, plate, beams, and fabricated assemblies.
- Vertical, horizontal, and overhead drilling on I‑beams, columns, and steel frameworks.
- On‑site drilling for equipment repair, retrofits, and plant maintenance.
- Useful in industrial facilities, refineries, and power plants.
- Drilling mounting holes for piping, conduit supports, HVAC brackets, and mechanical systems.
- Suitable for heavy duty installations requiring precise hole placement.
- Portable design makes it ideal for technicians who need a reliable magnetic drill for multi‑location or remote work.
- See Recommended Speed and Feed Charts for Annular Cutters
