Air Woodboring Drill
- Drilling Capacity: Up to 3″ dia. (wood)
- Reversible: Yes
- 3 Models: 380 / 700 / 750 RPM
- Motor Power: 3 HP
- Optional Geared Chucks Available
- Suitable for underwater applications
Includes (testing):
- Pneumatic Woodboring Drill
Benefits
- Thrust bearing support increases tool longevity and ensures smooth, efficient drilling under load.
- Lever throttle and durable spur gearing provide precise speed control and long term durability.
- Breast plate and dead handle included for improved operator stability and reduced fatigue during heavy drilling.
- Threaded exhaust port supports safe air management and accessory compatibility.
- Air powered design eliminates electrical hazards, making the tool safe for underwater and wet environment use.
- Optional underwater air tool line conditioner helps prevent rust and corrosion, extending motor life in harsh conditions.
Applications & Usage
- Air Woodboring Drill designed for heavy duty woodboring in industrial, marine, and construction environments.
- Ideal for underwater drilling in marine timbers, docks, pilings, and submerged structures.
- Suitable for railroad repair work, including timber tie maintenance and field service tasks.
- Effective for deep wood drilling using long reach woodboring bits from 12″ to 36″ lengths.
- Compatible with reversible drilling applications requiring controlled forward and reverse operation.
- Use underwater with Air Tool Line Conditioner P/N MS 9105
Technical Specifications
| Model No. 2 1903 0010 | |
|---|---|
| Capacity in Wood | 1" diameter |
| Reversible | Yes |
| Power | 2 HP |
| Chuck Style | 1/2" woodboring |
| Spindle | Stub Taper |
| Free Speed | 750 RPM |
| Recommended Hose Size | 1/2" |
| Overall Height | 17-1/2" |
| Weight | 14-1/2 lbs. |
| Air Inlet Thread | 1/2" ID |
| Air Exhaust Thread | 1/2" NPT |
| Air Consumption at 90 PSI | 39 CFM |
| Optional Geared Drill Chuck | Part no. DE-99C |
| Model No. 2 1924 0010 | |
|---|---|
| Capacity in Wood | 2" diameter |
| Reversible | Yes |
| Power | 3 HP |
| Chuck Style | 1/2" woodboring |
| Spindle | #2 Morse Taper |
| Free Speed | 700 RPM |
| Recommended Hose Size | 1/2" |
| Overall Height | 18-1/2" |
| Weight | 24-3/4 lbs. |
| Air Inlet Thread | 1/2" ID |
| Air Exhaust Thread | 1/2" NPT |
| Air Consumption at 90 PSI | 39 CFM |
| Optional Geared Drill Chuck | Part no. IBC 22 (MT2) |
| Model No. 2 1932 0010 N | |
|---|---|
| Capacity in Wood | 3" diameter |
| Reversible | Yes |
| Power | 3 HP |
| Chuck Style | 1/2" woodboring |
| Spindle | #3 Morse Taper |
| Free Speed | 380 RPM |
| Recommended Hose Size | 1/2" |
| Overall Height | 18-1/2" |
| Weight | 23-3/4 lbs. |
| Air Inlet Thread | 1/2" ID |
| Air Exhaust Thread | 1/2" NPT |
| Air Consumption at 90 PSI | 39 CFM |
| Optional Geared Drill Chuck | Part no. IBC 21 (MT3) |
| * Optional underwater air tool line conditioner to displace moisture. Developed to inhibit rust and corrosion of air motors. 1 quart/liter. Part No. MS 9105. | |
Optional Accessories
OptionalProduct: Conditoner/underwater air tool oil • Size Quantity: 5 l
$0.00
In stock
OptionalRelated PDFs
Catalog PDF
CAT_Woodboring_Drills
Download PDF

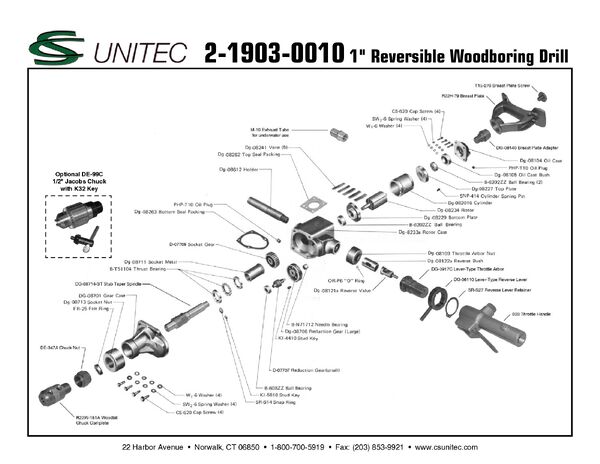

Product Schematic 1
SCHEM_219030010
Download PDF

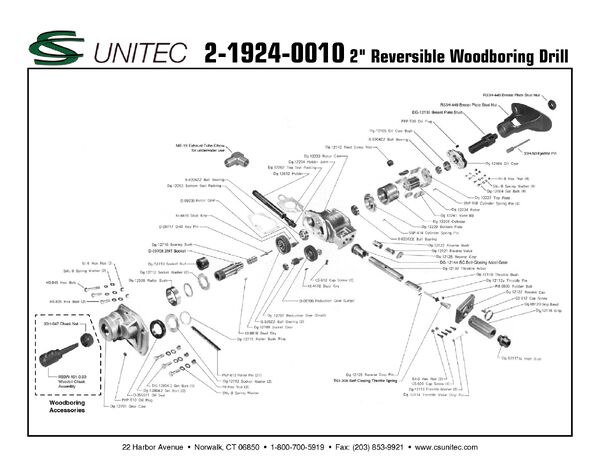

Product Schematic 2
SCHEM_219240010
Download PDF
Usage
- Air Woodboring Drill designed for heavy duty woodboring in industrial, marine, and construction environments.
- Ideal for underwater drilling in marine timbers, docks, pilings, and submerged structures.
- Suitable for railroad repair work, including timber tie maintenance and field service tasks.
- Effective for deep wood drilling using long reach woodboring bits from 12″ to 36″ lengths.
- Compatible with reversible drilling applications requiring controlled forward and reverse operation.
- Use underwater with Air Tool Line Conditioner P/N MS 9105
